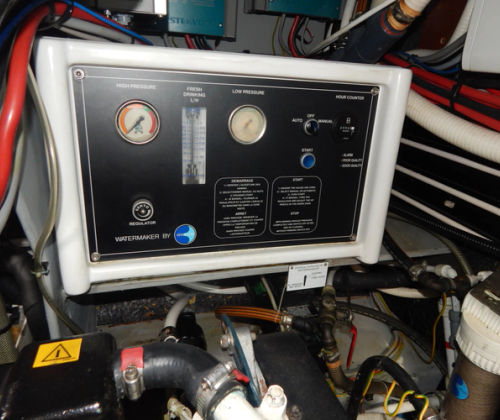

  • Water maker –220v , 62 gph… (240 ltr/hr)- located in engine room w/ controls in Galley


  • Raw water system – Poly tubing with diaphragm pump and washdown outlet


  • Fresh water system – Fiberglass tank, 238 gal. Diaphragm pump with poly tubing, individual spigots are valved


  • Isotherm water heater located in engine room


  • A pressure regulated shore water inlet is located at stern of vessel


  • Gray water System – Vessel is set up with a center line hose drain that leads to sump/bilge in engine room and drains via main bilge pump


  • Black Water System – (3) Jabsco Quite Flush electric heads. (3) plastic tanks hold 21 gal each. Tanks are gravity drained for overboard discharge –


  • A diaphragm high capacity Electric bilge pump w/float switch is located in sump in engine room


  • Manual bilge pump control in cockpit




•

  • Serious Blue Water cruiser with 5 watertight compartments


  • Cutter/Keth for maximum sail options in all conditions

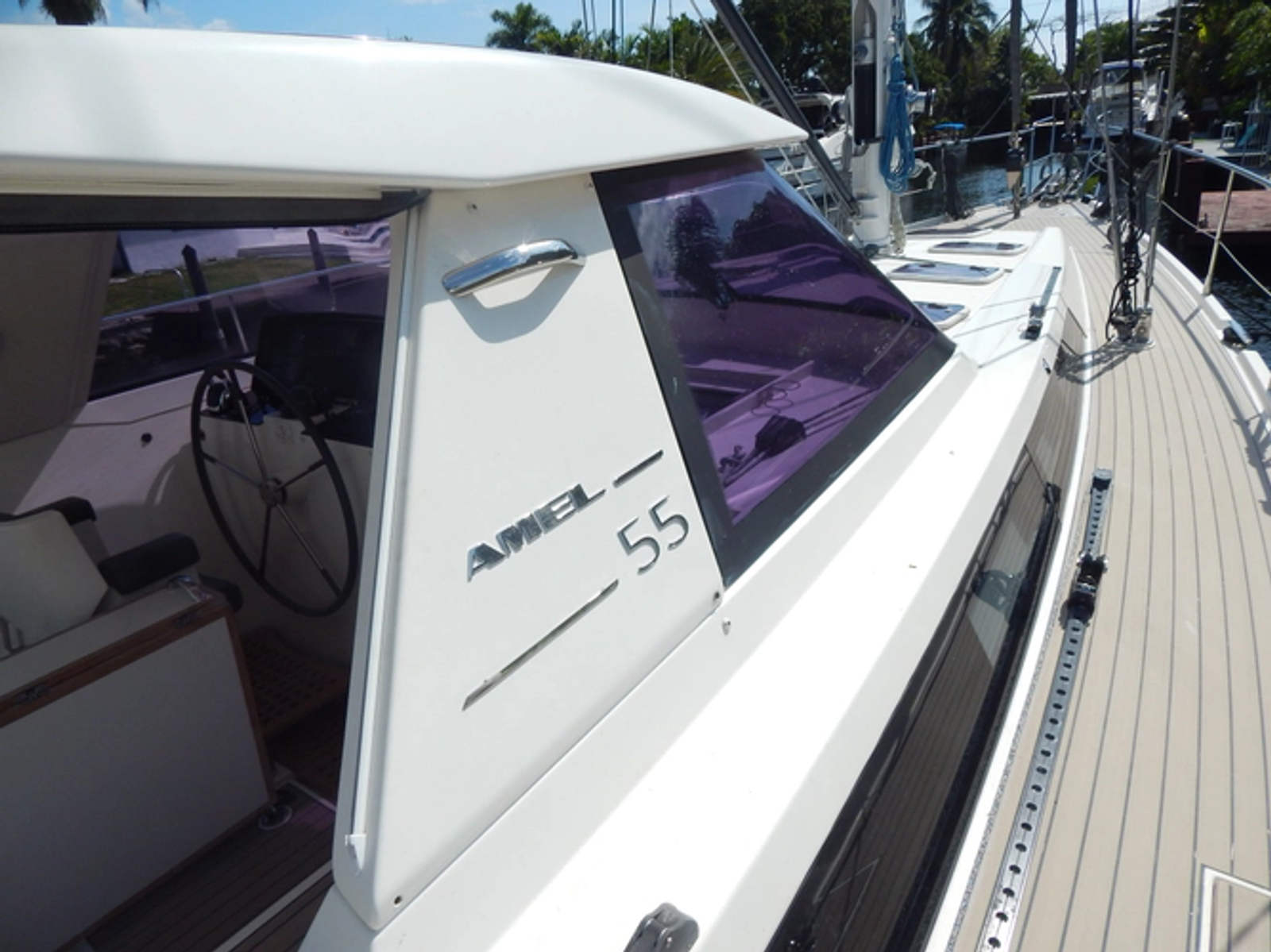

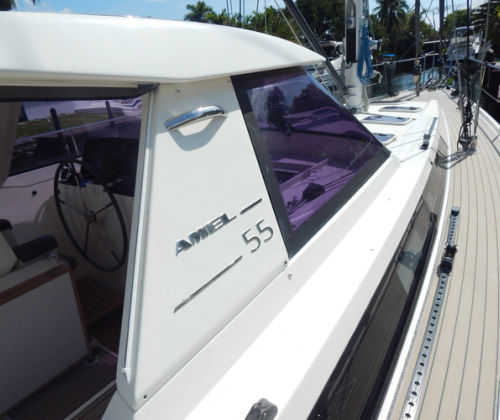

  • Huge center cockpit, fully protected by hard dodger and top


  • Walk in engine room with easy access to all equipment

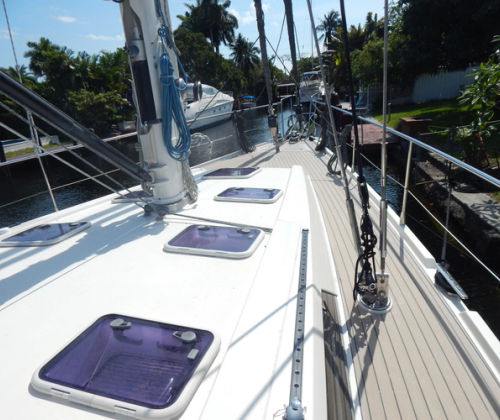

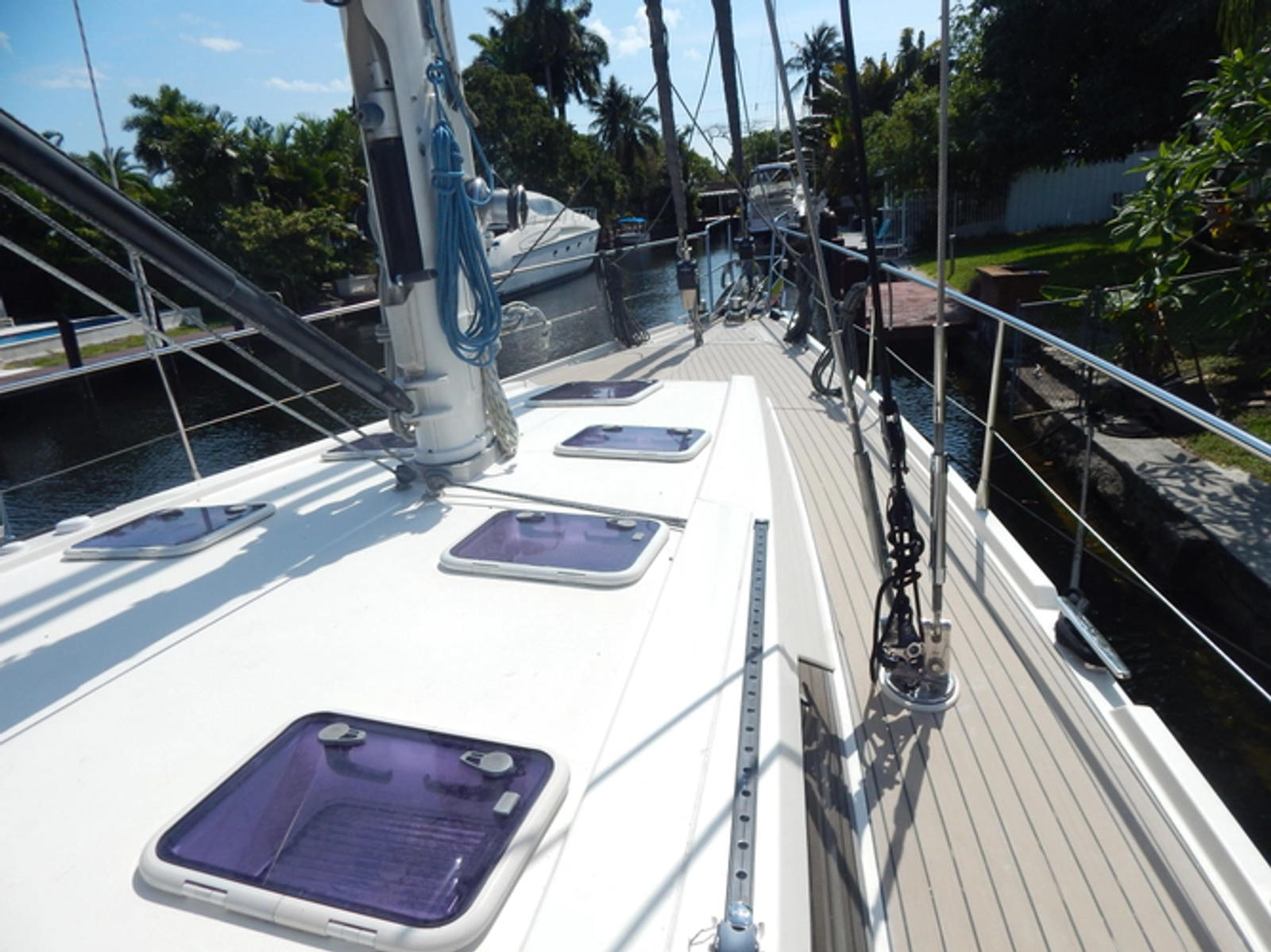

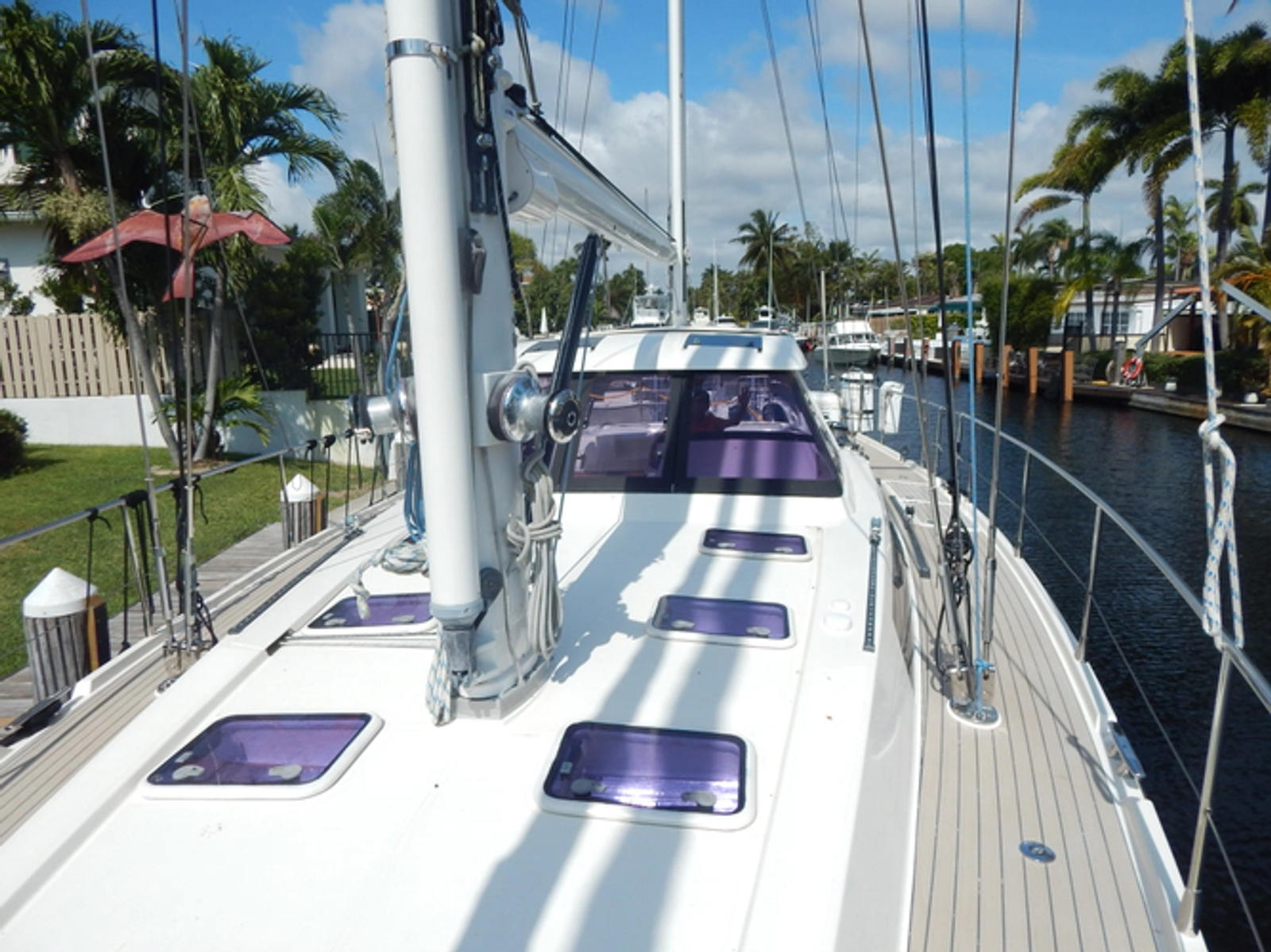

  • Fiberglass decks finished in a teak- look non-skid pattern and color


  • Large drop-down swim platform – folds back into transom


  • All electric sail handling controls – and electric sheet winches,


  • Twin master en-suite cabins, both with centerline double berths, plus (2) separate single berths, and separate day head


  • Interior wiring and outlets for both 120v and 230v service


  • Furling gears greased and New seals


  • Rope cutter added on propeller shaft


  • Anchor and swivel upgraded to 45kg/100lb ULTRA anchor


  • New- Highfield 340 tender (11 ft) and New 20 hp Yamaha outboard


  • New membranes in desalinator


  • Generator heat exchanger cleaned – new exhaust elbow


  • NEW Victron 3000w inverter


  • Full set of awnings and cockpit enclosure


  • New furling motors for both Main Sail and Mizzen Sail ( 2023)


  • New Air conditioning system (2023)


  • Engine - major service and NEW injectors (2023)






•

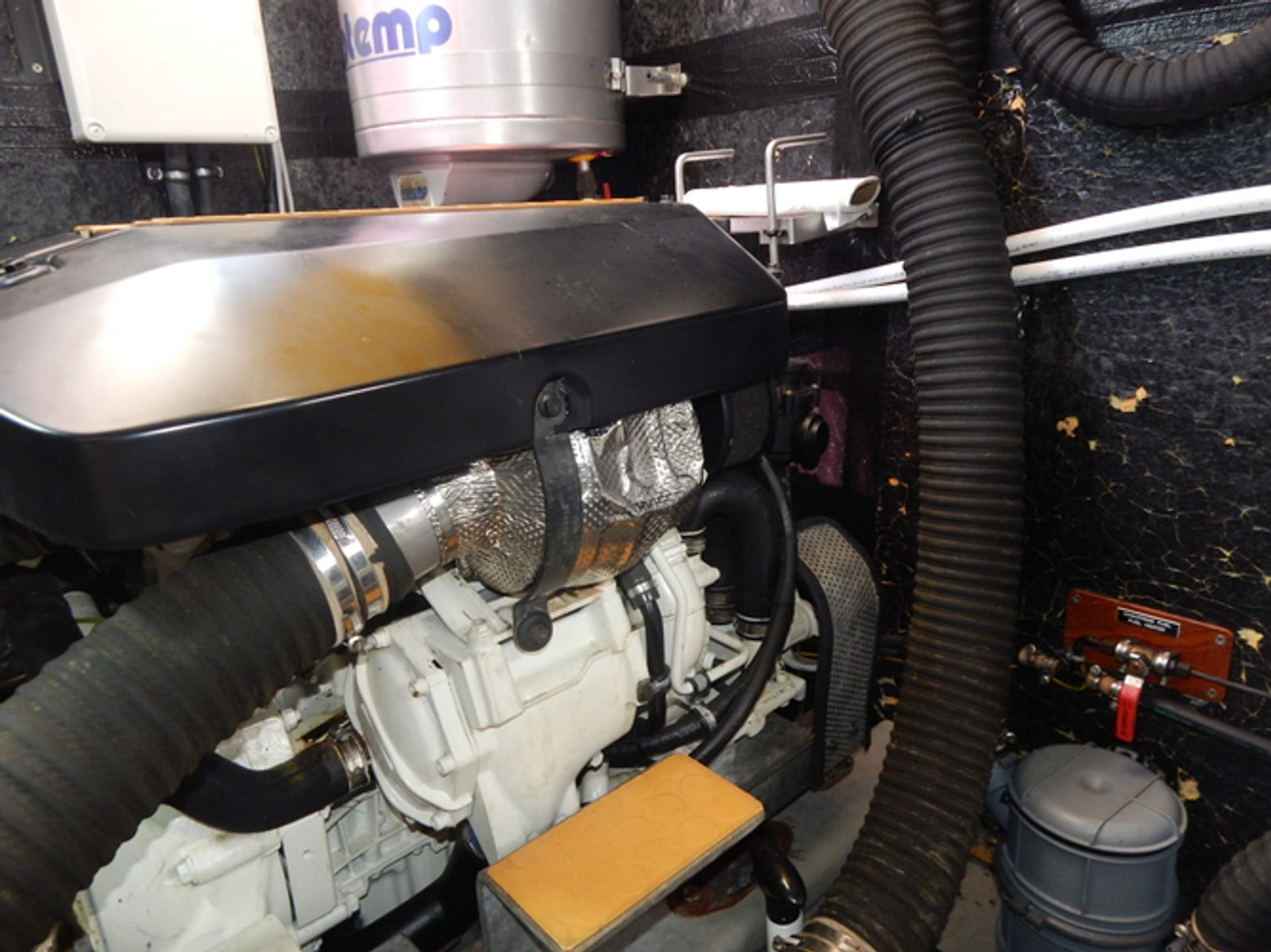

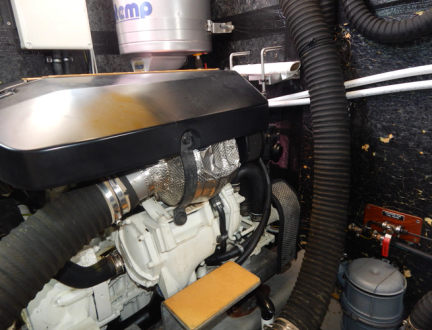

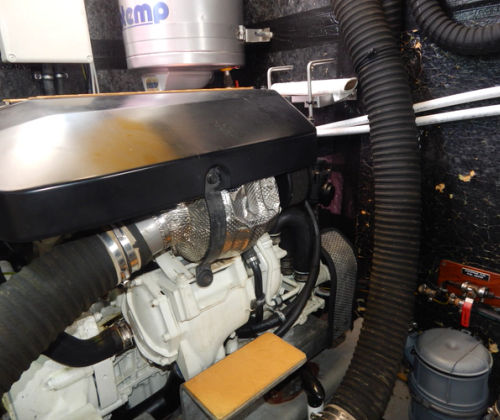

  • Engine … Volvo Penta D3-1101-G.. 110 hp ( 1195 hrs)


  • Alternator- 175 Amp 24v high output


  • Transmission – ZF- ZF25


  • Volvo digital engine display panel at helm with ability to scroll thru different engine information, and Volvo digital tachometer gauge


  • Fuel tank is stainless steel – 238 gal.

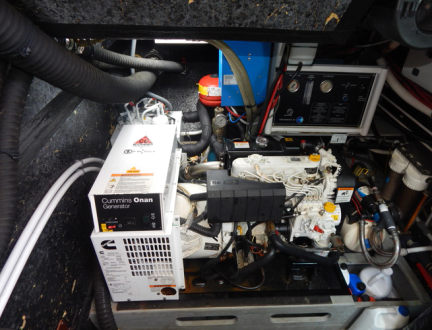

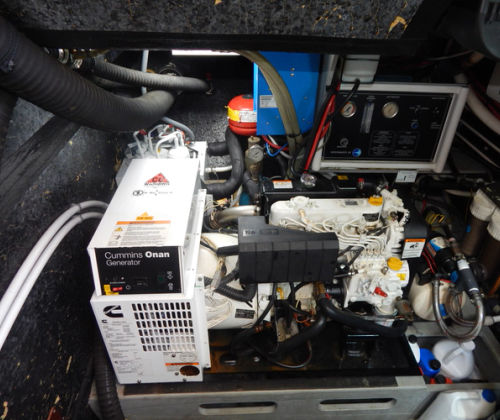

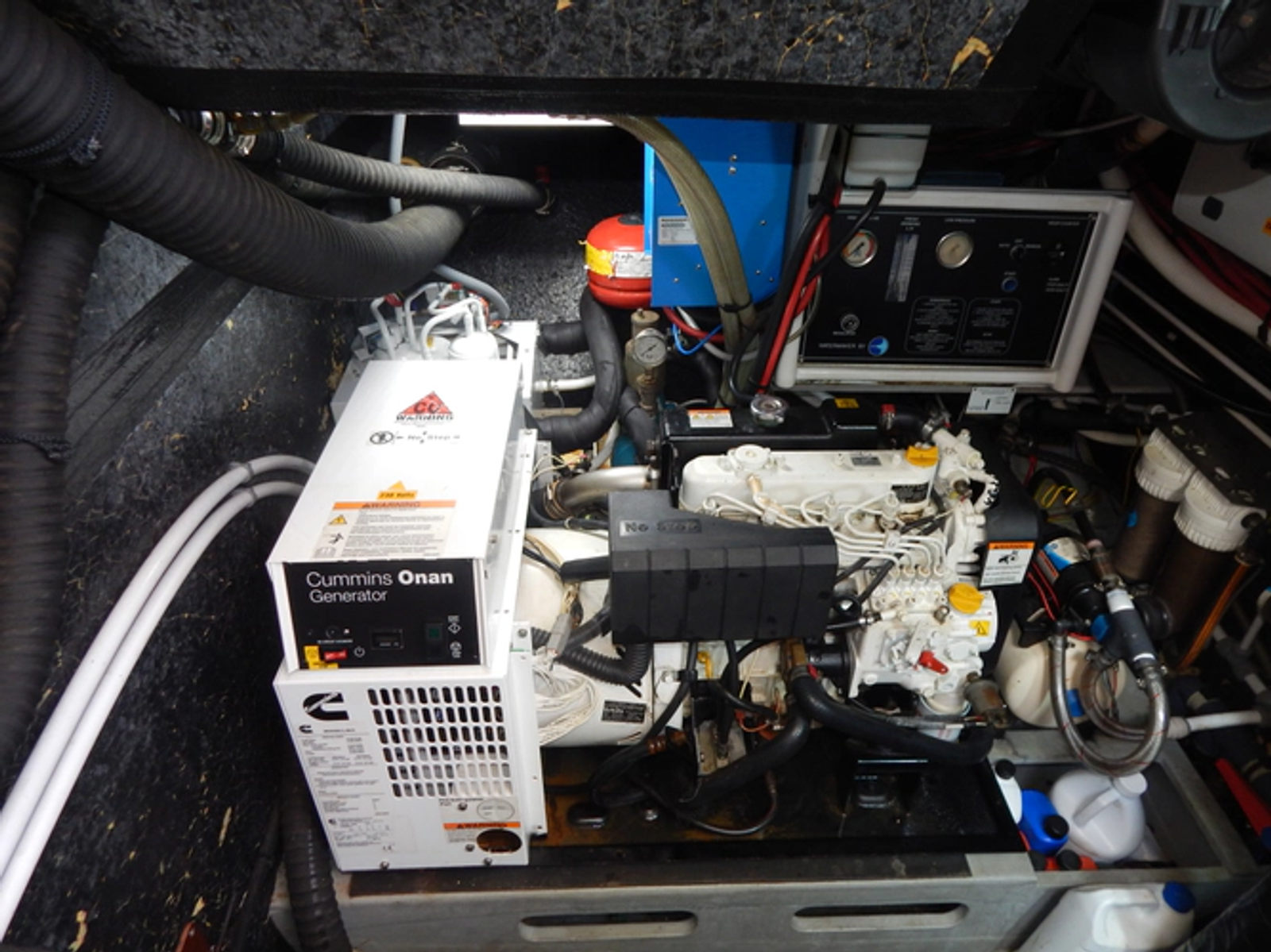

  • Generator - Onan 11MDKBN 11KW 220V (1318 hrs)

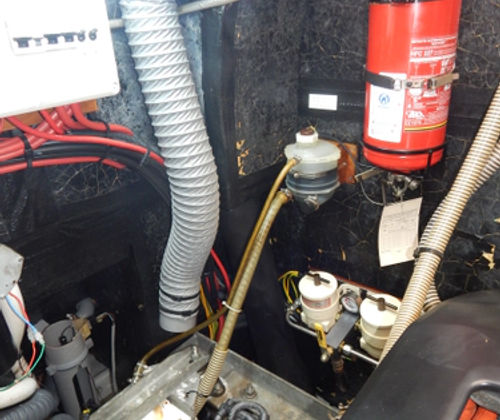

  • Racor primary fuel filter/water separator and OEM secondary fuel filter


  • Cooling – closed circuit cooling system – raw water fed to heat exchanger to cool the coolant circulating around engine.


  • Blower – 3” flange blower is connected to the ignition of the main engine


  • Propeller – 3 blade ffolding bronze prop


  • Bow Thruster – fully retractable into the hull of the vessel – motor rebuilt (2023)


  • Steering is controlled with pull cables from helm rack to rudder quadrant


  • AIR CONDITIONING –


  • (3) Climma HVAC systems w/ circulation pump in engine room


  • Forward unit – 13,000 BTU forward cabin


  • Salon system is 13,000 BTU


  • Aft unit is 13,000 BTU located in aft master cabin


  • All units can be operated by mounted controls or handheld remote


  • All units have Heat and Cool modes and are dual voltage 50/60 hz, 220v




•

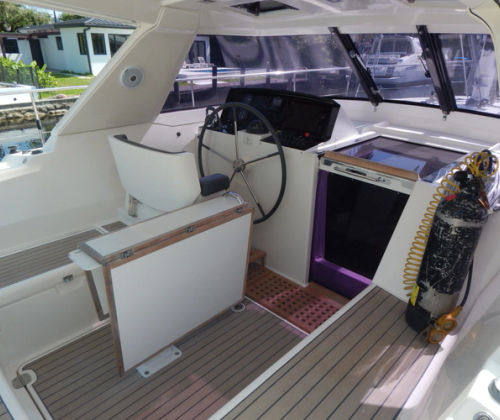

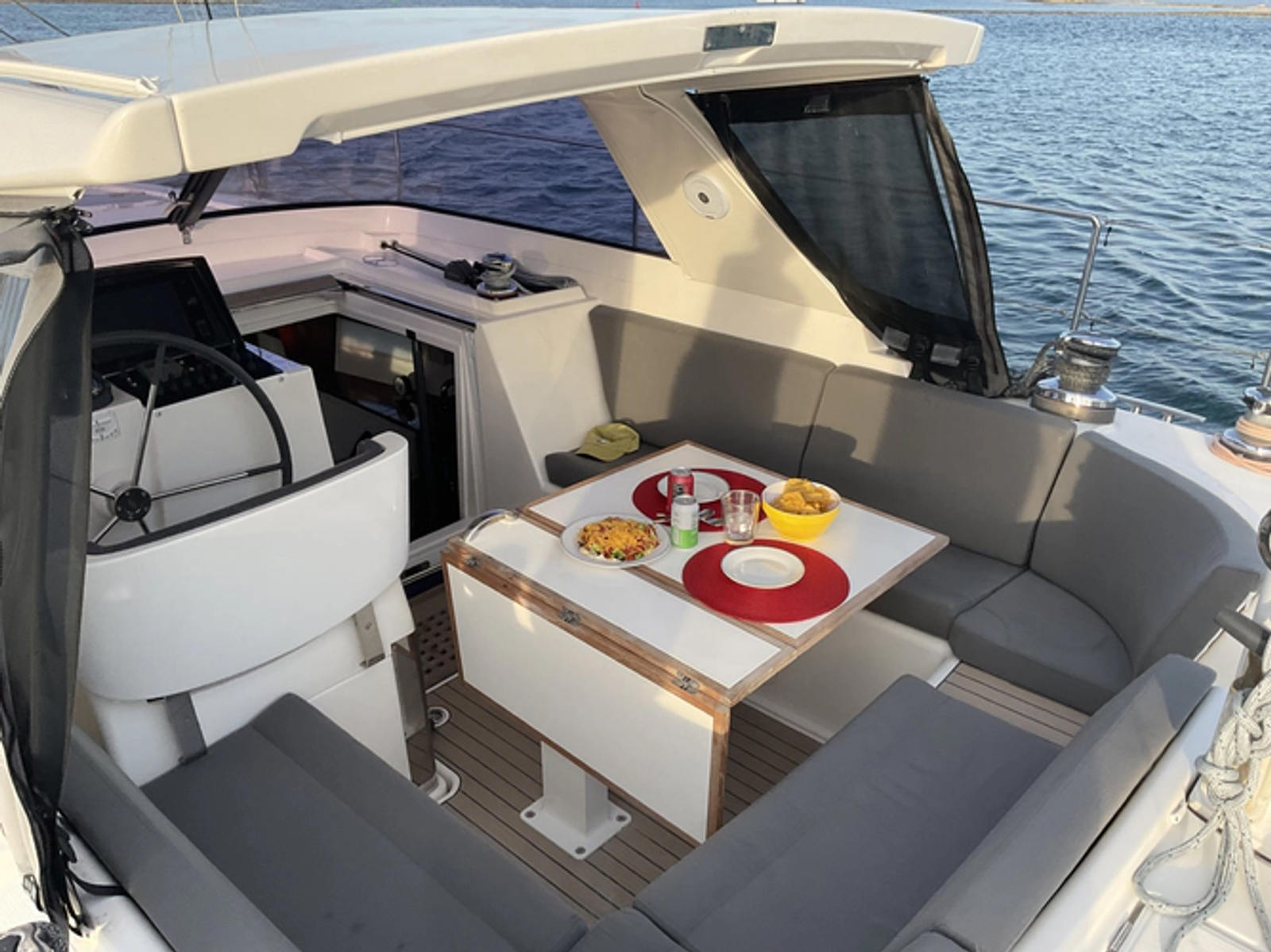

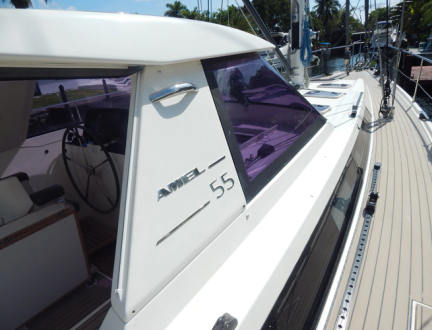

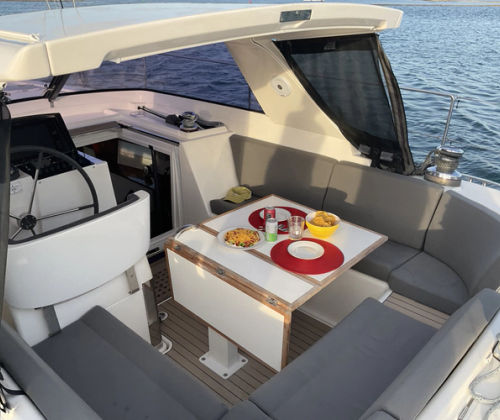

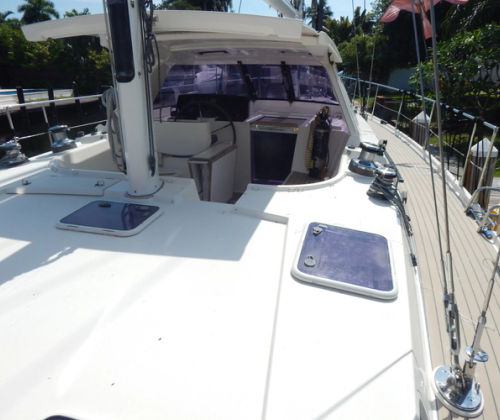

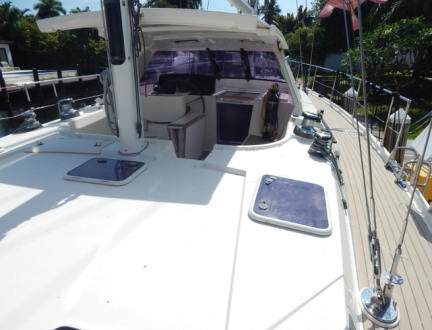

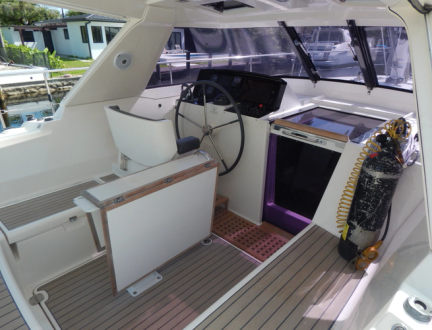

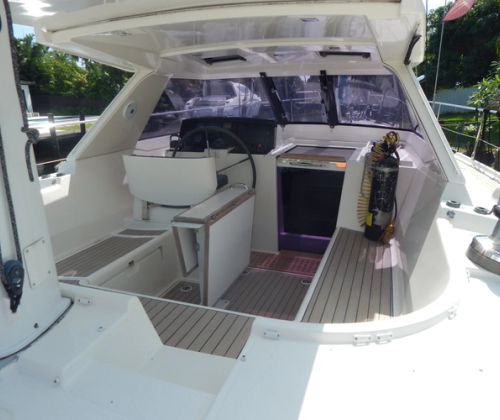

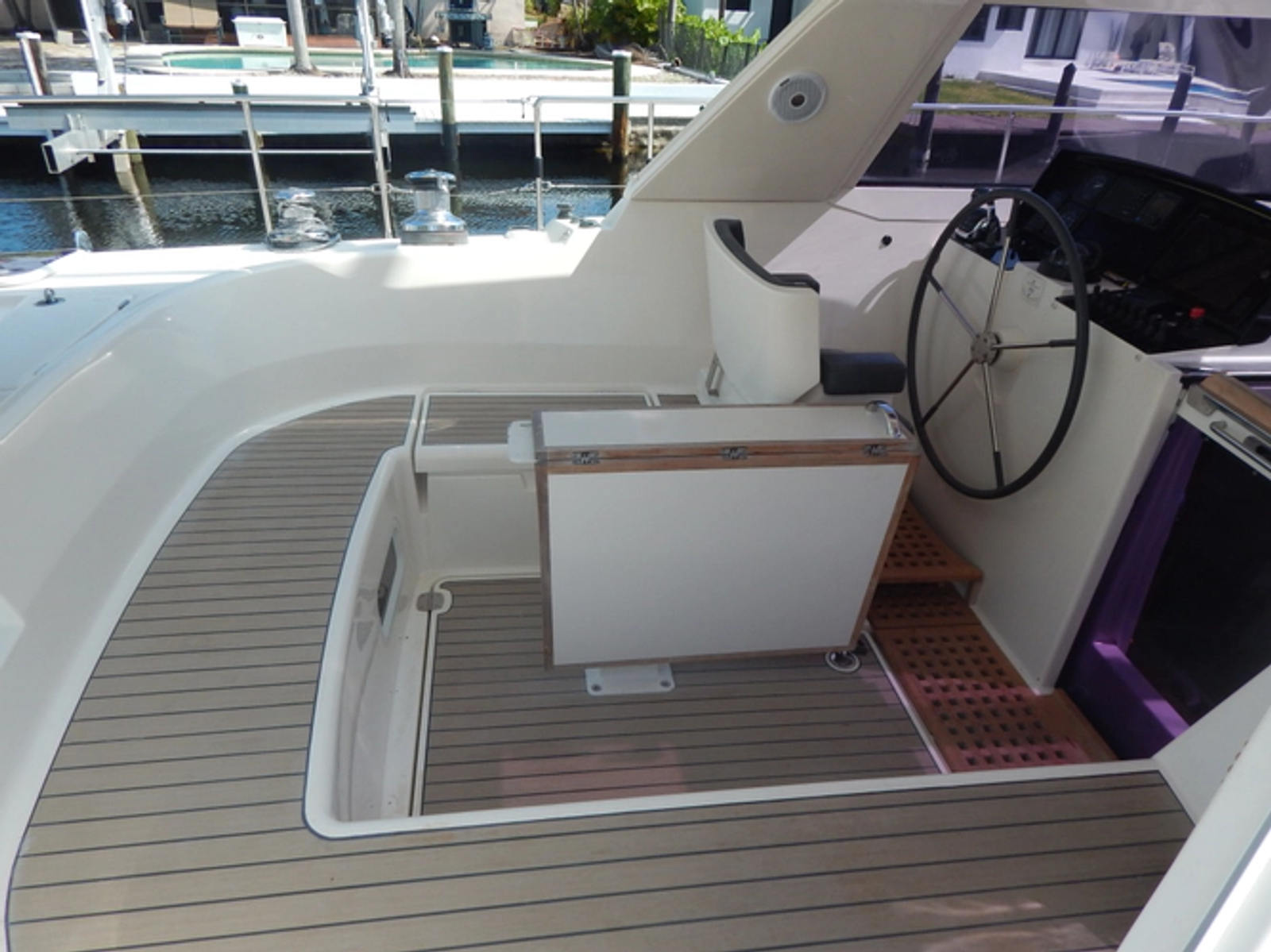

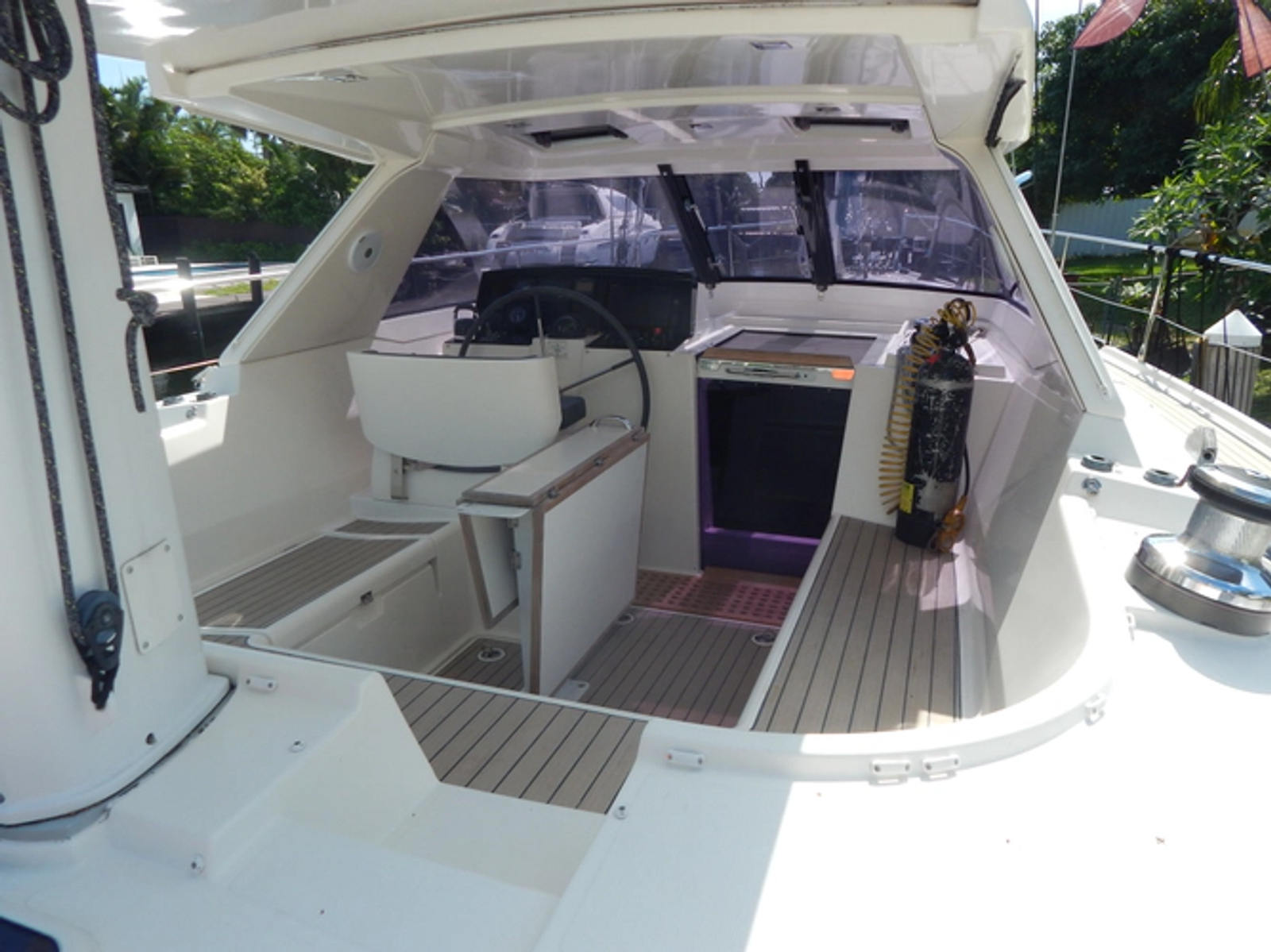

  • Center cockpit has fixed hardtop and dodger protecting the helm, and sliding fiberglass top over the rest of cockpit

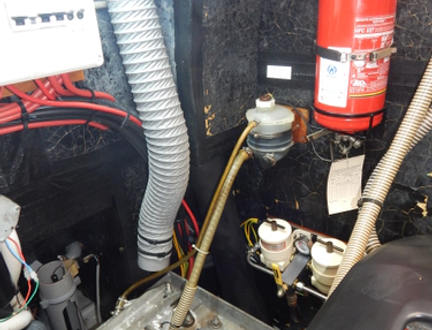

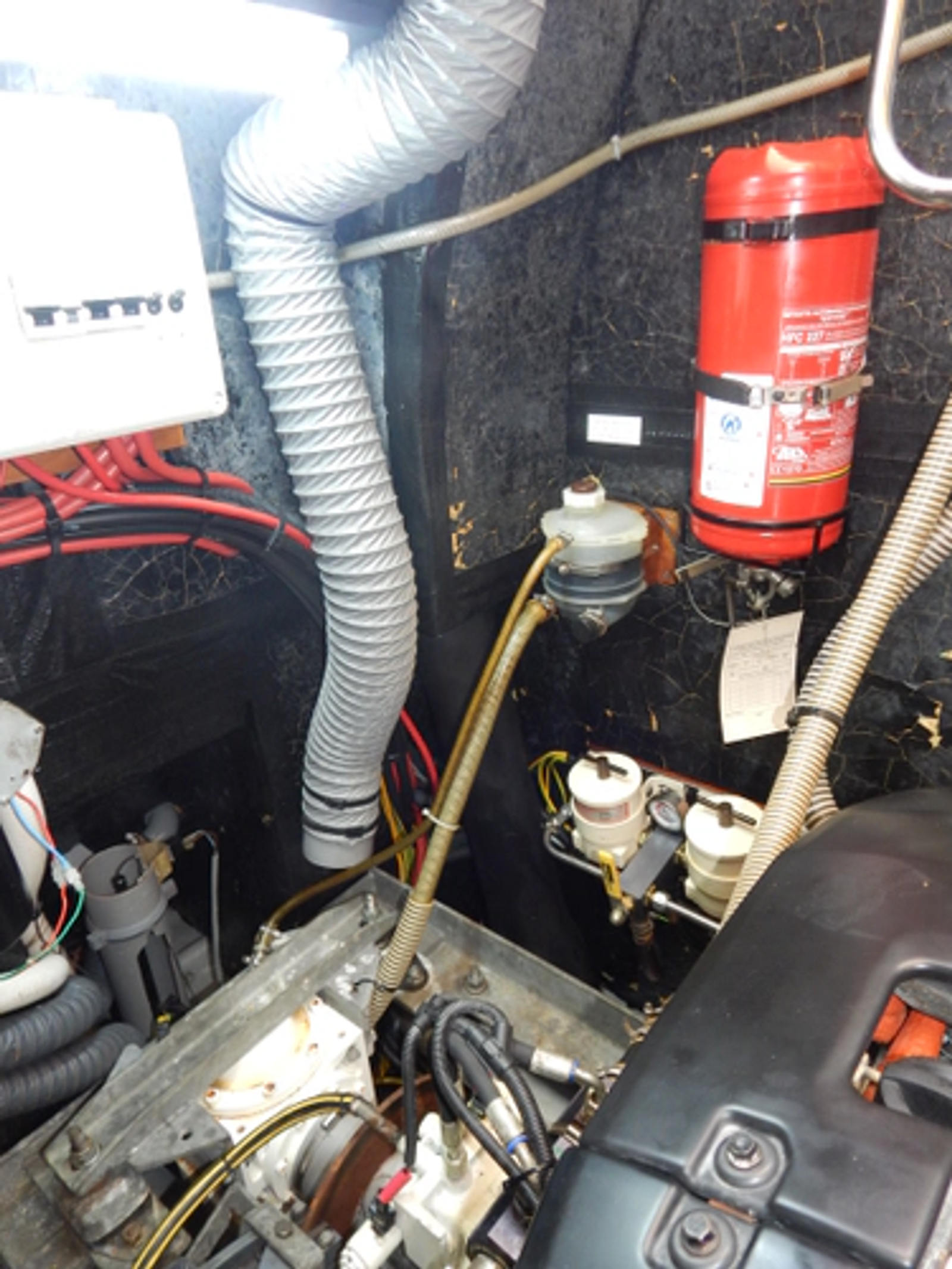

  • ENGINE ROOM is accessed by lifting the cockpit floor – on hydraulic hinge and riser. It is well laid out and houses the main engine, generator, water maker components, inverters, battery chargers, air conditioning pump, fresh and sale water pumps, bilge pumps, and majority of mechanical components. Fixed fire suppression system.

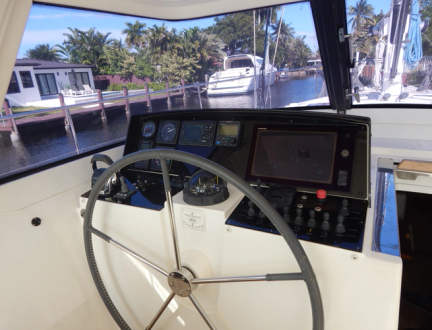

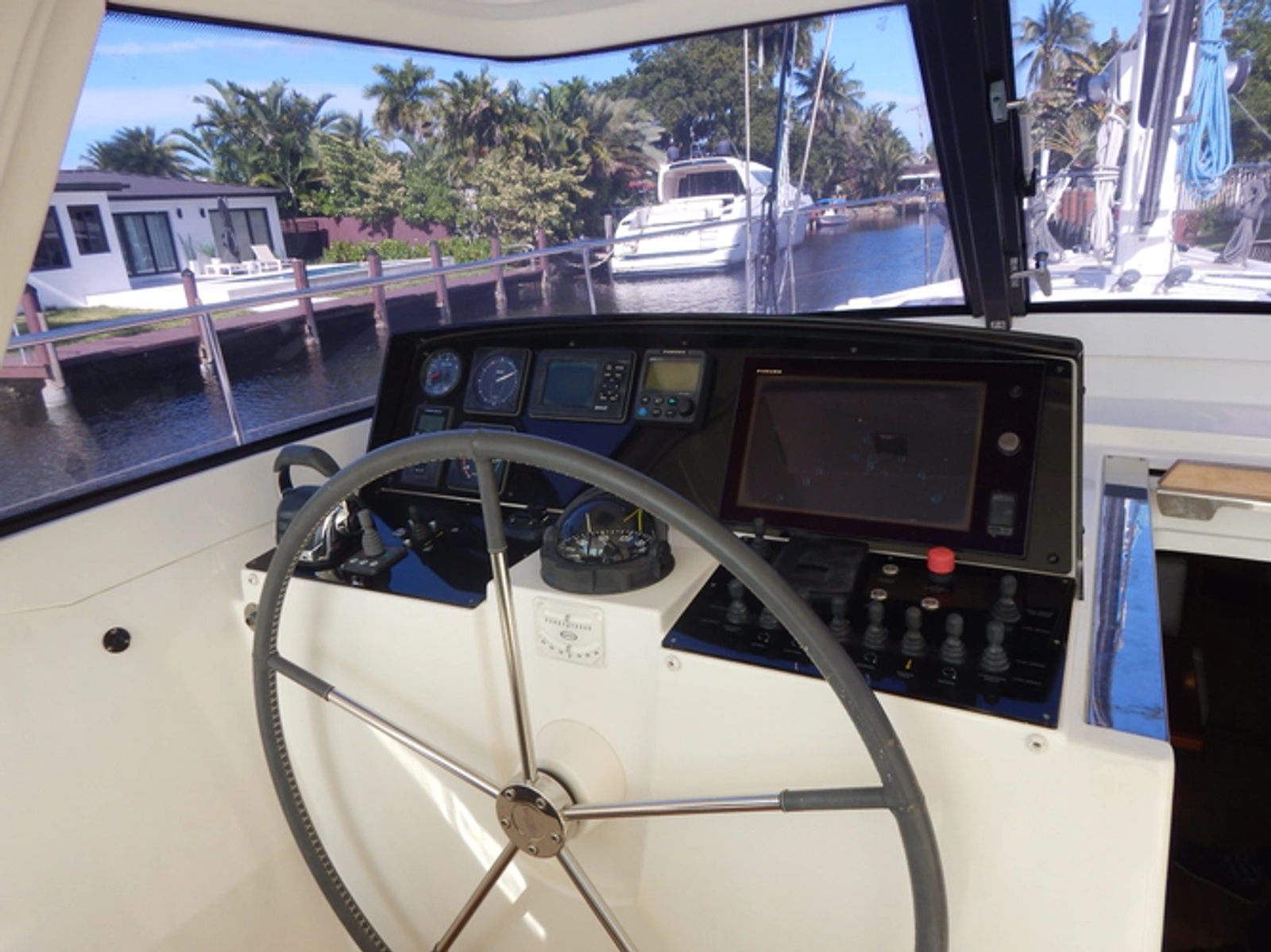

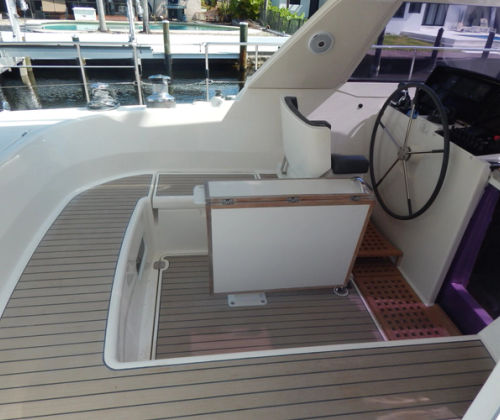

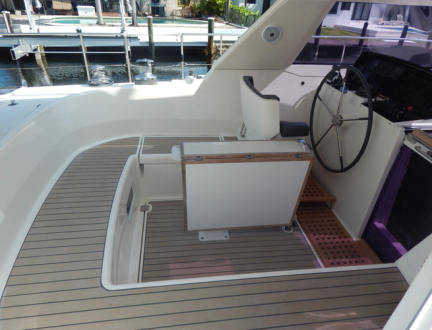

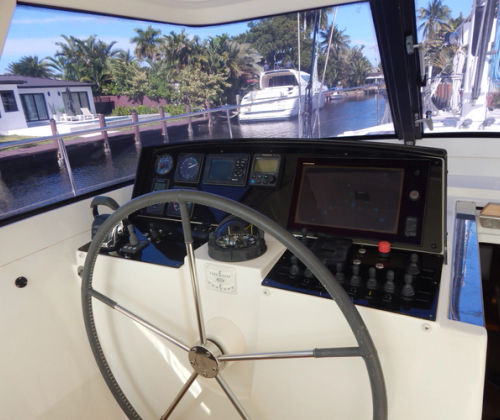

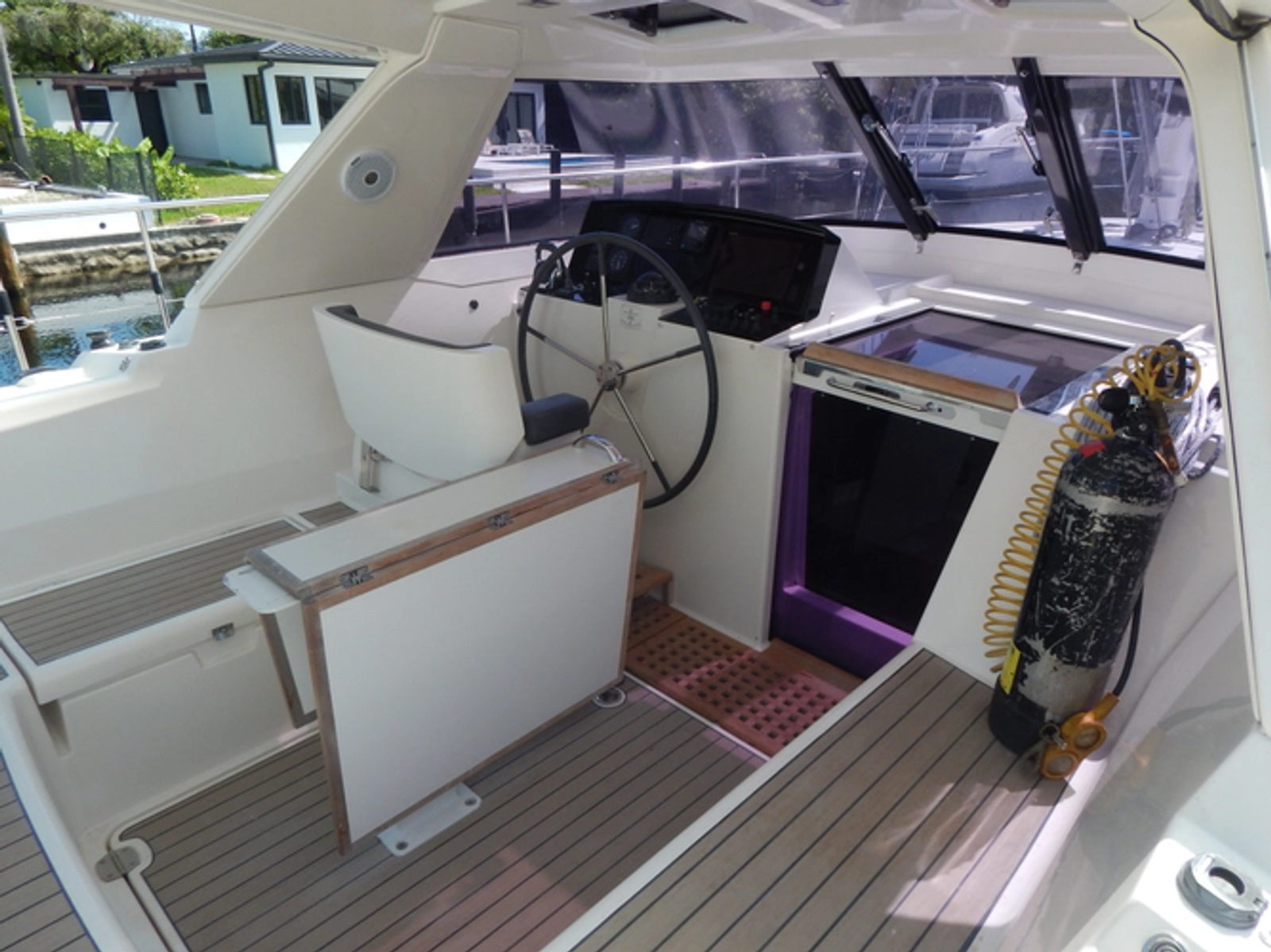

  • Helm is forward in cockpit, completely protected by her hard dodger and hardtop

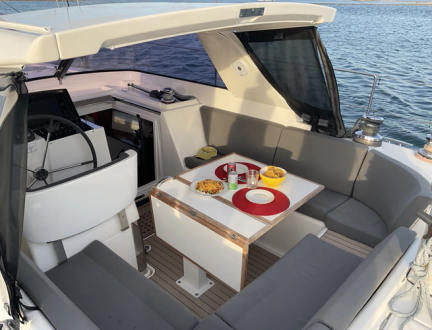

  • Central opening table for outdoor dining

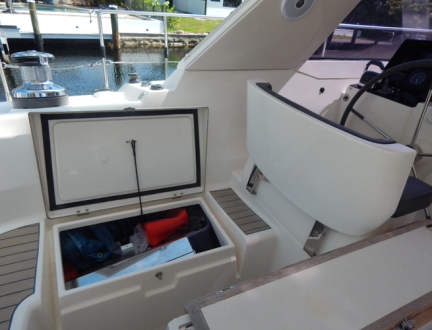

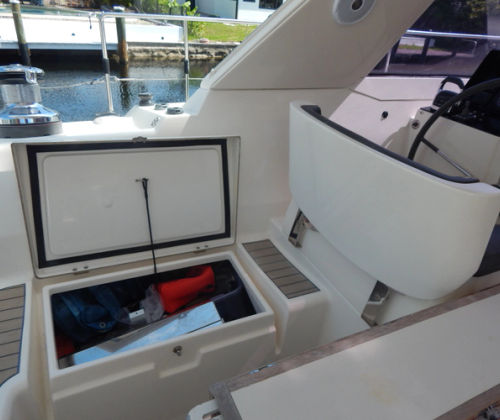

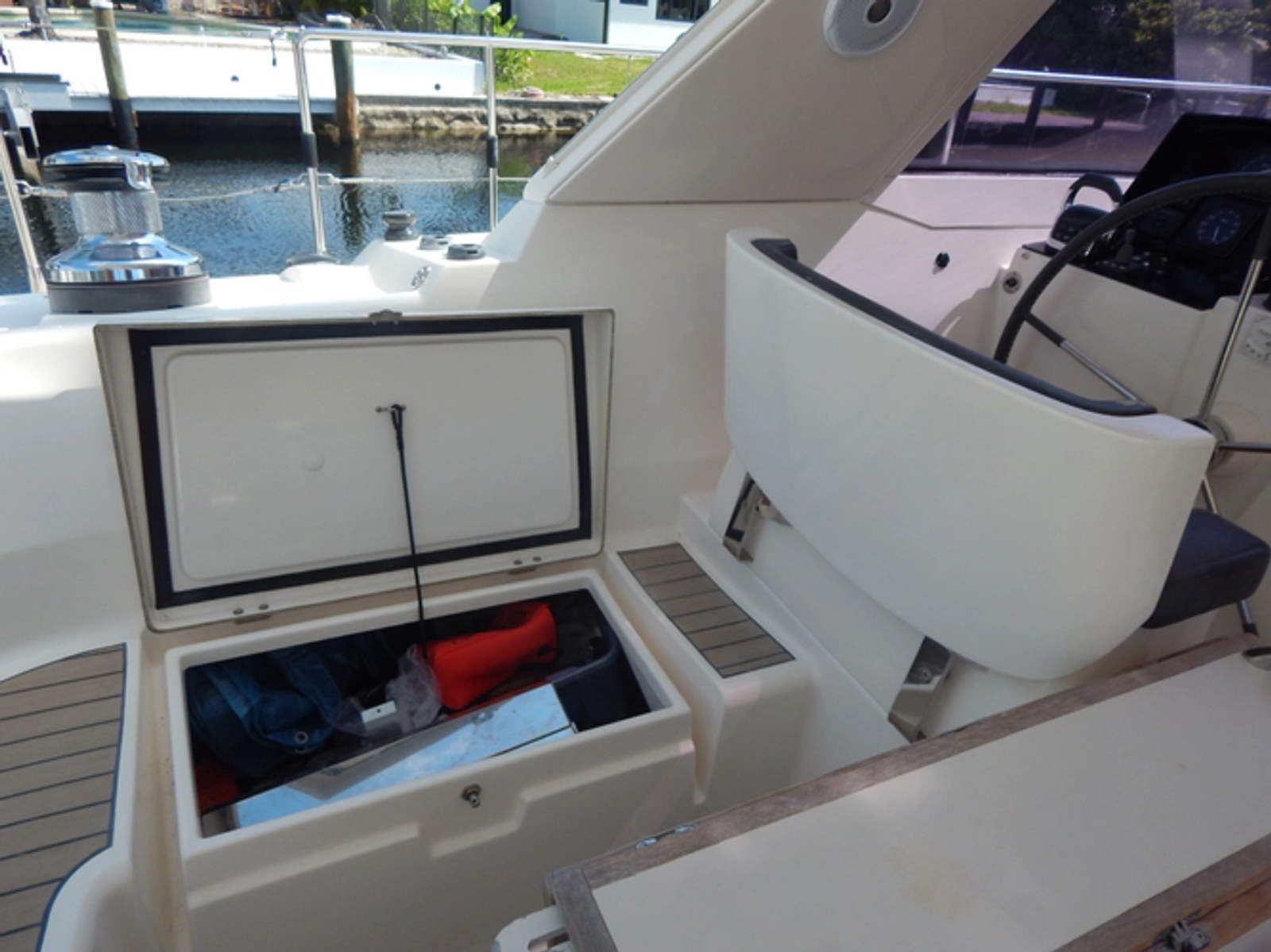

  • Large lazarette


  • Full cockpit cushions


  • Full cockpit enclosure





• Electrical:





  • Vessel is equipped with 12/24 volt DC systems


  • (7) batteries divided into two banks –


  • House bank – (6) 8D AGM batteries


  • Engine/generator start – 12v group 31 AGM North Star battery


  • Generator Onan 11MDKBN 11KW (1318 hrs


  • AC power is provided by 220v shore power 50/60 hz, or Generator 220v or interior (2) inverters ( 220v and 110v) from battery bank


  • Vessel has been set up to allow for American 250/125 VAC 60 Hz, and European 230 VAC 50 Hz electric – Selection for different power inputs is done with transfer switches for transformer located in aft lazarette. 110v outlets are run off a MasterVolt inverter located in engine room. 230 VAC outlets can be run off additional MasterVolt inverter, also in engine room – Main AC circuit distribution panel and individual circuit breakers located in Galley. Monitoring is also located on this distribution panel. AC system is USCG and ABYC compliant.


  • There are 220v outlets and several 110v dedicated outlets run off inverters


  • Bonding system connects all under- water metal hardware to a single anode for protection against corrosion.


  • Charger – 24v 100 amp Mastervolt multistage charger and 24v 30 amp Mastervolt multistage back up charger


  • (2) Victron solar panels mounted at aft deck


  • LED blue lights on transom





  Electronics





  • Vessel is fitted with VDO analog fuel and water gauges


  • Compass – Plastimo Compass


  • VHF – Garmin GC unit mounted in Nav station w/remote mic at helm


  • GPS – Radar: (2) multi function Furuno 14” touch screen. One mounted at the helm, one mounted at the Nav station


  • Speed – Depth – Temp display – Bandamp;G H3000 at the helm


  • Autopilot – Furuno 711 interfaced to touch screen display with hydraulic pump and ram connected to rudder quadrant ( hydraulic pump new 2023)


  • Wind indicator – Brooks and Gatehouse true and apparent wind indicators at helm


  • EPIRB –Ocean Signal – located just inside companionway


  • Fusion 205 stereo with iPod docking station – with Bose surround sound system and subwoofer


  • TV- 22” flat screen TV located in lifting compartment outboard of Dinette -Disappears completely when not being used


  • Nav lights – Vessel is equipped with LED Red and Green forward lights, stern light, bow light, Anchor light and tricolor mast head light




•

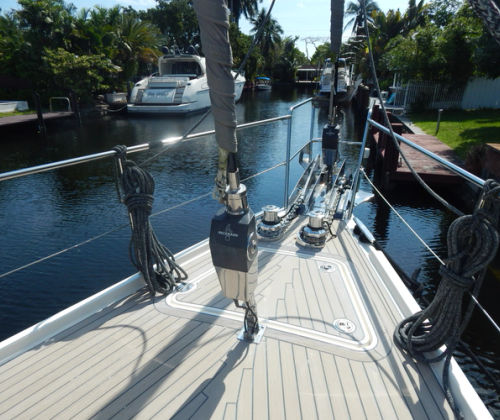

  • (2) Stainless steel anchors stored on bow anchor platform


  • One is an ULTRA anchor, One is Plow, both with swivels


  • Port anchor has 20 meters of 3/8 chain (65 ft) and 20 meters of and#190; rode (65 ft)


  • Starbd anchor has 100 meters ( 330 ft) 3/8 chain

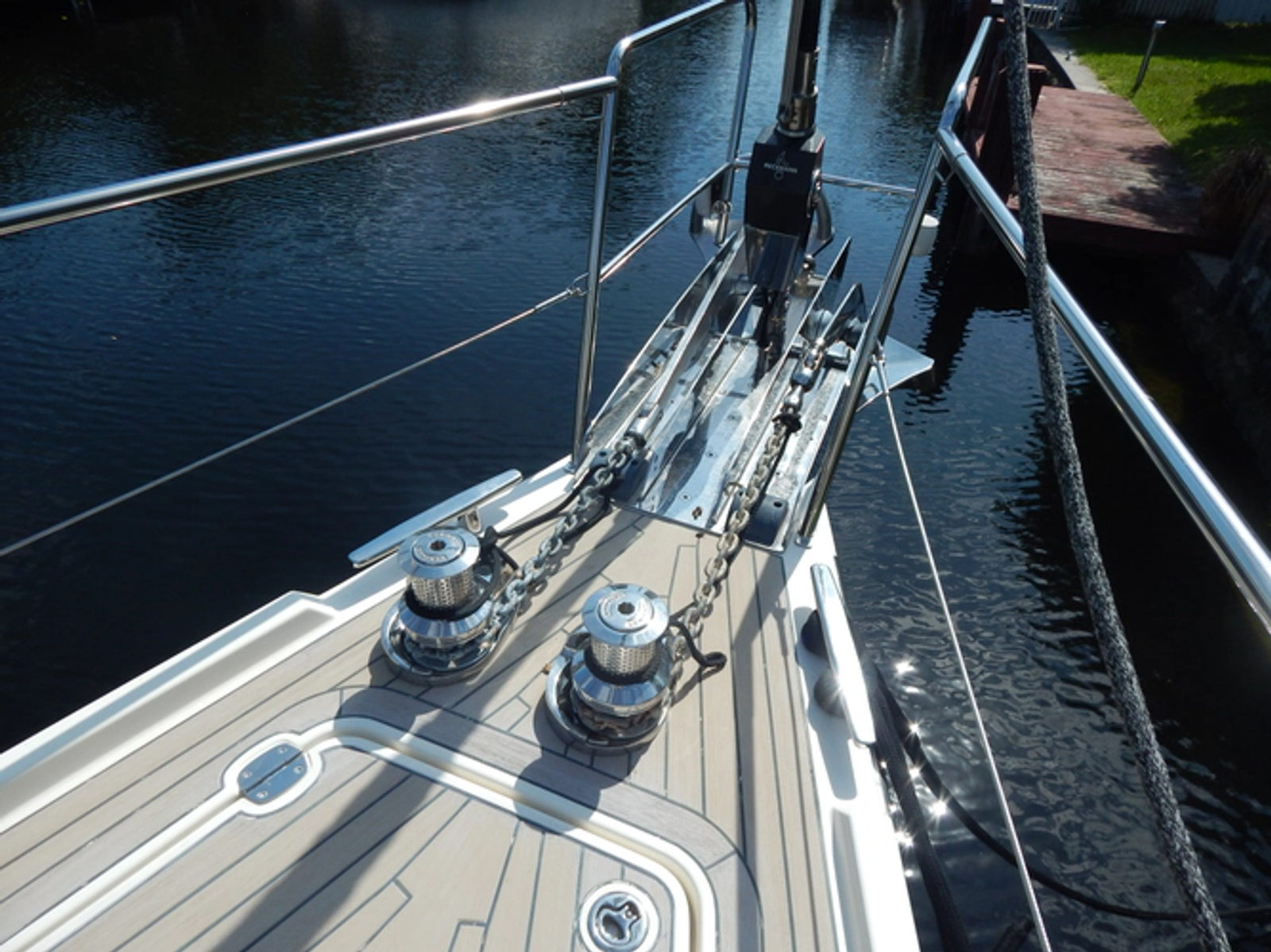

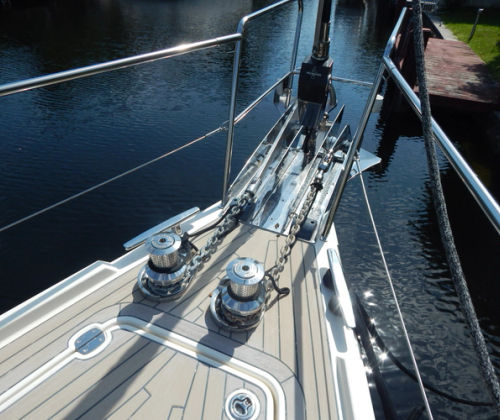

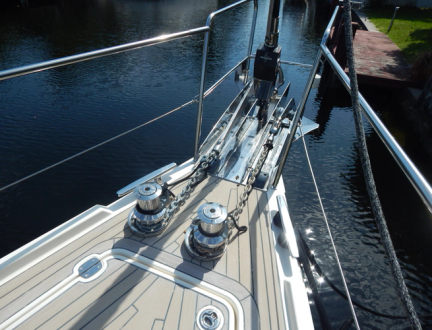

  • (2) Lewmar windlasses with chain gypsy and rope drums


  • Spare Fortress anchored stowed

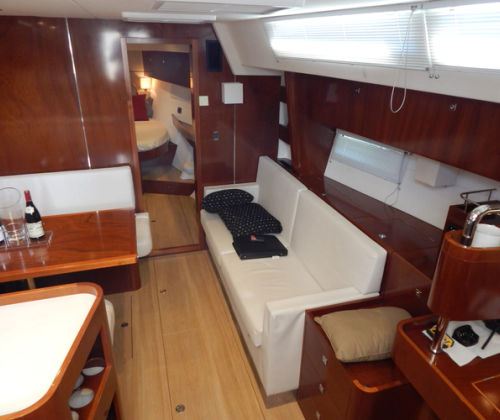

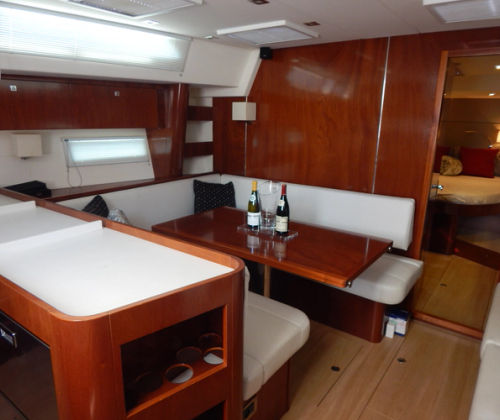

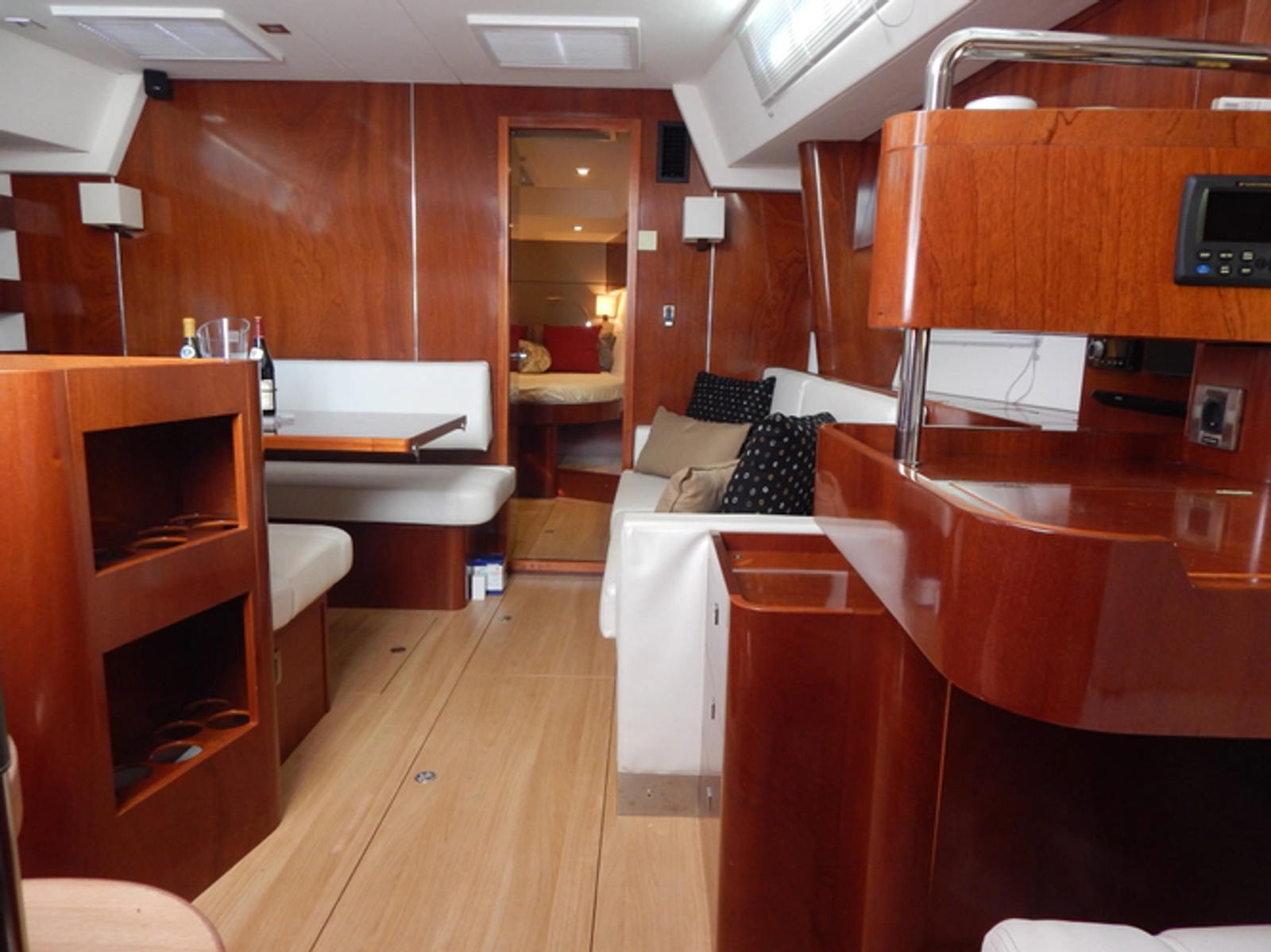

• SALON:

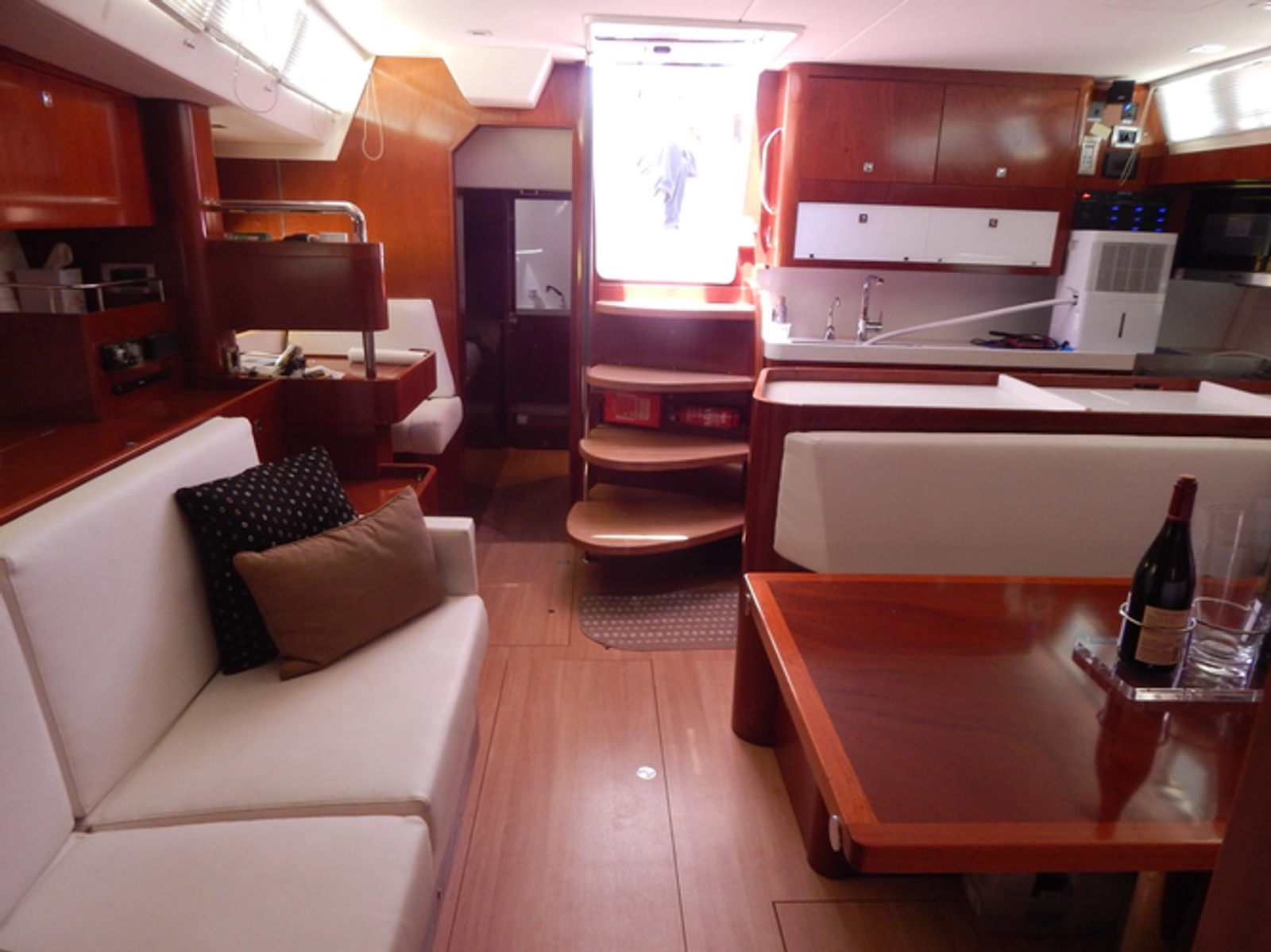

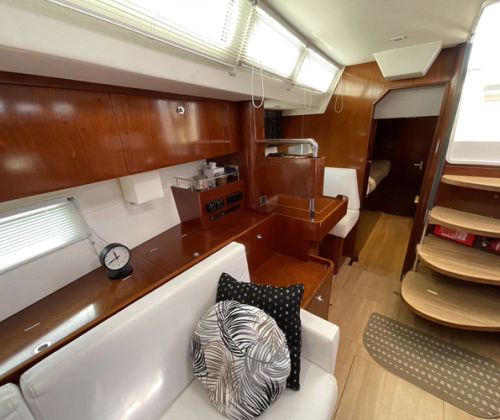

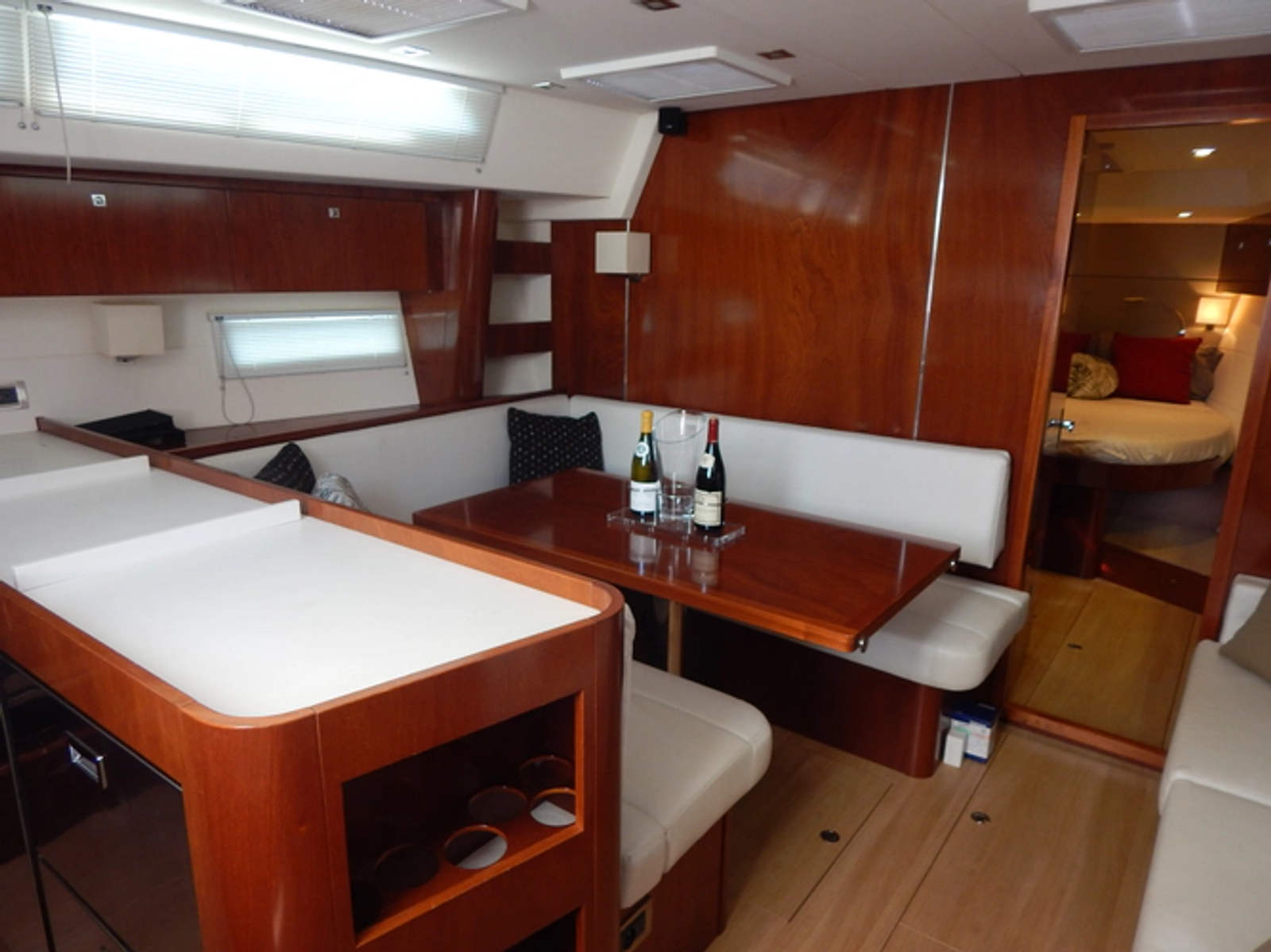

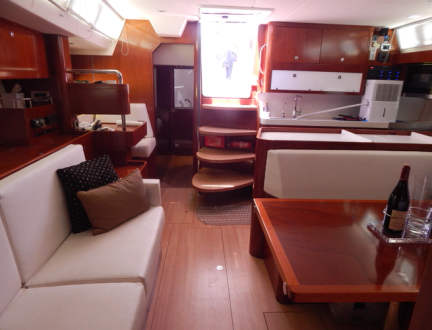

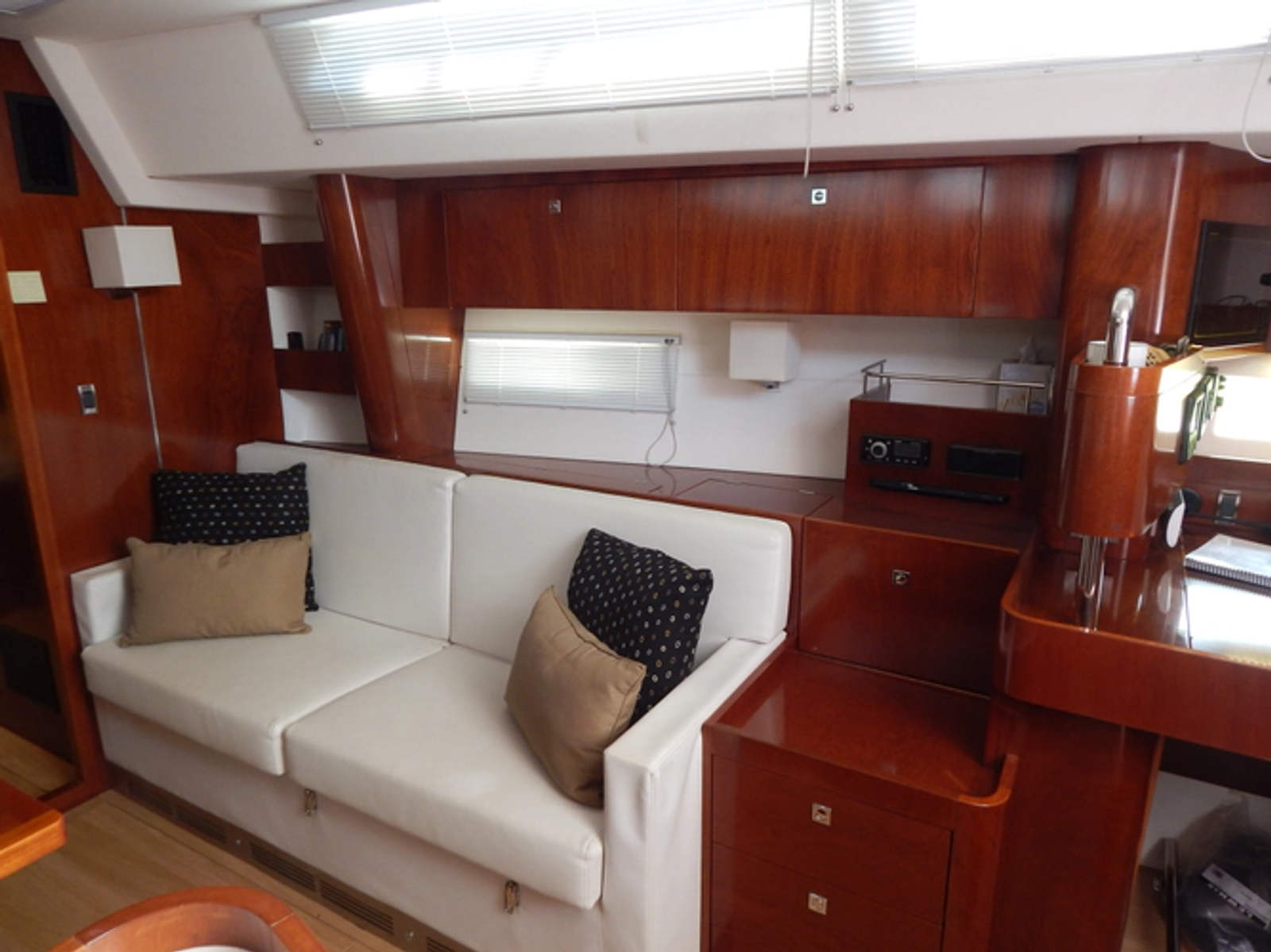

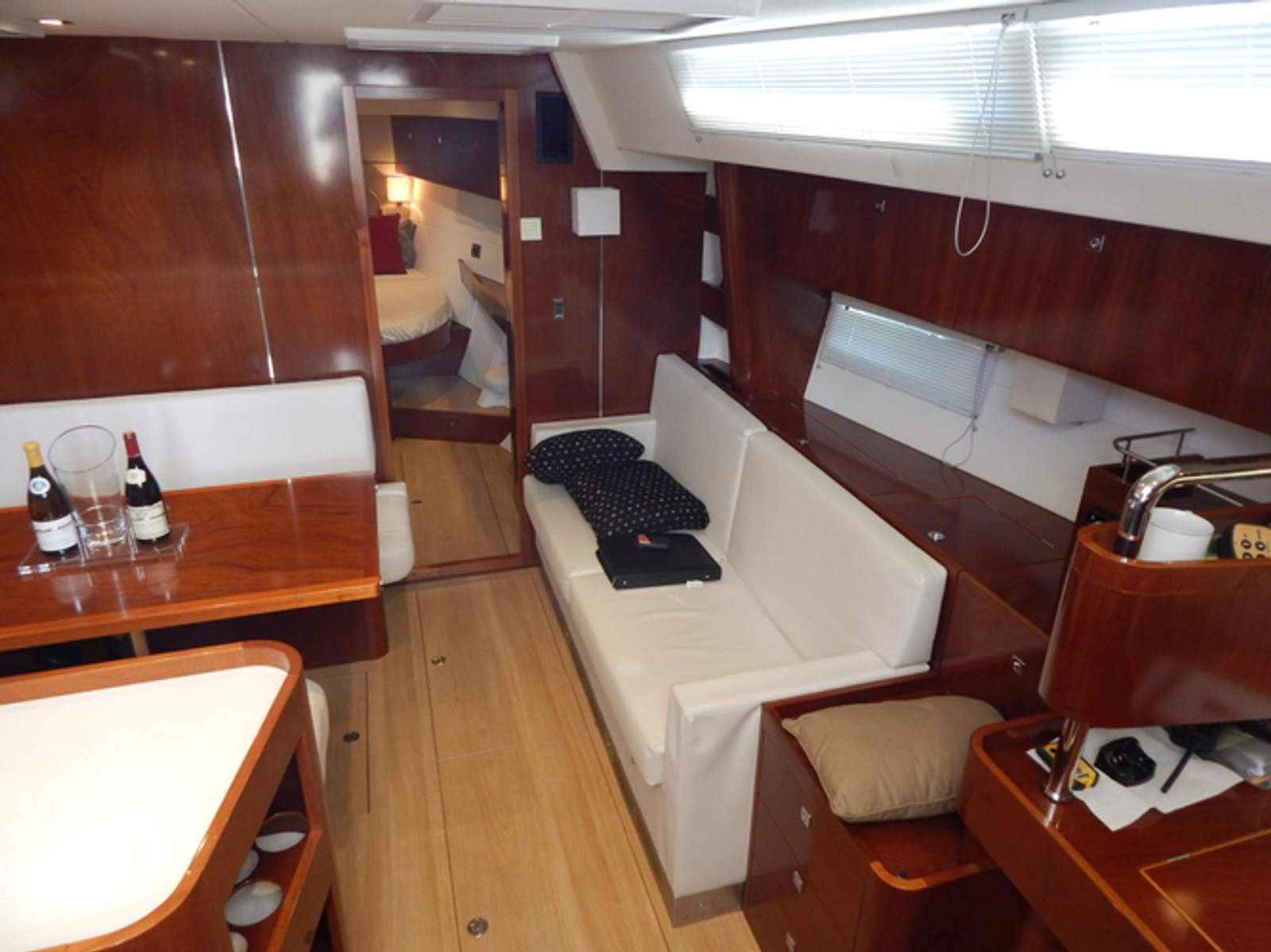

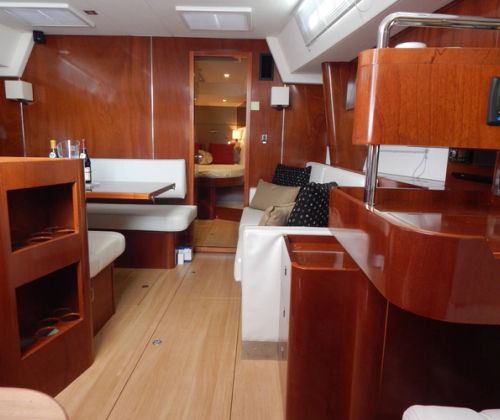

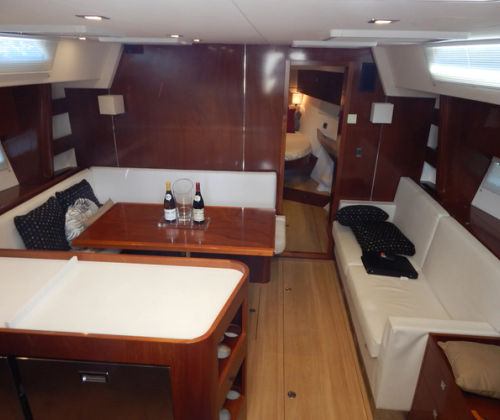

  Salon is bright and airy with long side windows, hull ports and opening overhead hatches

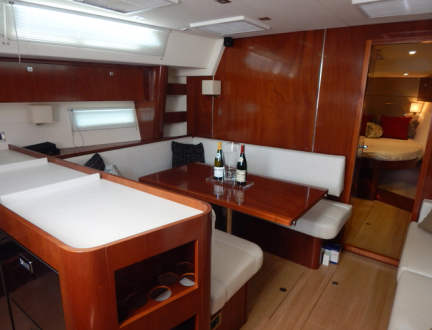

  • (6/8) person dinette


  • Life jacket storage under dinette


  • Keel cooler access


  • Freezer compressor access under dinette, HVAC compressor under dinette

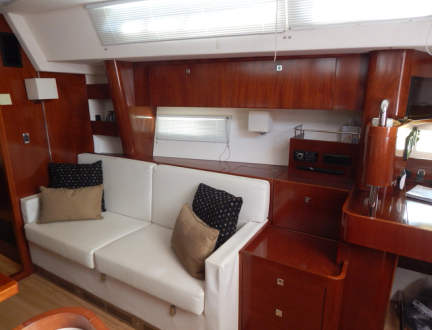

  • Settee/single berth to Starbd with large freezer underneath


  • (4) opening hatches


  • (3) 125v outlets, (3) 230v outlets


  • (10) overhead LED lights, (4) wall lights


  • 13,000 BTU HVAC with control panel


  • Fusion stereo, DVD player


  • Flatscreen TV – rises up from compartment behind dinette


  • Numerous storage lockers


  • Storage under cabin sole

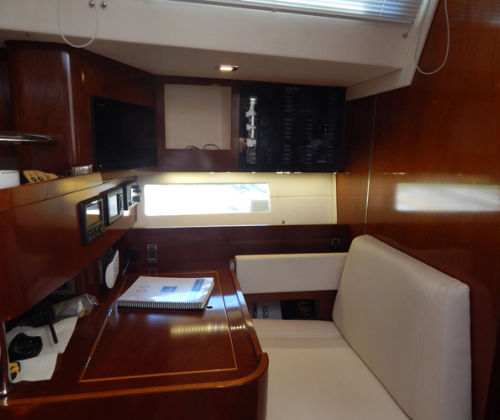

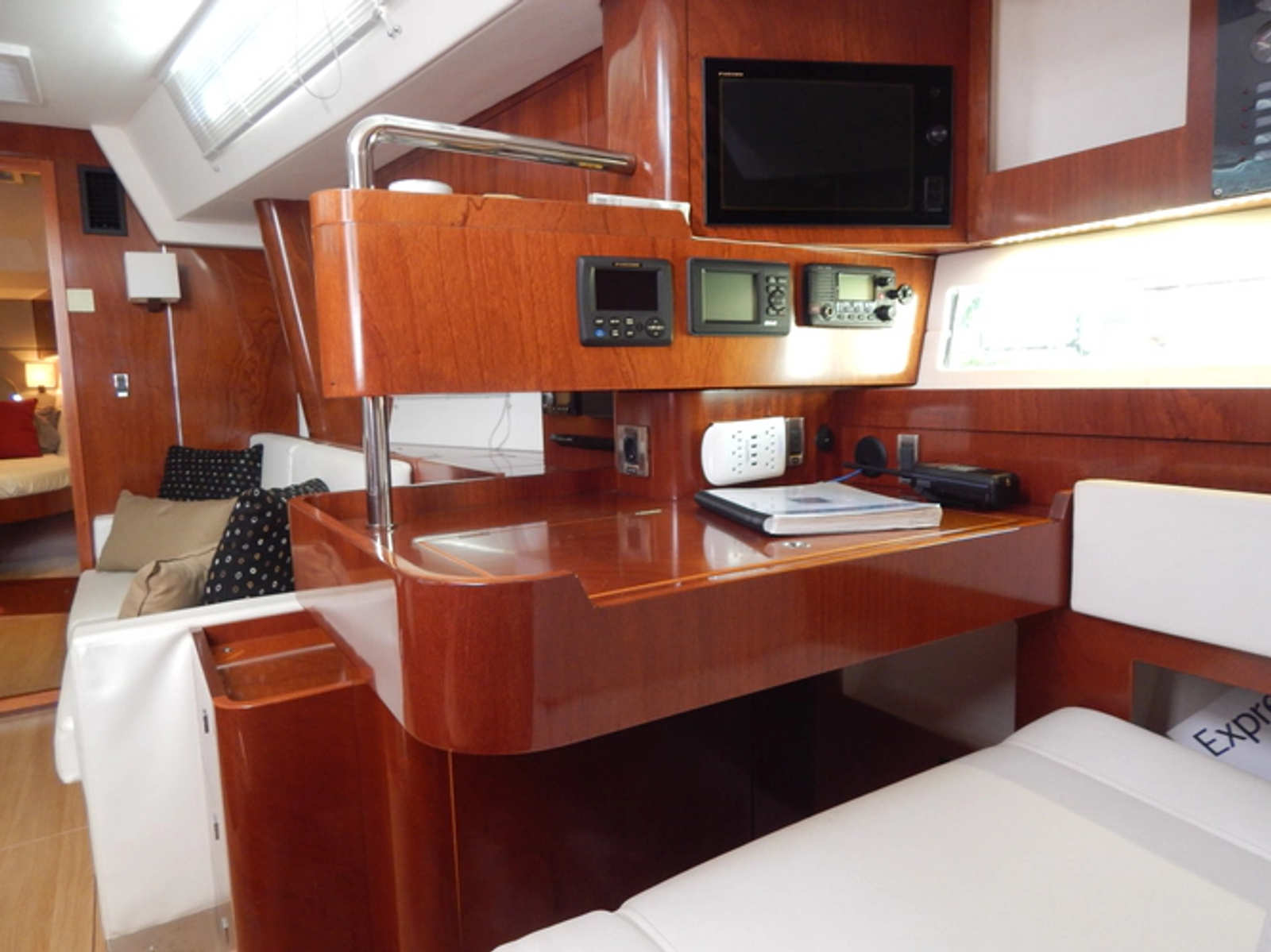

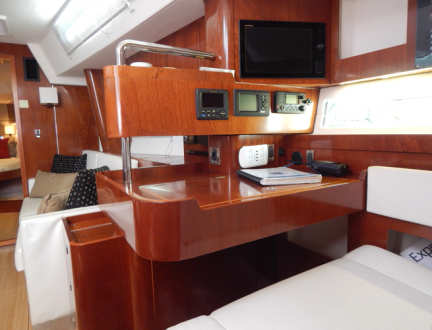

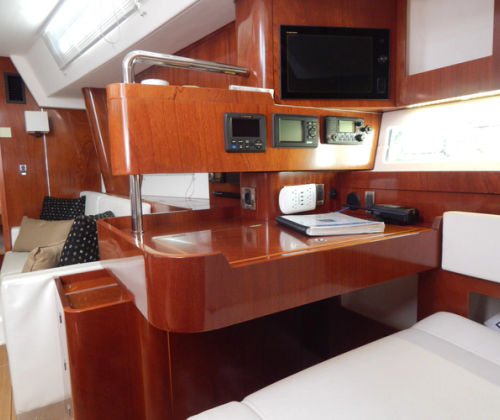

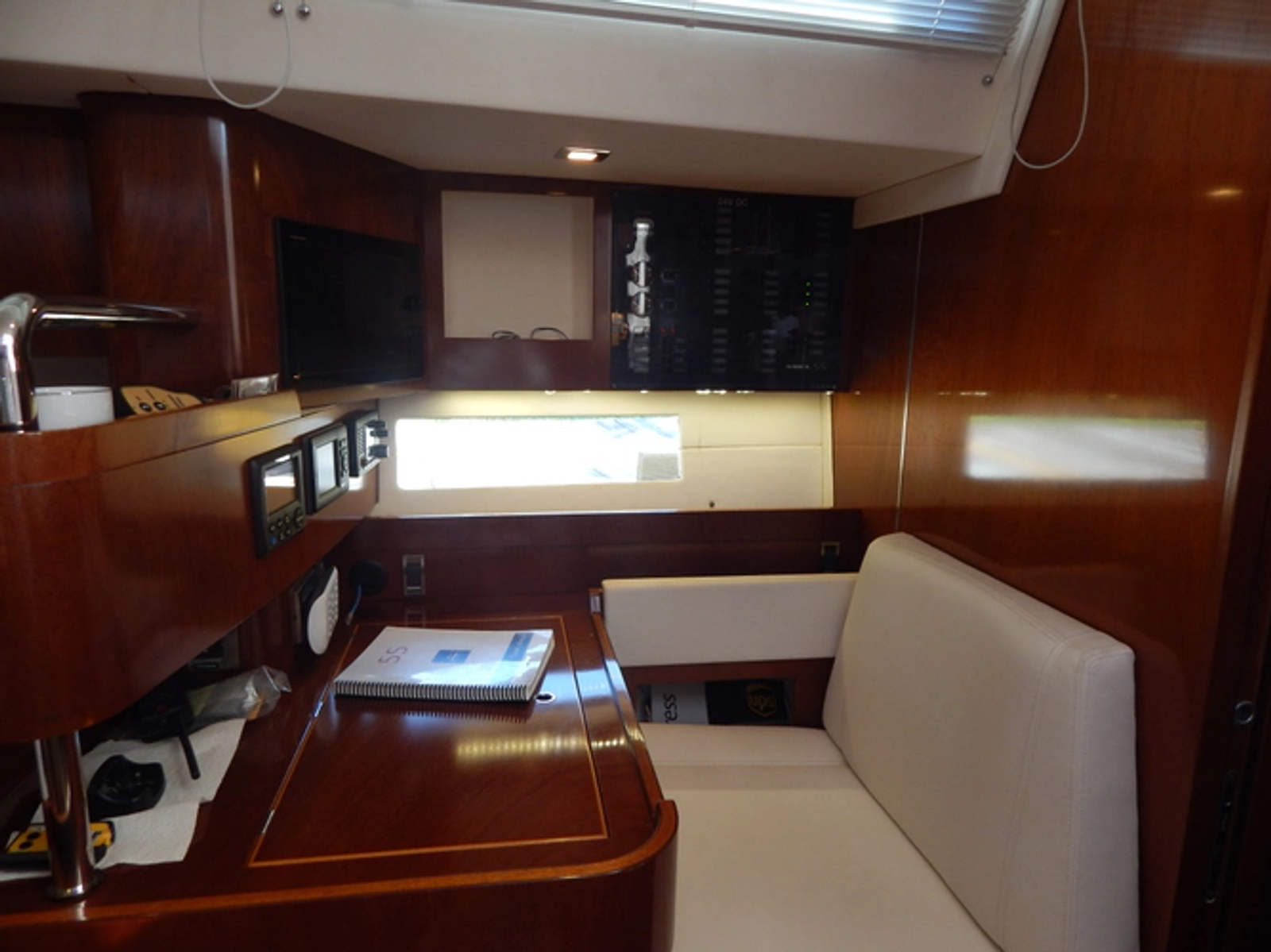

  NAV STATION: located to Starbd
  Chart table, w/forward facing seat
  VHF, MFD, GPSD,

  DC distribution panel w/main DC disconnects

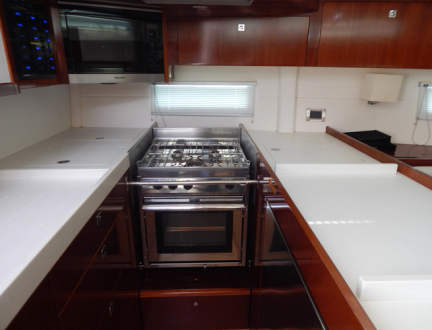

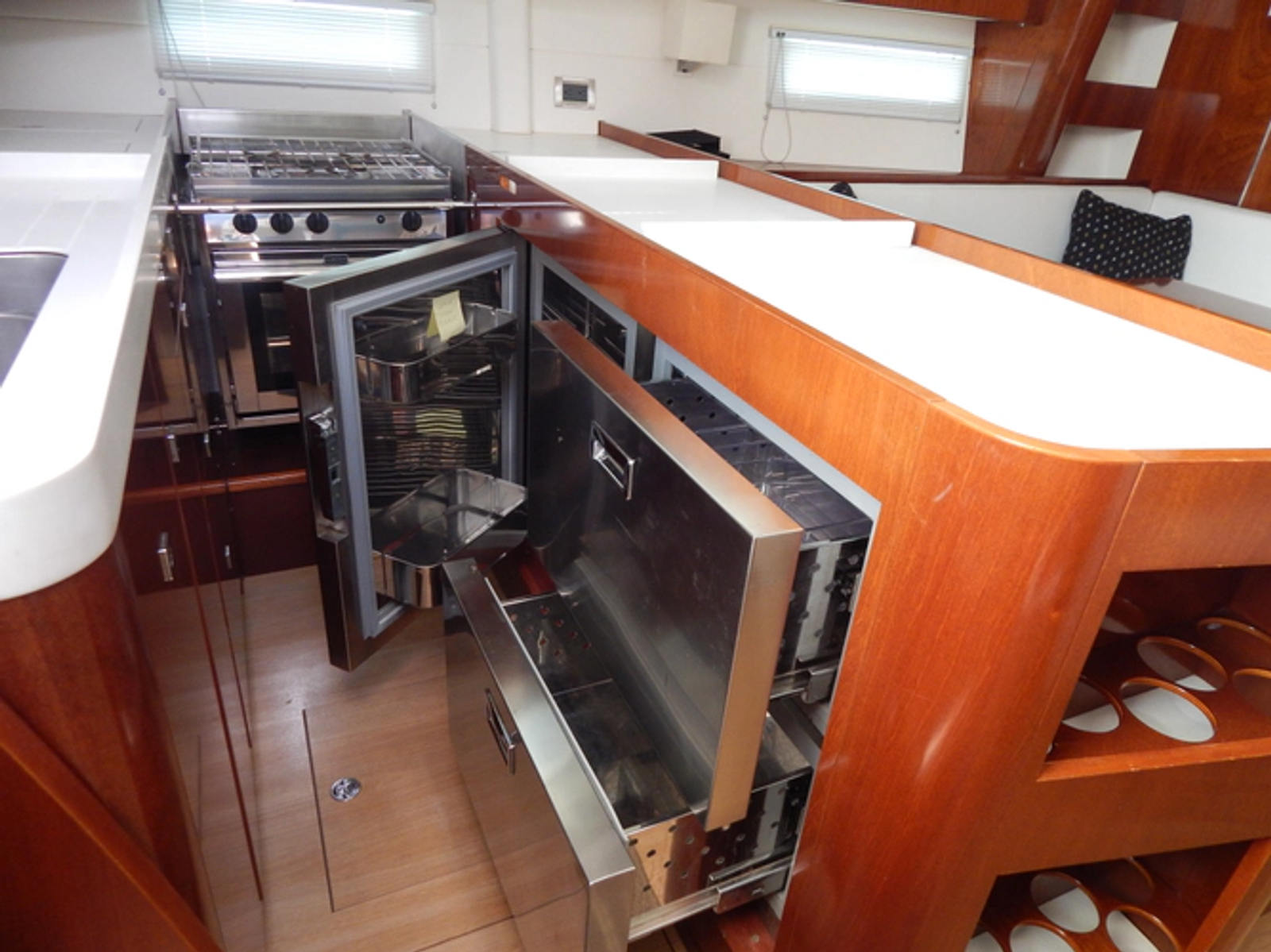

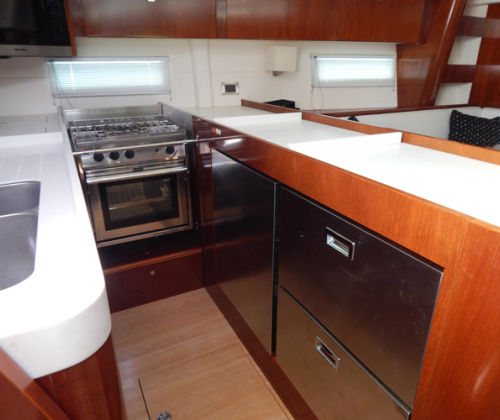

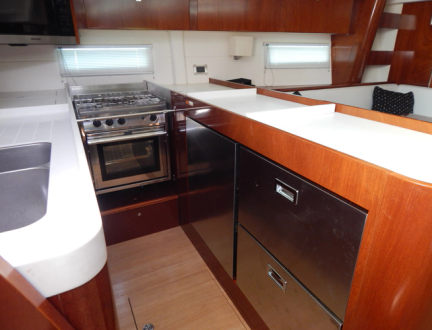

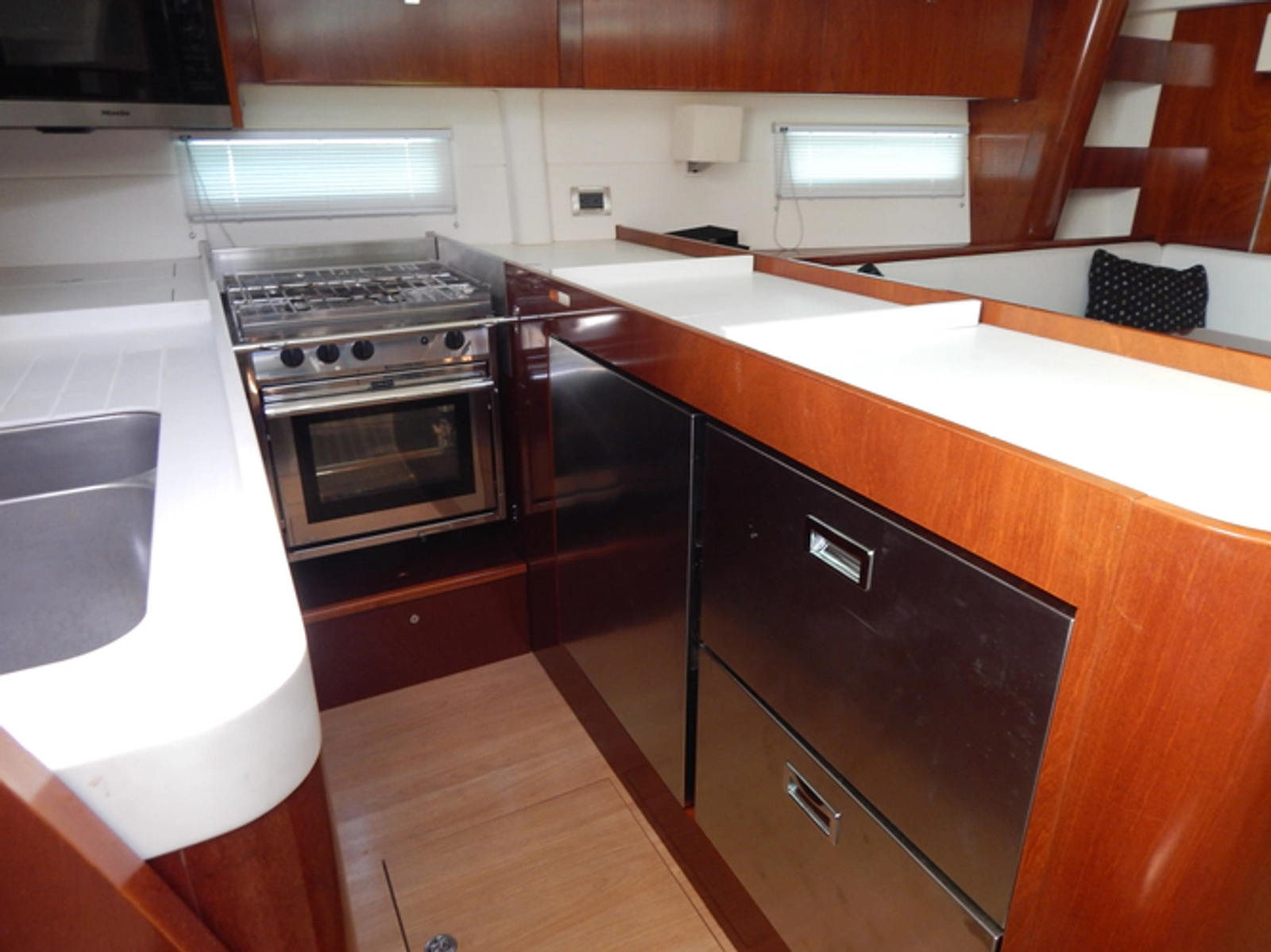

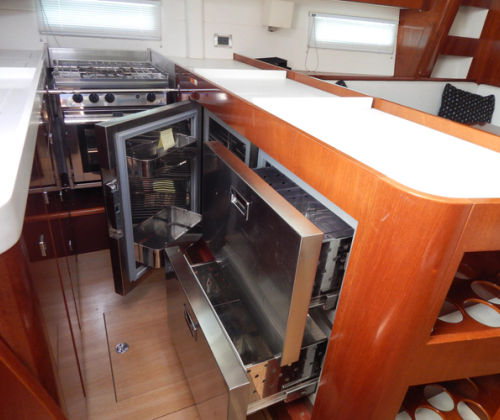

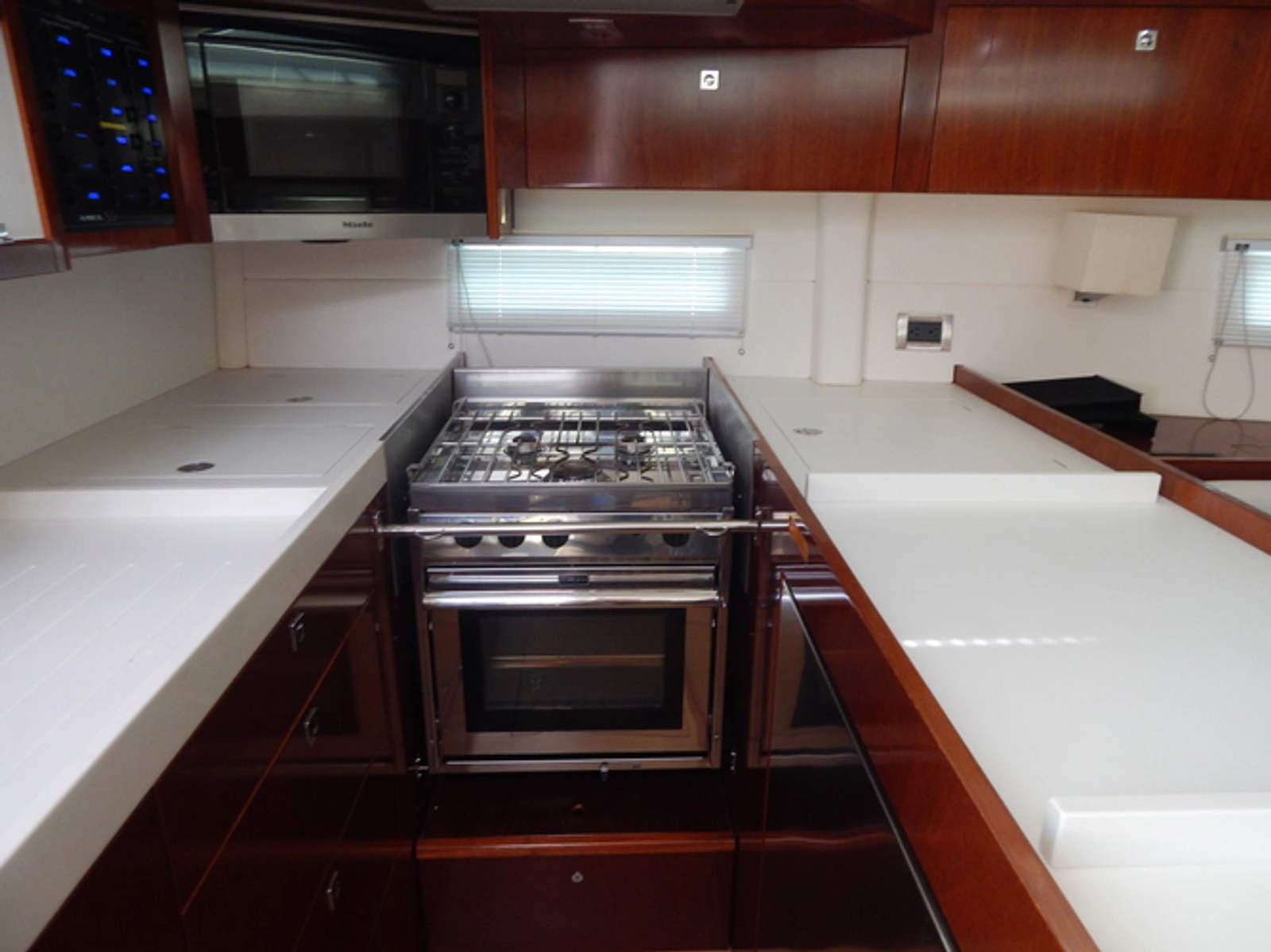

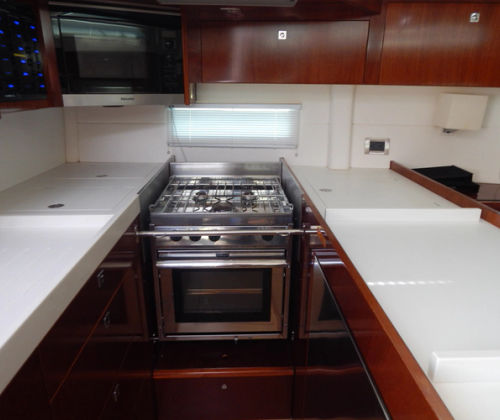

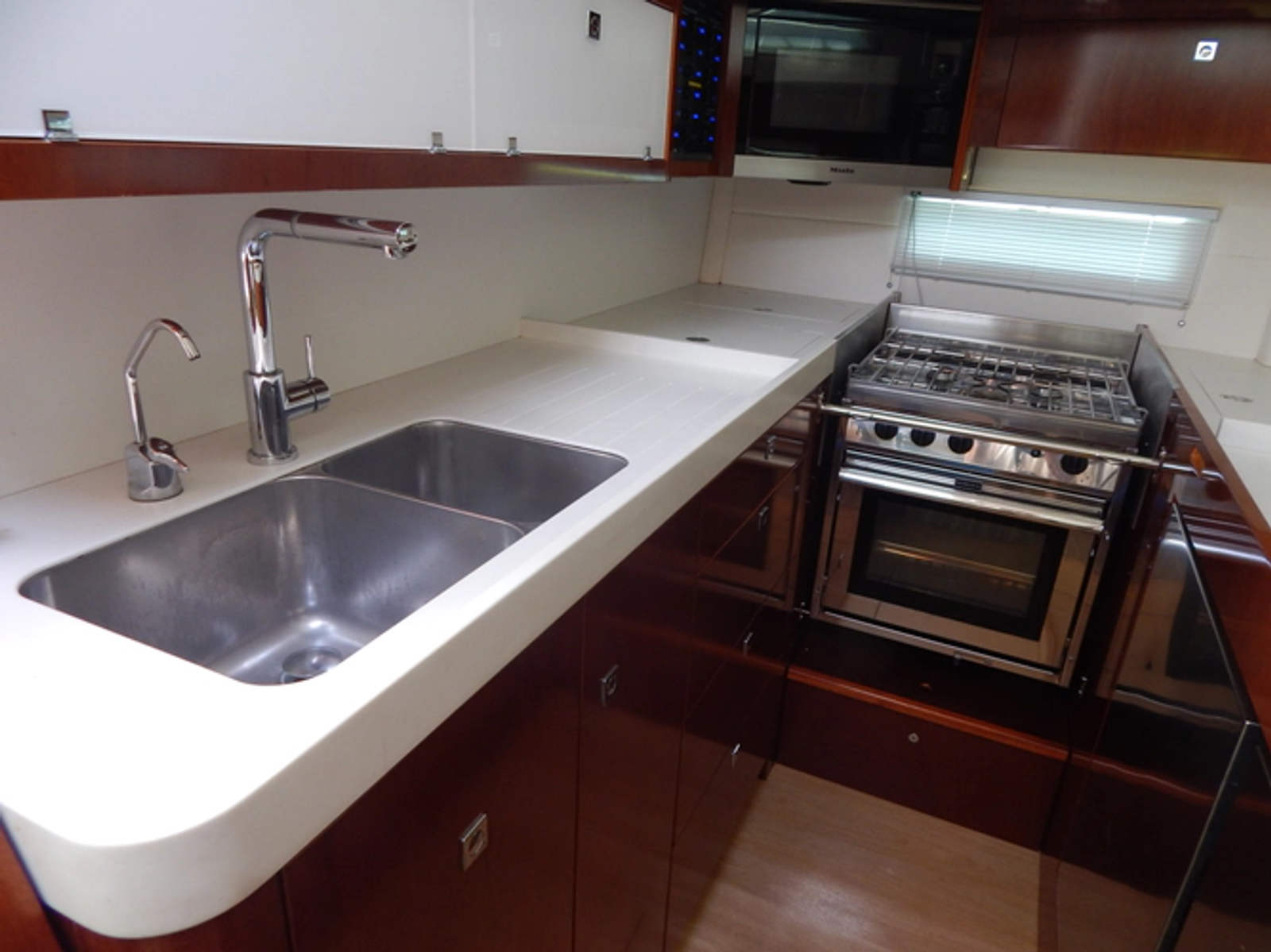

  GALLEY: located to Port





  • U-Shaped with molded Corian work surfaces


  • Mele brand microwave


  • Force 10 propane (3) burner stove w/ oven and broiler


  • Double SS sink with faucet

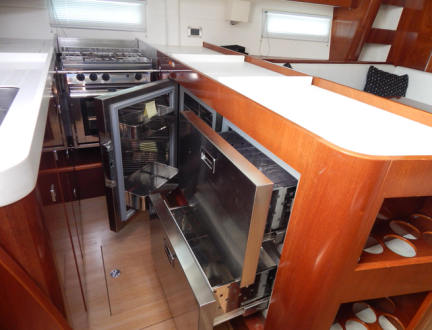

  • (2) SS refrigerator / freezer drawer style units


  • (1) front load SS refrigerator


  • Additional freezer under Salon settee to Starbd

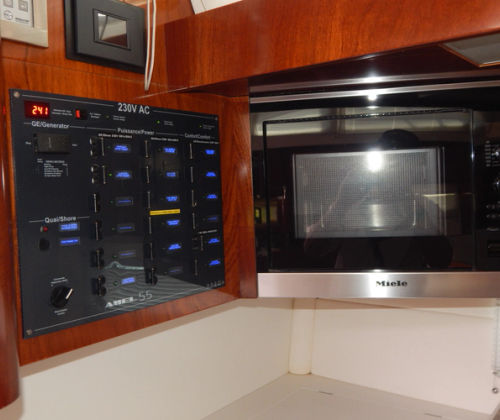

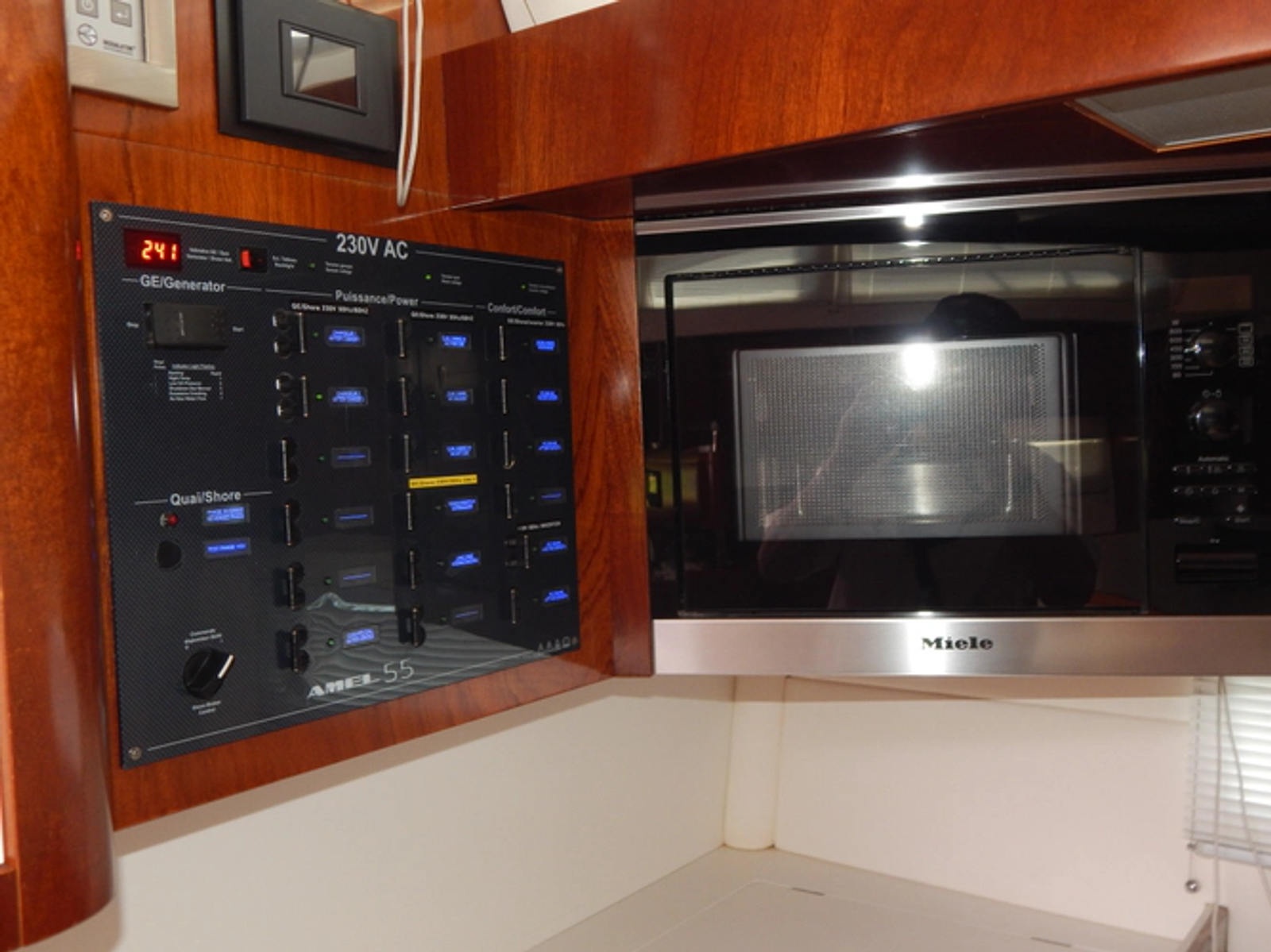

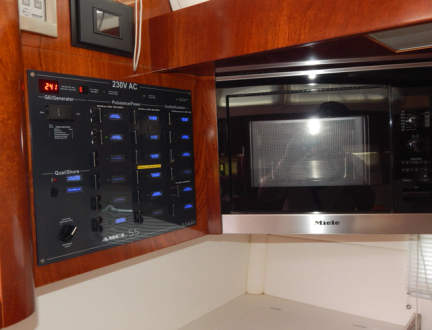

  • AC distribution panel – 125v/230v

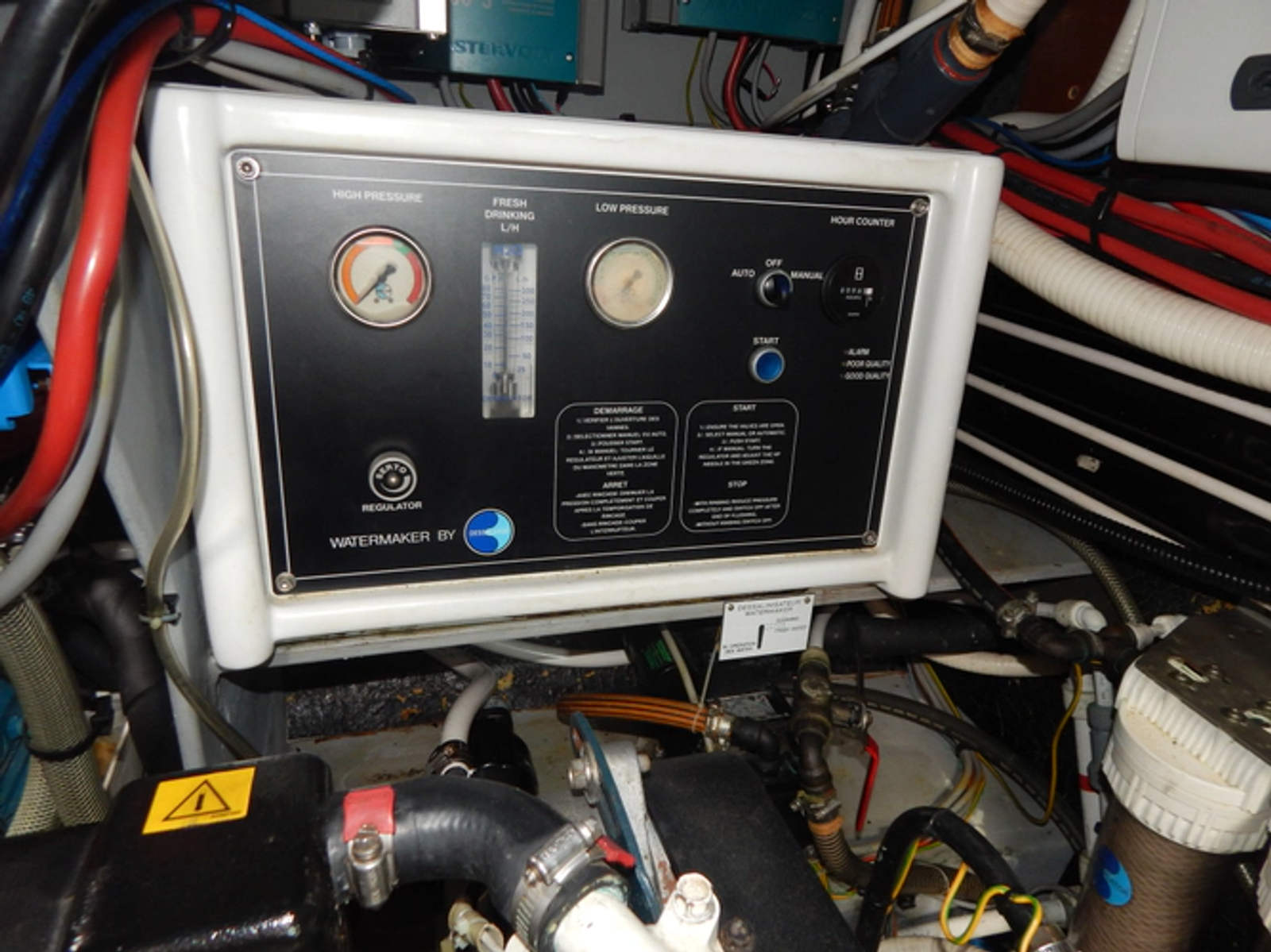

  • Water Maker - 220v , 62 gph… (240 ltr/hr)


  • Water maker controls – water maker located in engine room


  • HVAC heat/cooling control


  • 125v outlet, 230v outlet


  • Indirect under cabinet lighting


  • Stove vent


  • Opening port


  • Numerous storage lockers and drawers

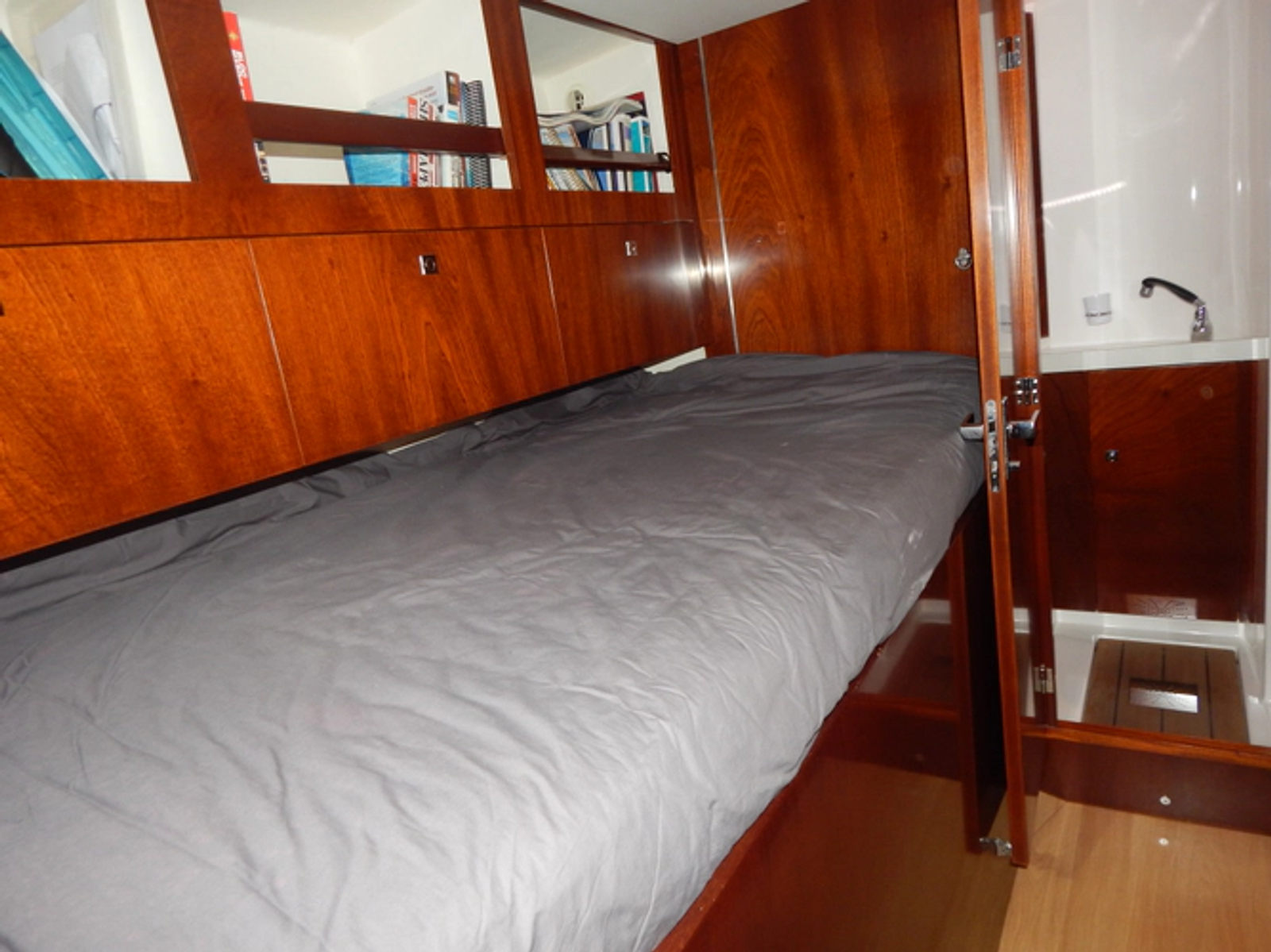

  PASS THROUGH TO AFT CABIN:

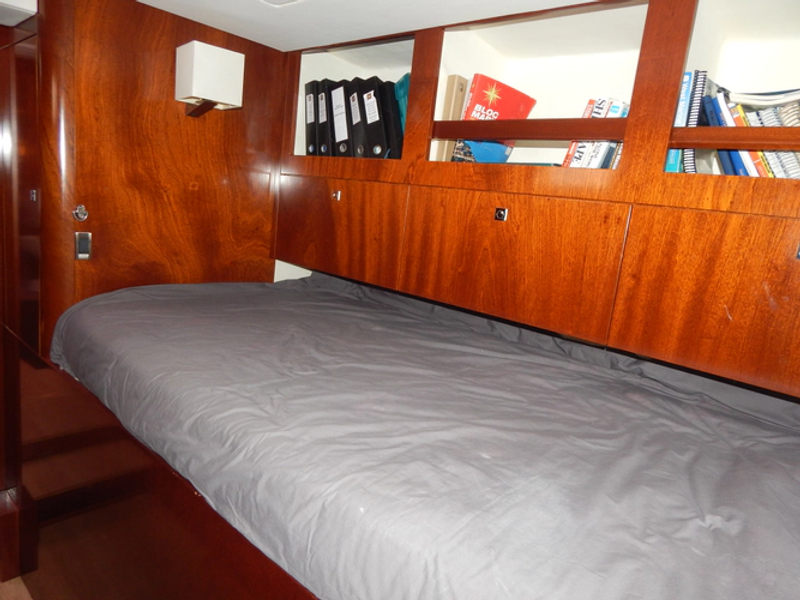

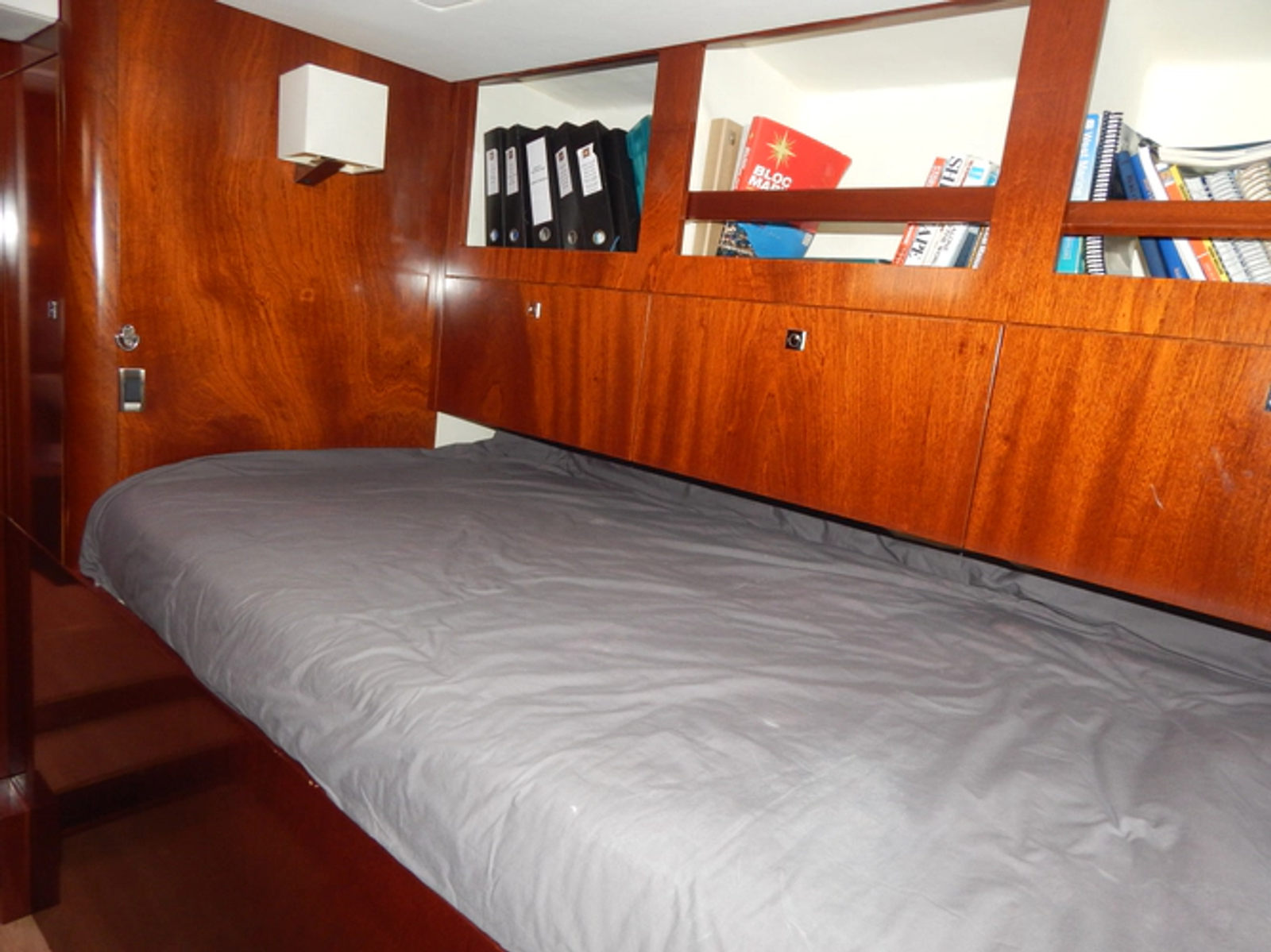

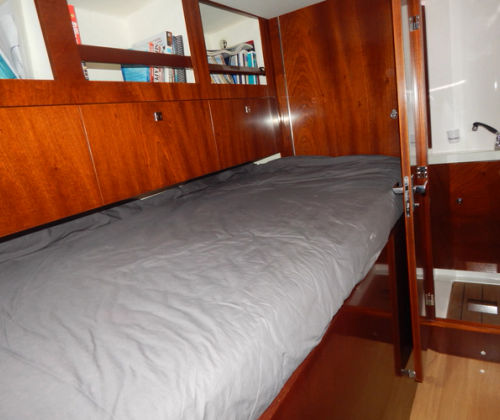

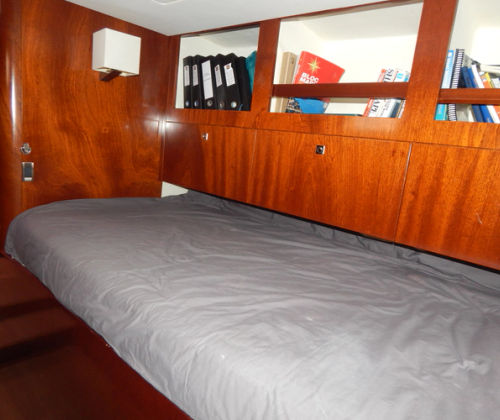

  Single pilot berth





  • Fuel tank under berth with Main fuel shutoff


  • Hanging locker


  • (3) overhead LED lights


  • (1) wall light


  • Opening port


  • Storage lockers

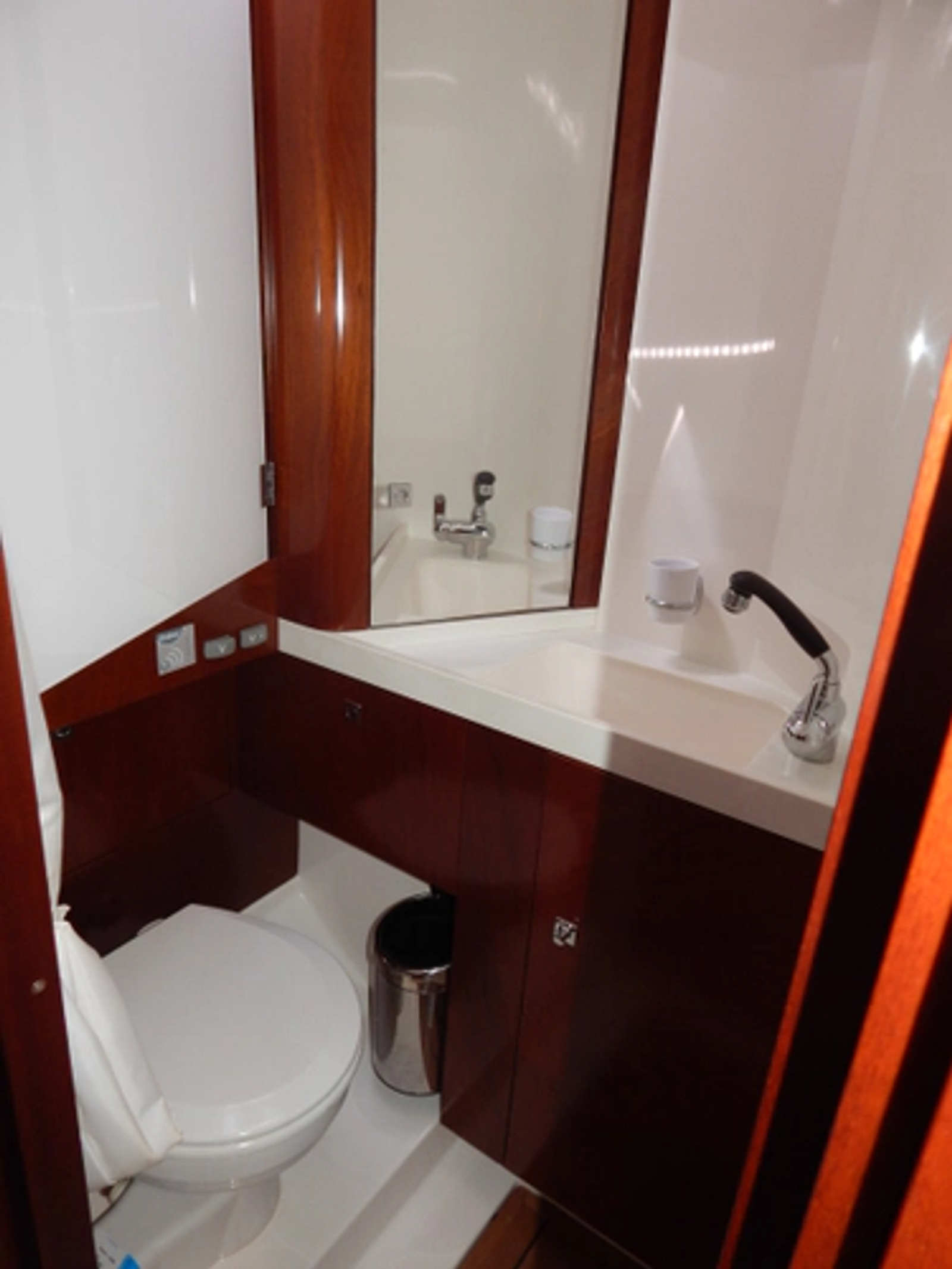

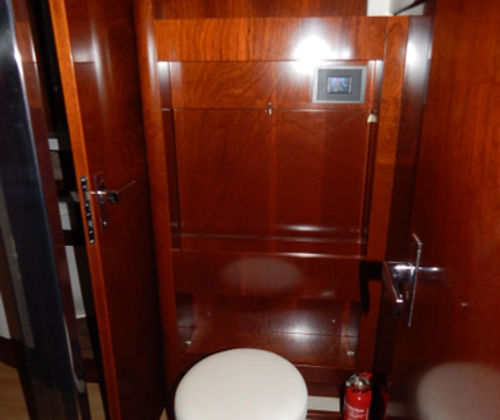

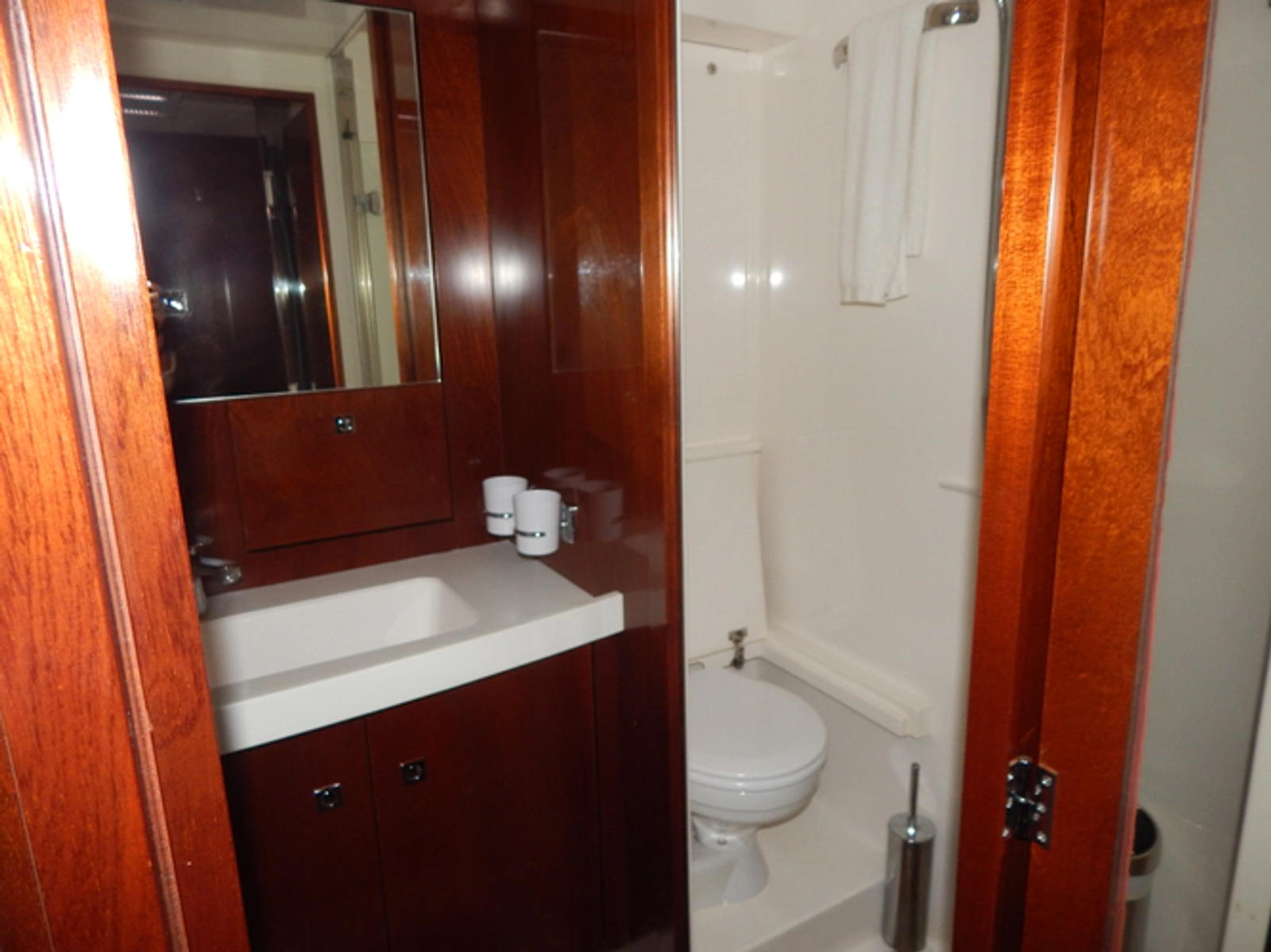

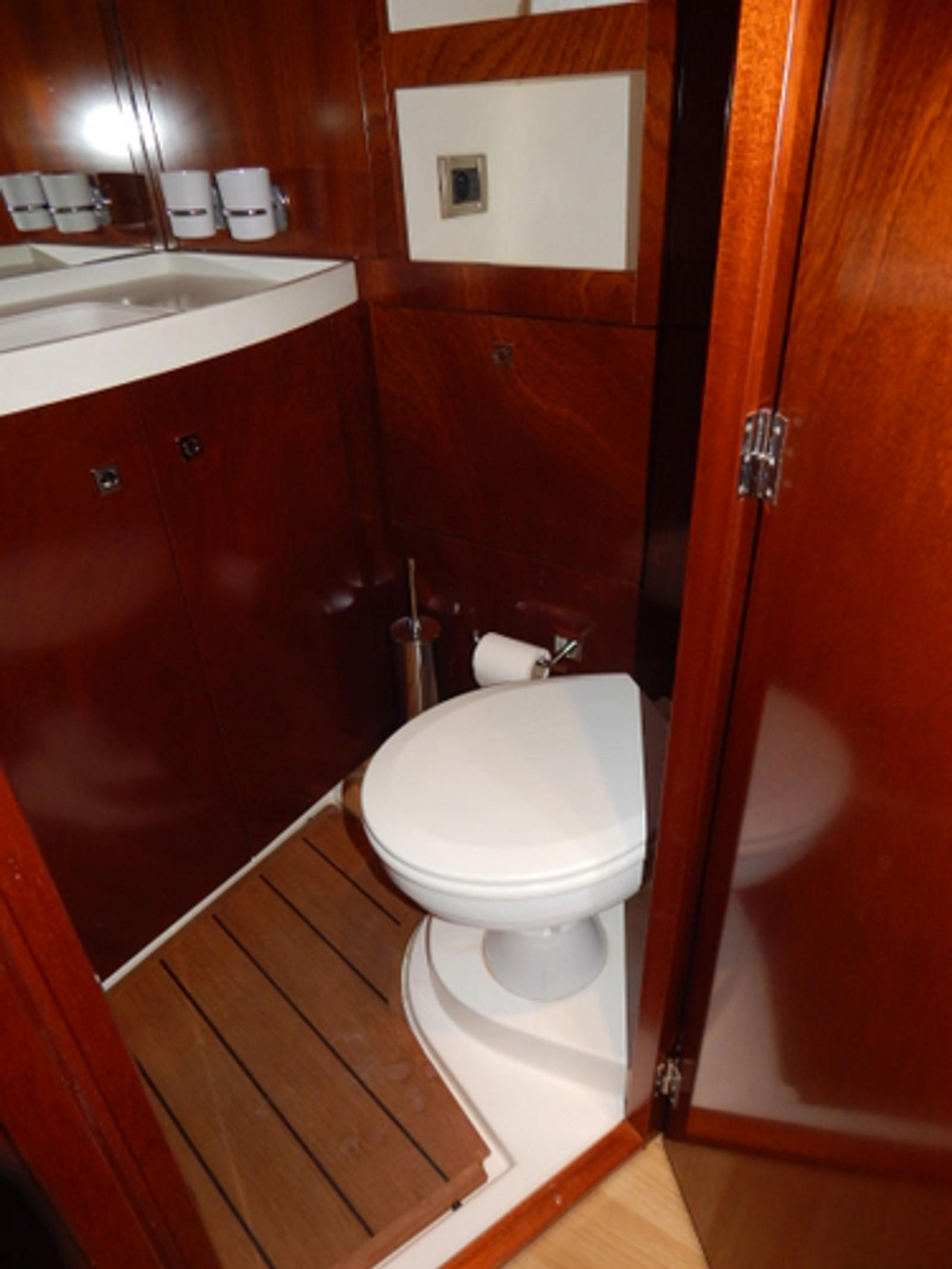

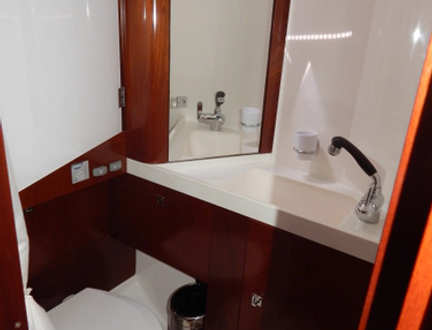

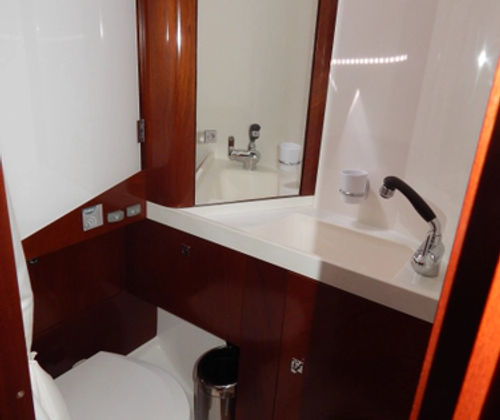

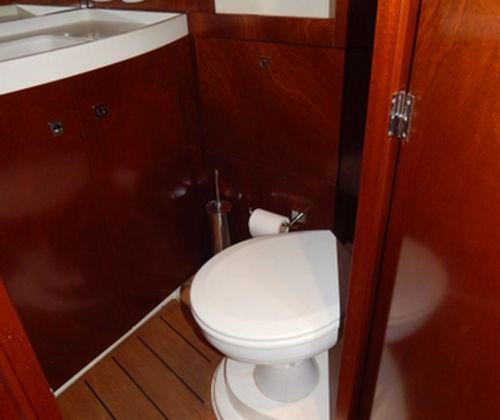

  • DAY HEAD:

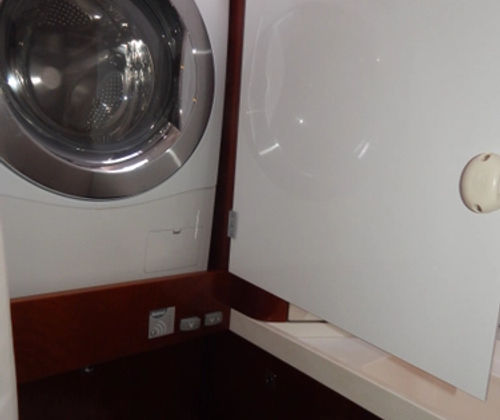

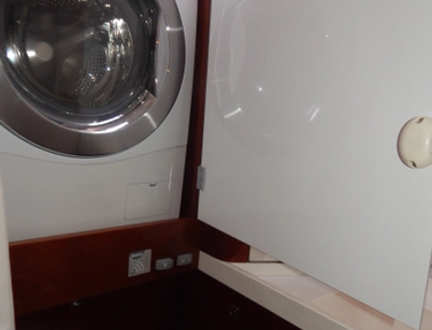

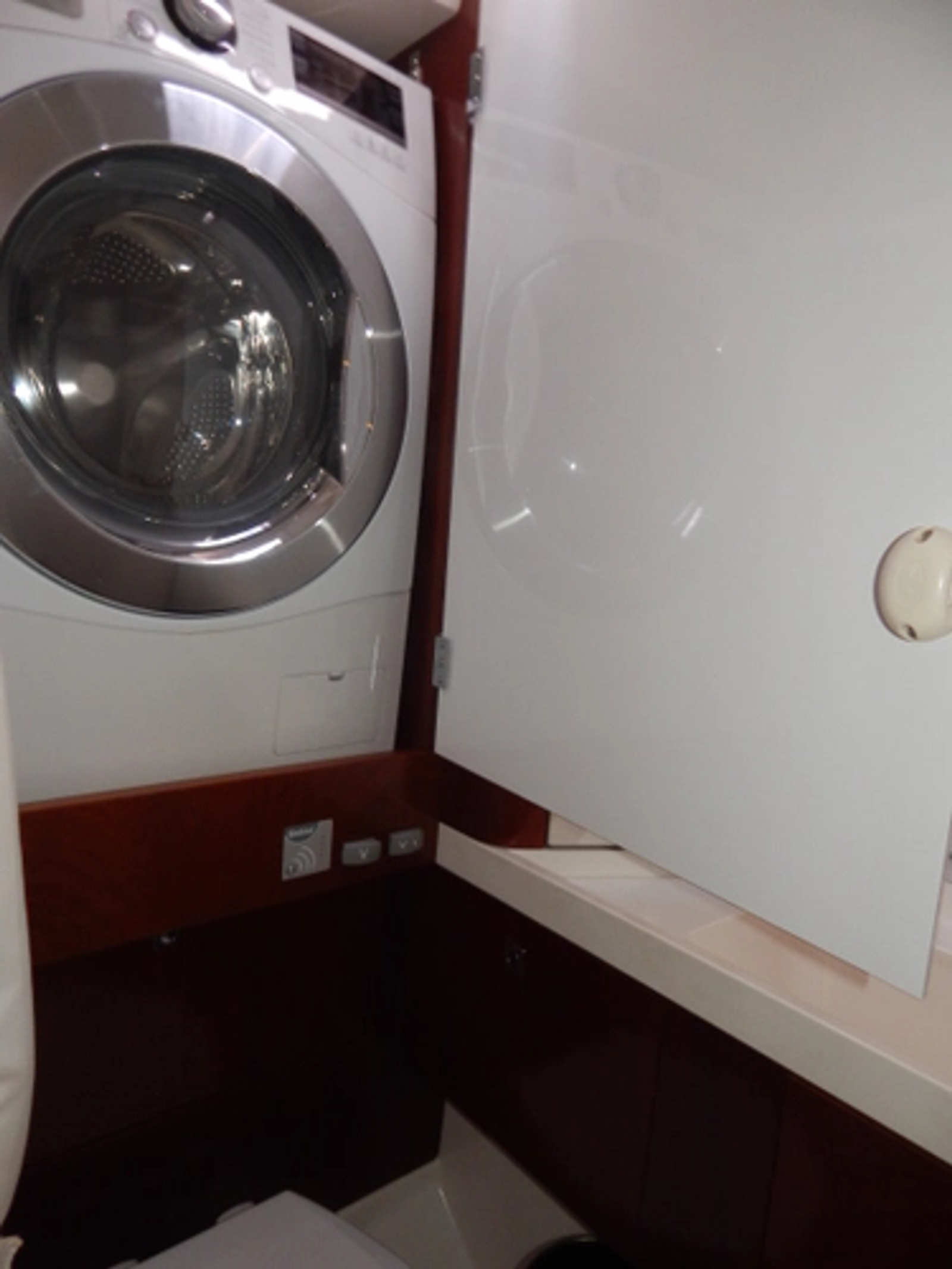

  • Washer/dryer unit in wall locker


  • Combo faucet/shower at sink


  • Jabsco Quiet Flush electric head


  • Holding tank with gravity drain


  • Overhead hatch


  • Overhead LED light


  • 125v and 230v outlets





• Personal items




• Boat can be boarded from opening side gates or drop down swim platform

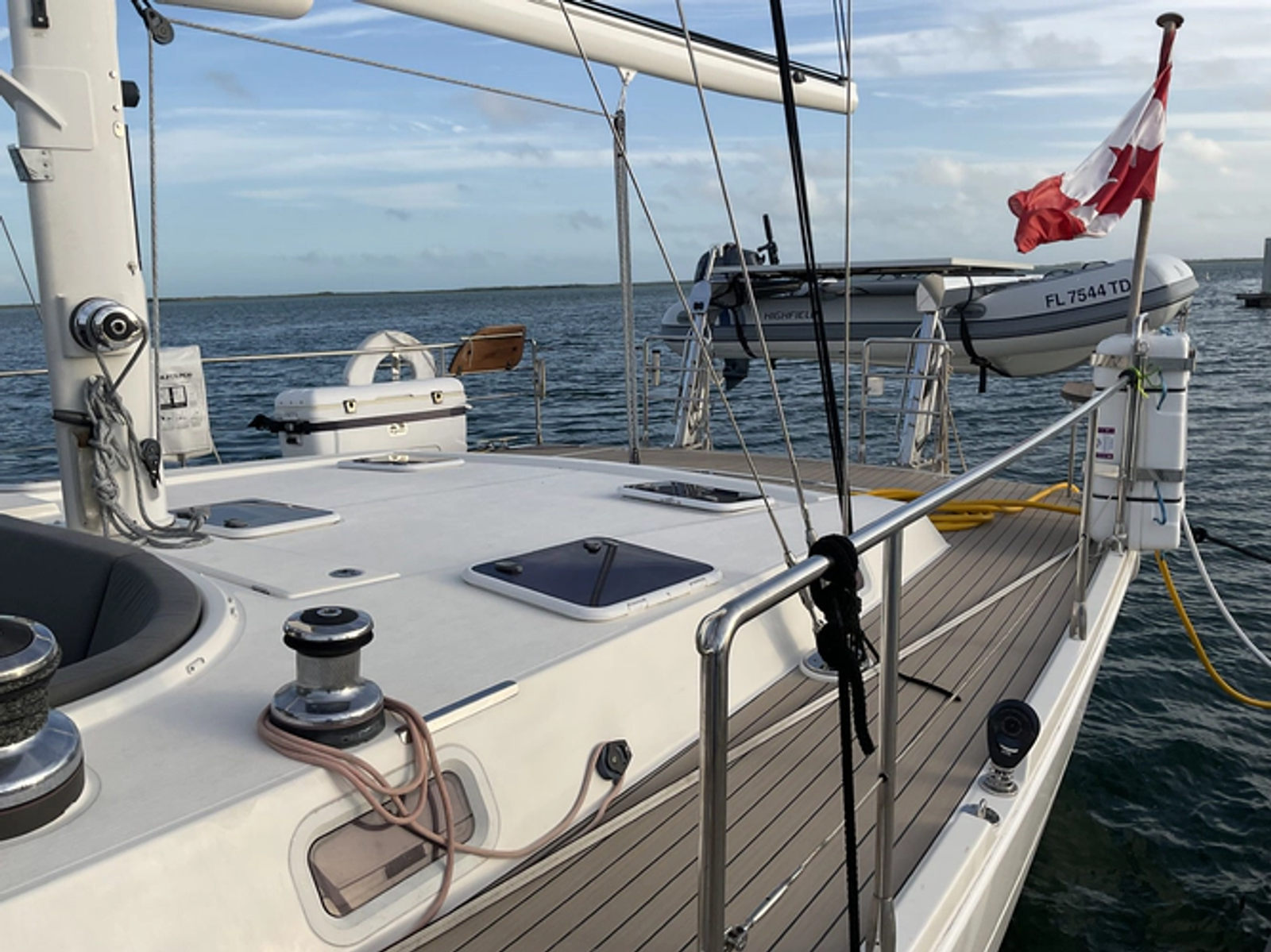

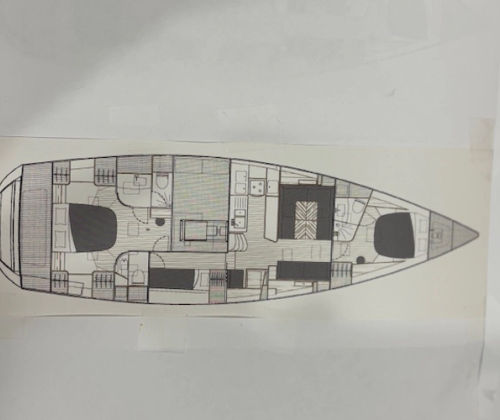

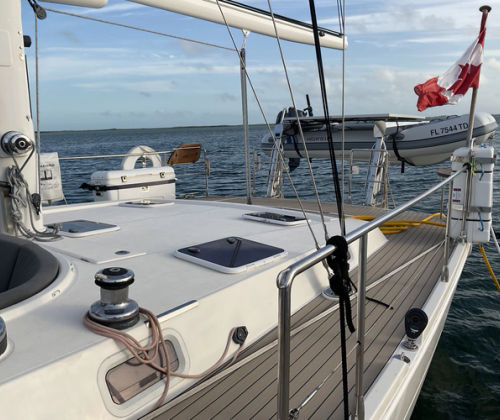

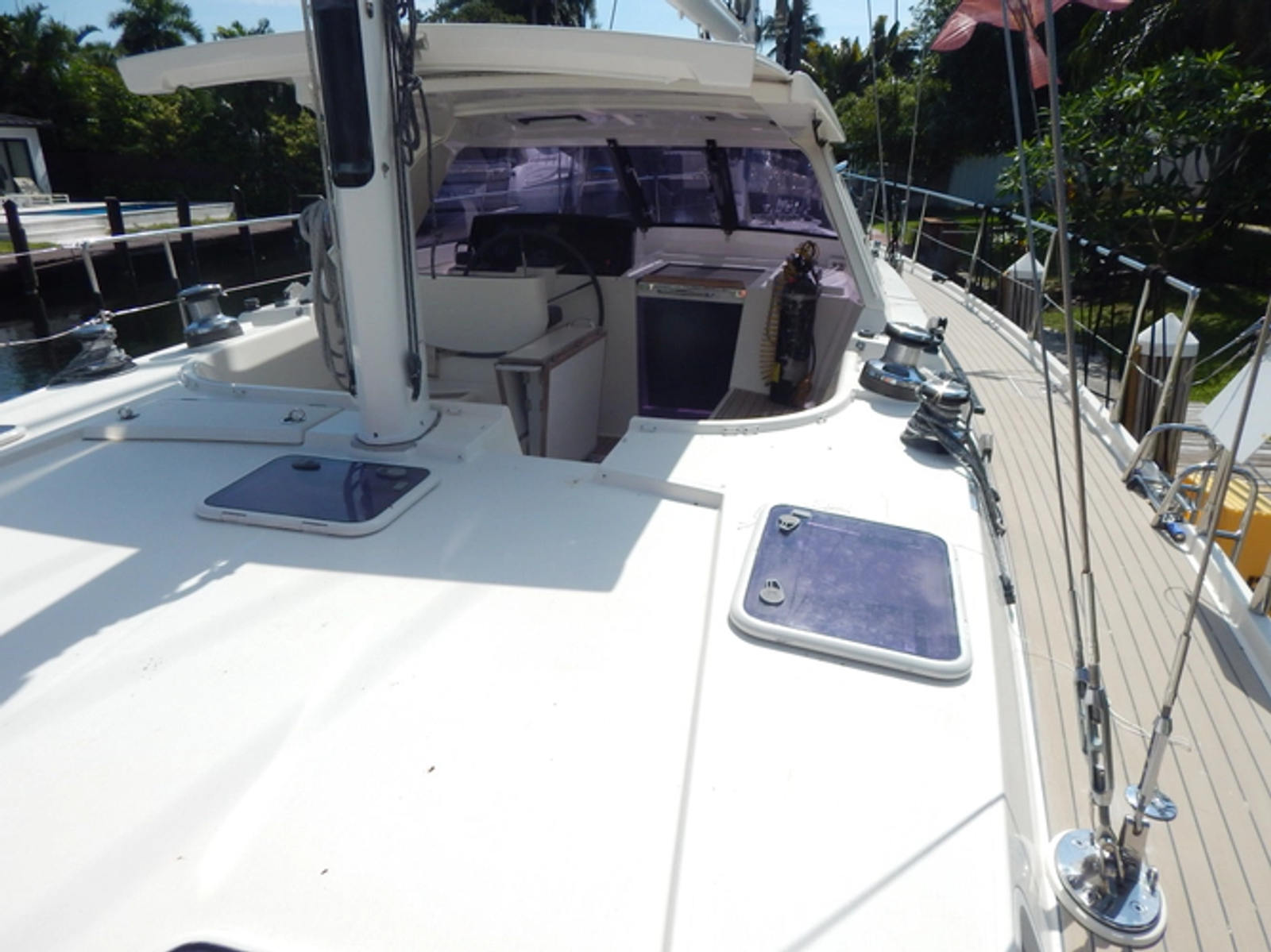

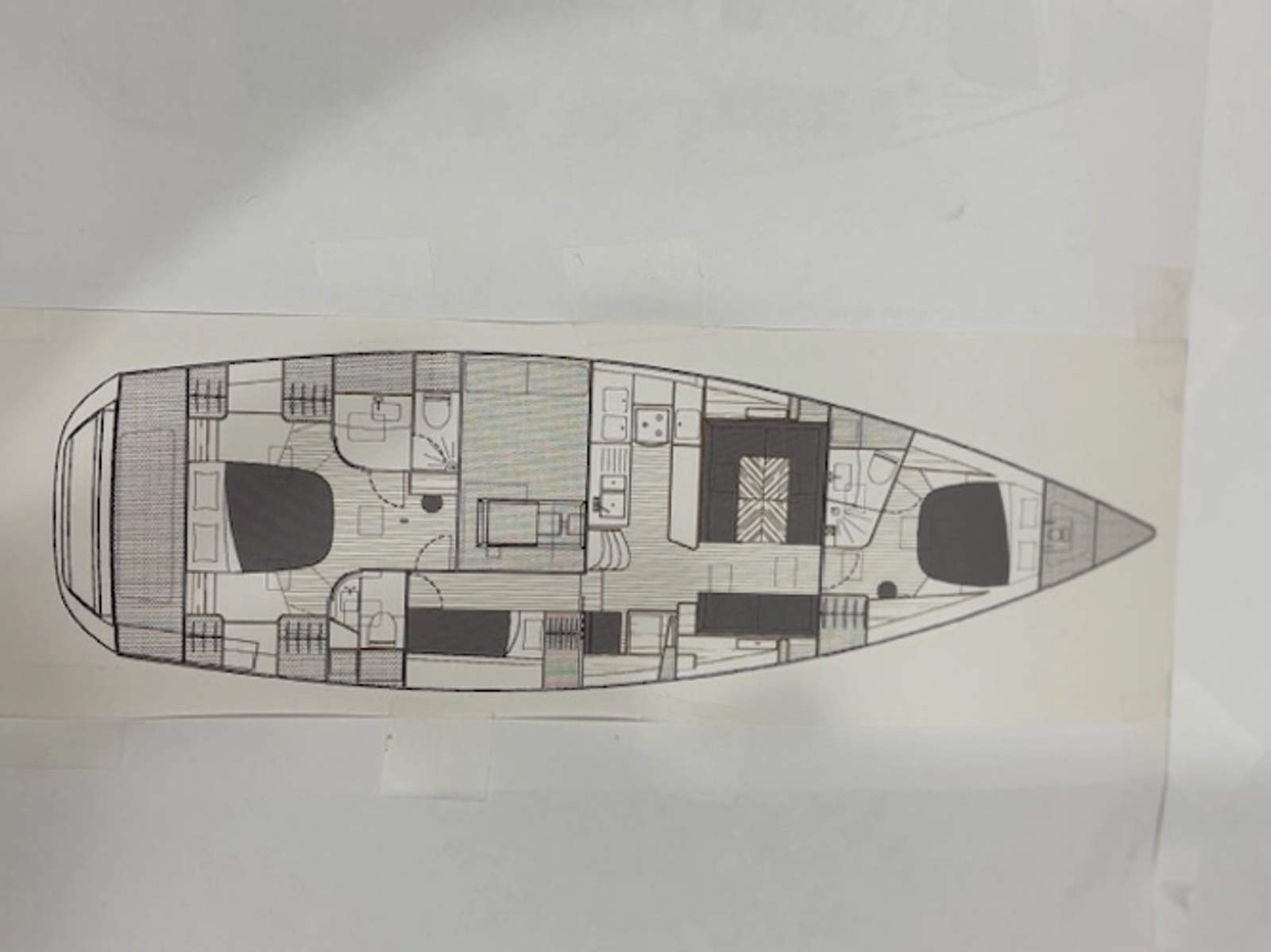

  Wide walkaround decks and large aft deck allow for easy movement around the vessel – entire vessel protected by solid SS railing and secondary wire railing
  Large center cockpit for entertaining or relaxing
  Main Salon is entered from protected companionway with drop down clear hatch board
  Upon entering vessel – U-shaped Galley is to Port with large Dinette forward of Galley

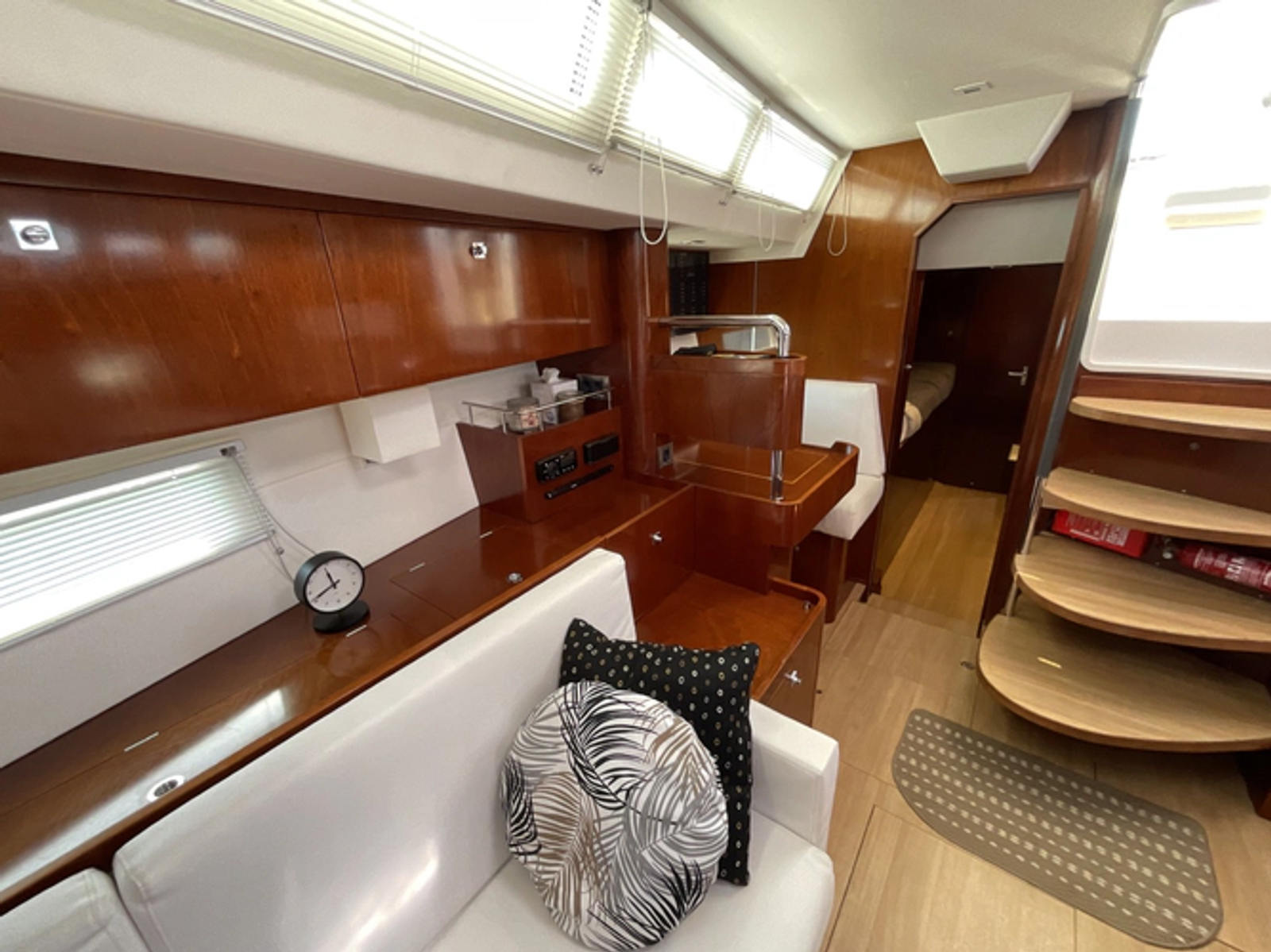

  Nav station is to Starbd and Full Settee is forward of the Nav area
  Numerous storage lockers, throughout the Salon
  Forward of the Salon is a watertight bulkhead and access to Forward double stateroom w/en-suite private head and stall shower
  Aft of the Salon is a walkway to Starbd containing hanging locker, Pilot berth and storage cabinets
  At the aft end of the walkway is the day head with shower – Also – washer/ dryer is located in an opening cabinet in the head compartment
  There is also a doorway through a water tight bulkhead to the Aft stateroom

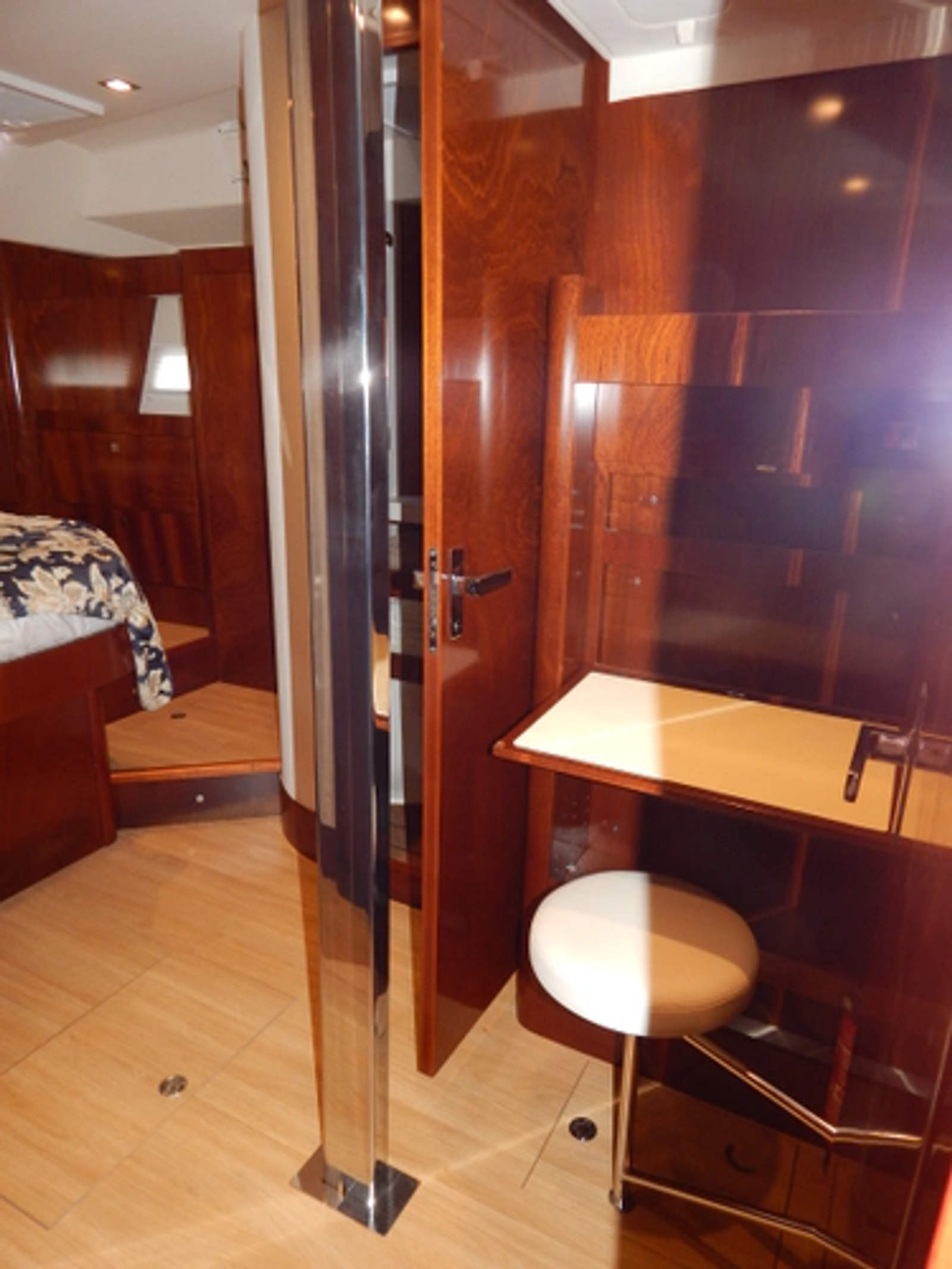

  Aft stateroom contains a double centerline berth, numerous storage lockers and a large private head with separate stall shower




• MASTER STATEROOM ( Aft or Forward)
  GUEST STATEROOM ( Aft- or Forward
  OTHER – Pilot berth in hallway to Aft cabin, Single berth in Salon

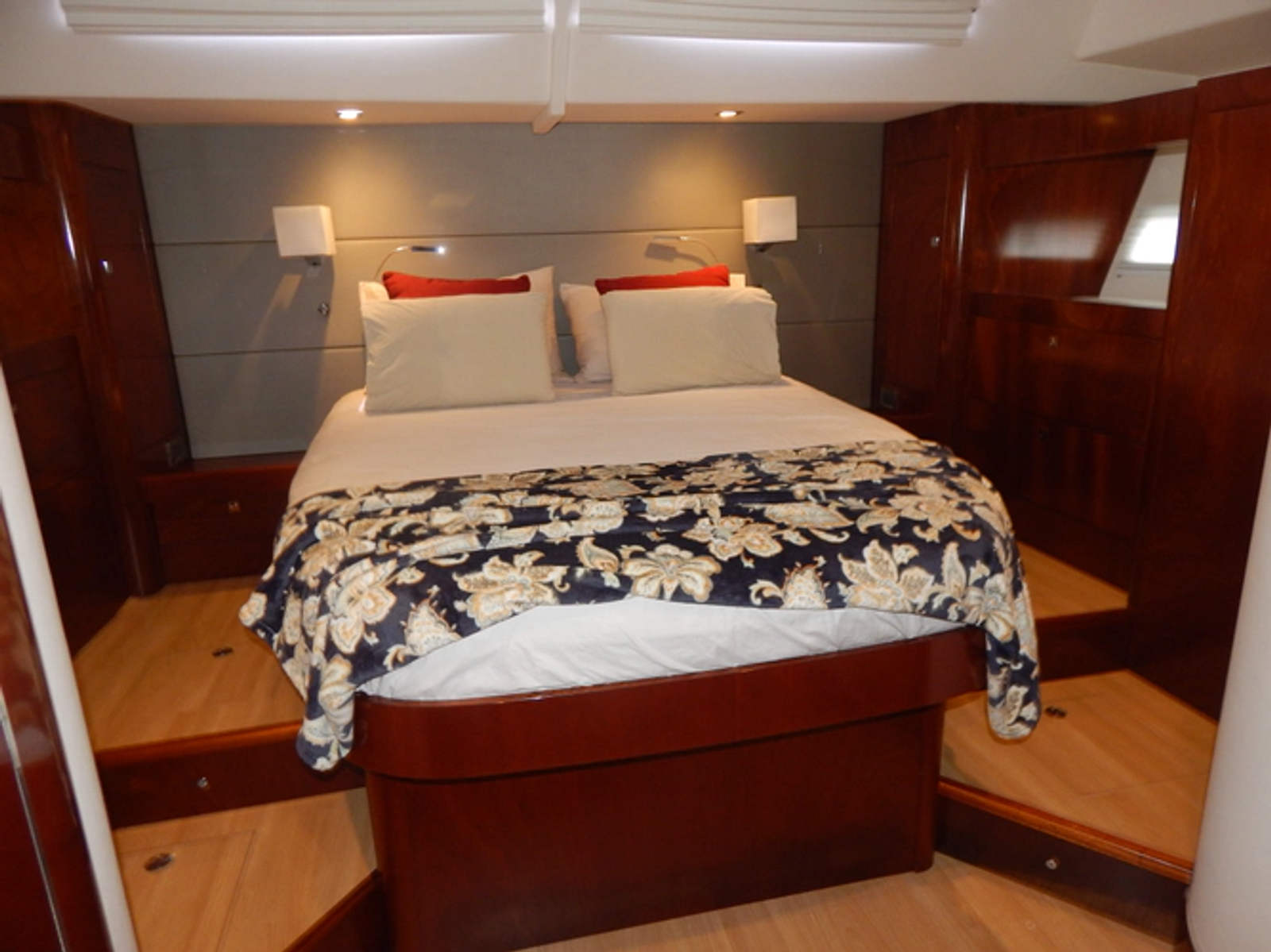

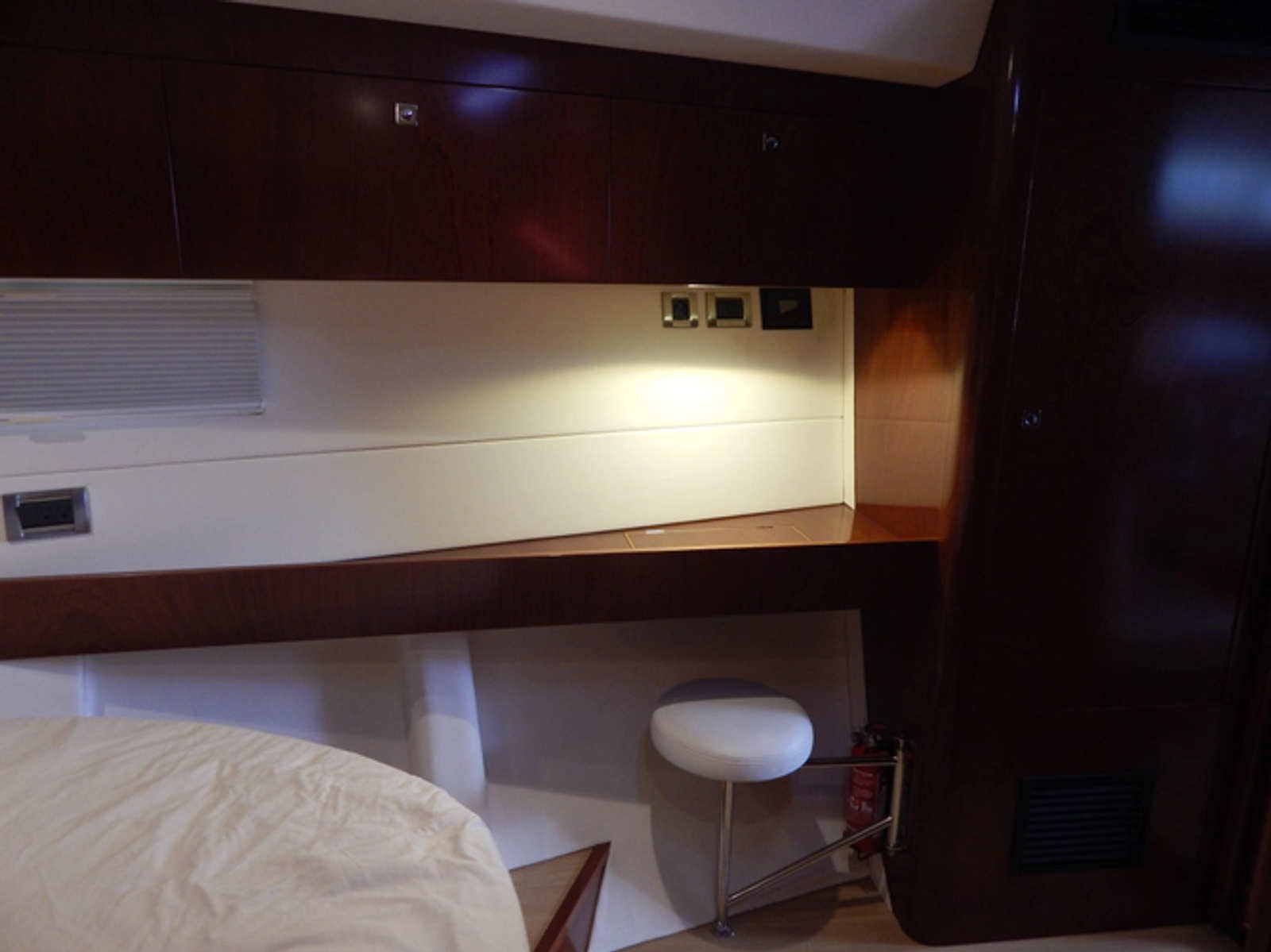

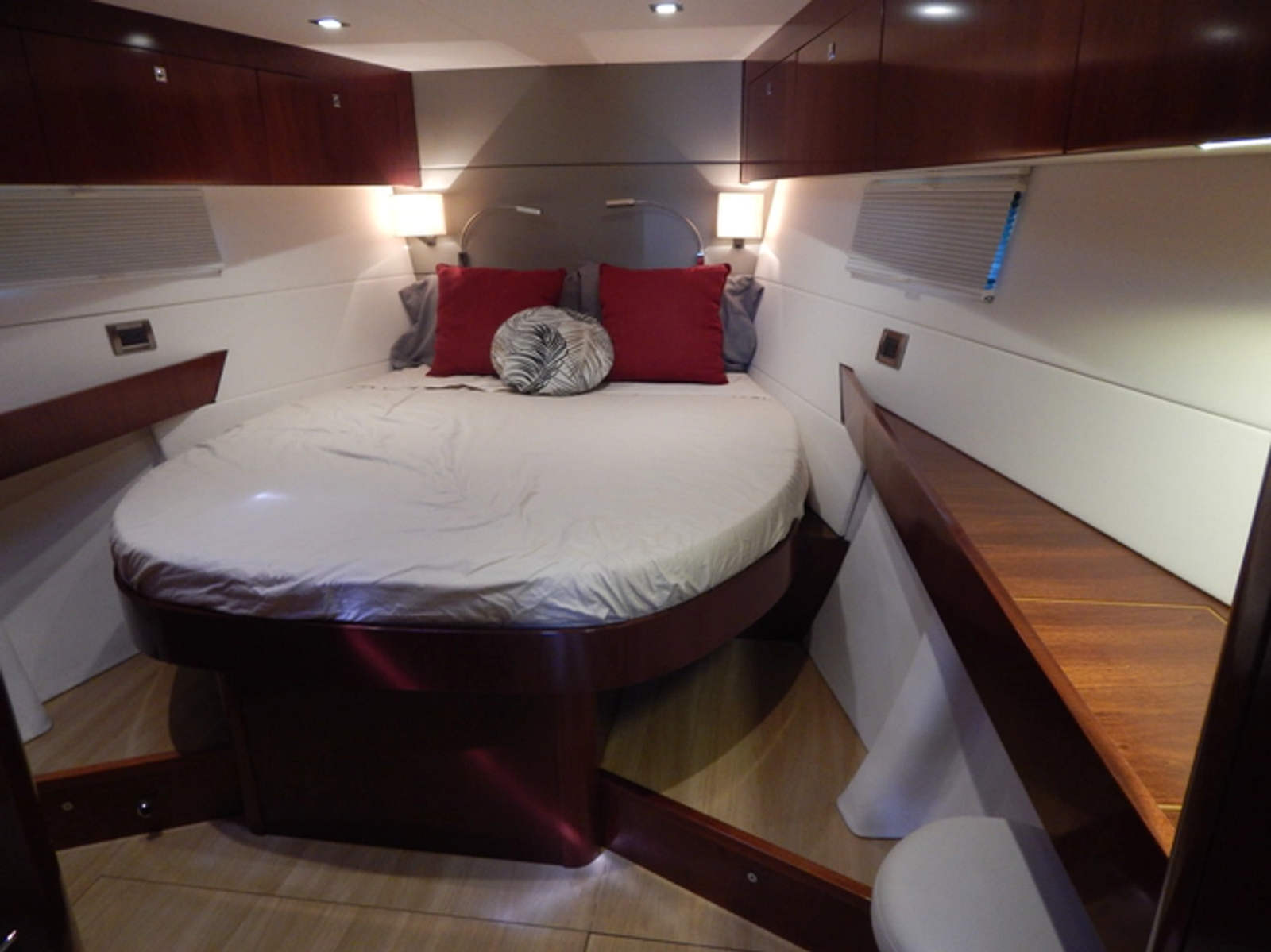

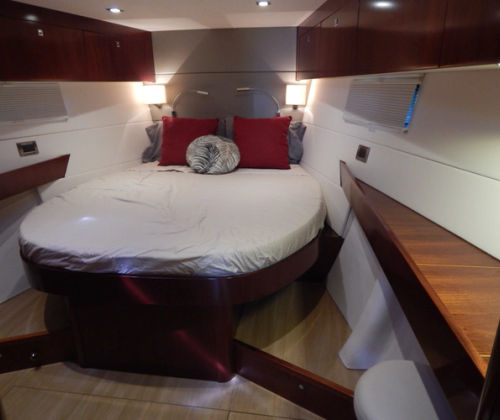

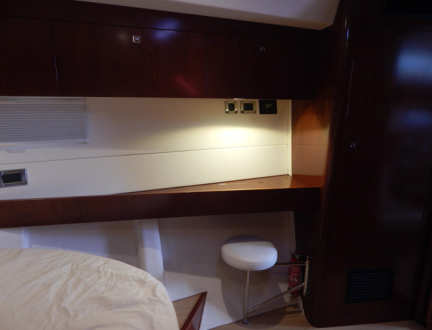

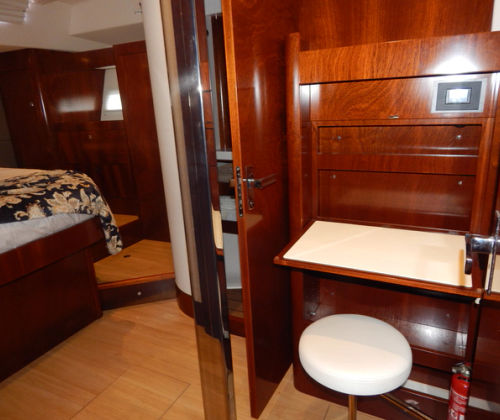

  FORWARD CABIN:
  Centerline double berth with large storage space underneath
  Numerous storage lockers and Hanging locker

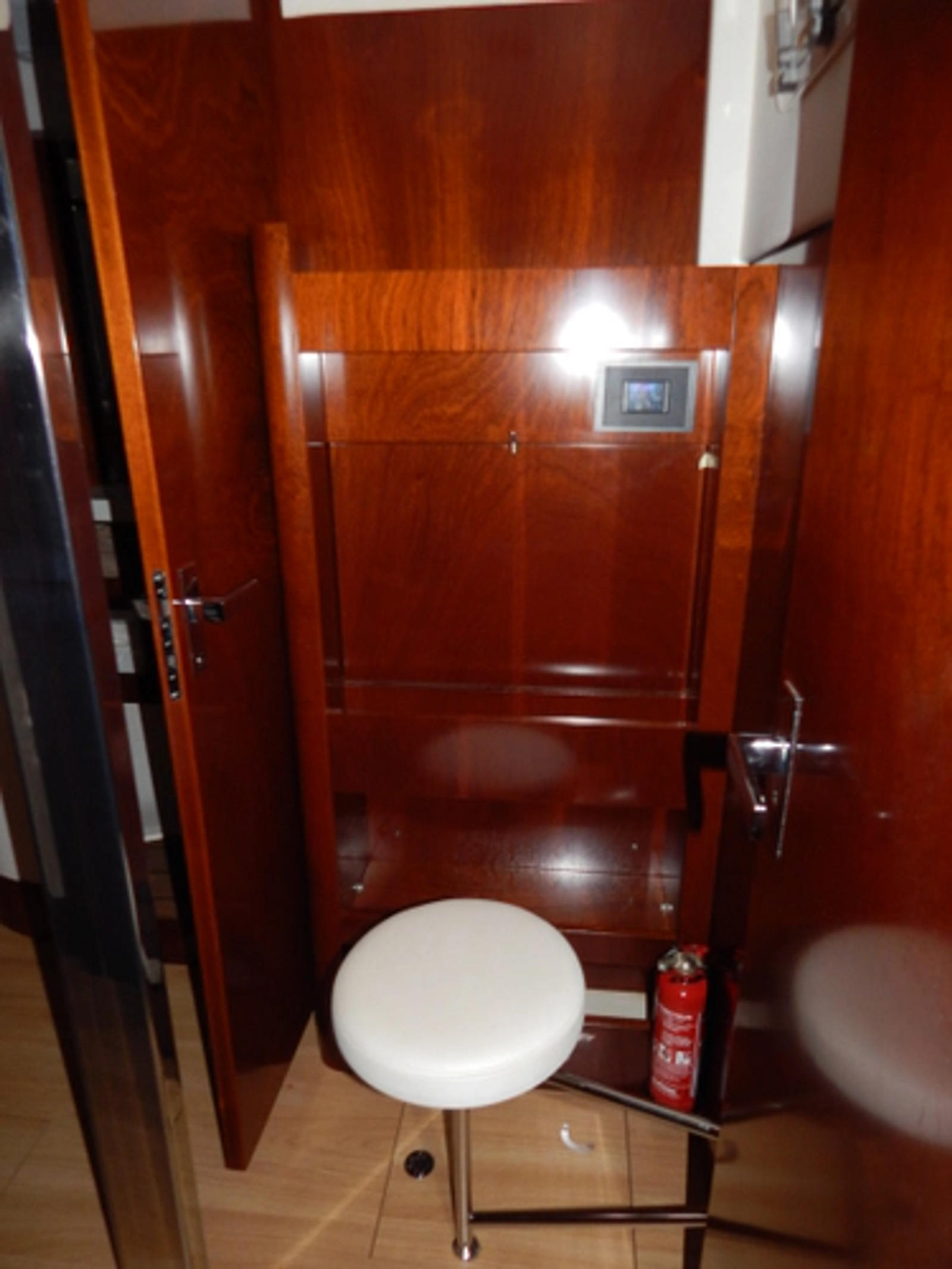

  Vanity with mirror
  (2) overhead hatches
  (3) 125V outlets. (1) 230v outlet
  (4) overhead LED lights, (2) reading lights, (2) wall lights
  13,000 BTU HVAC w/control panel
  Cabin sole access houses (2) transducers and autopilot flux gate compass

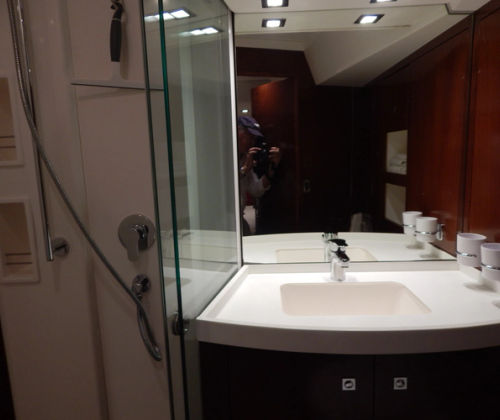

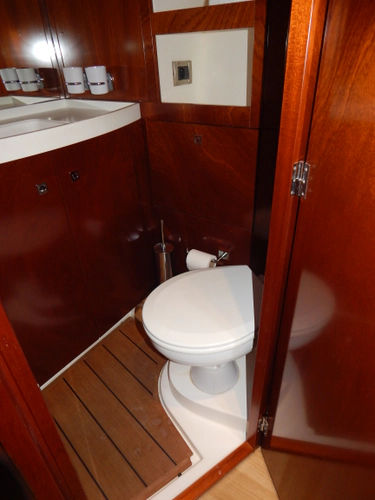

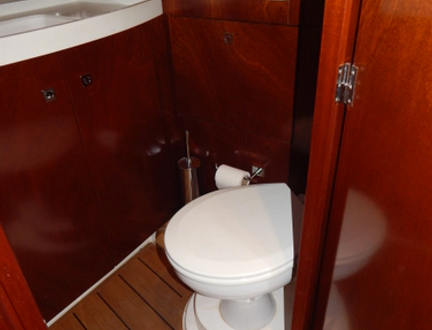

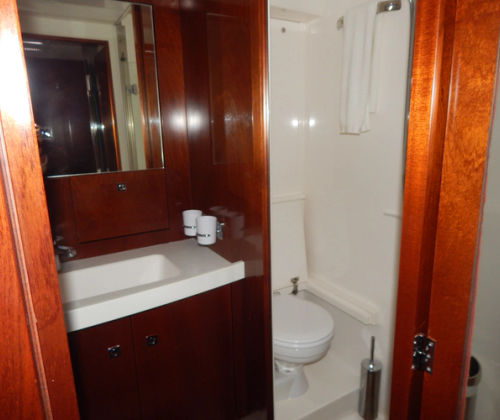

  Forward Head:
  Jabsco Quiet Flush electric head
  Separate shower stall
  125v and 230v outlets
  Sink w/faucet
  (3) overhead LED lights
  Gravity drain holding tank

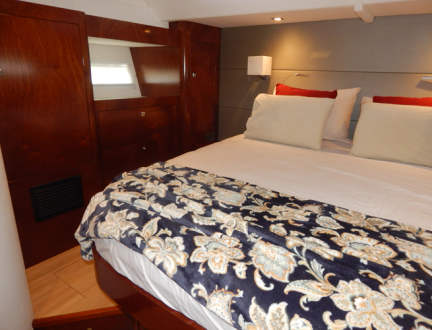

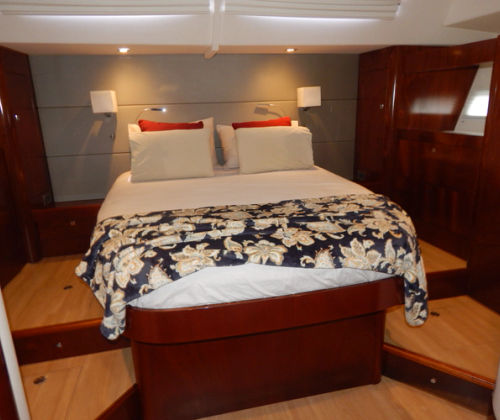

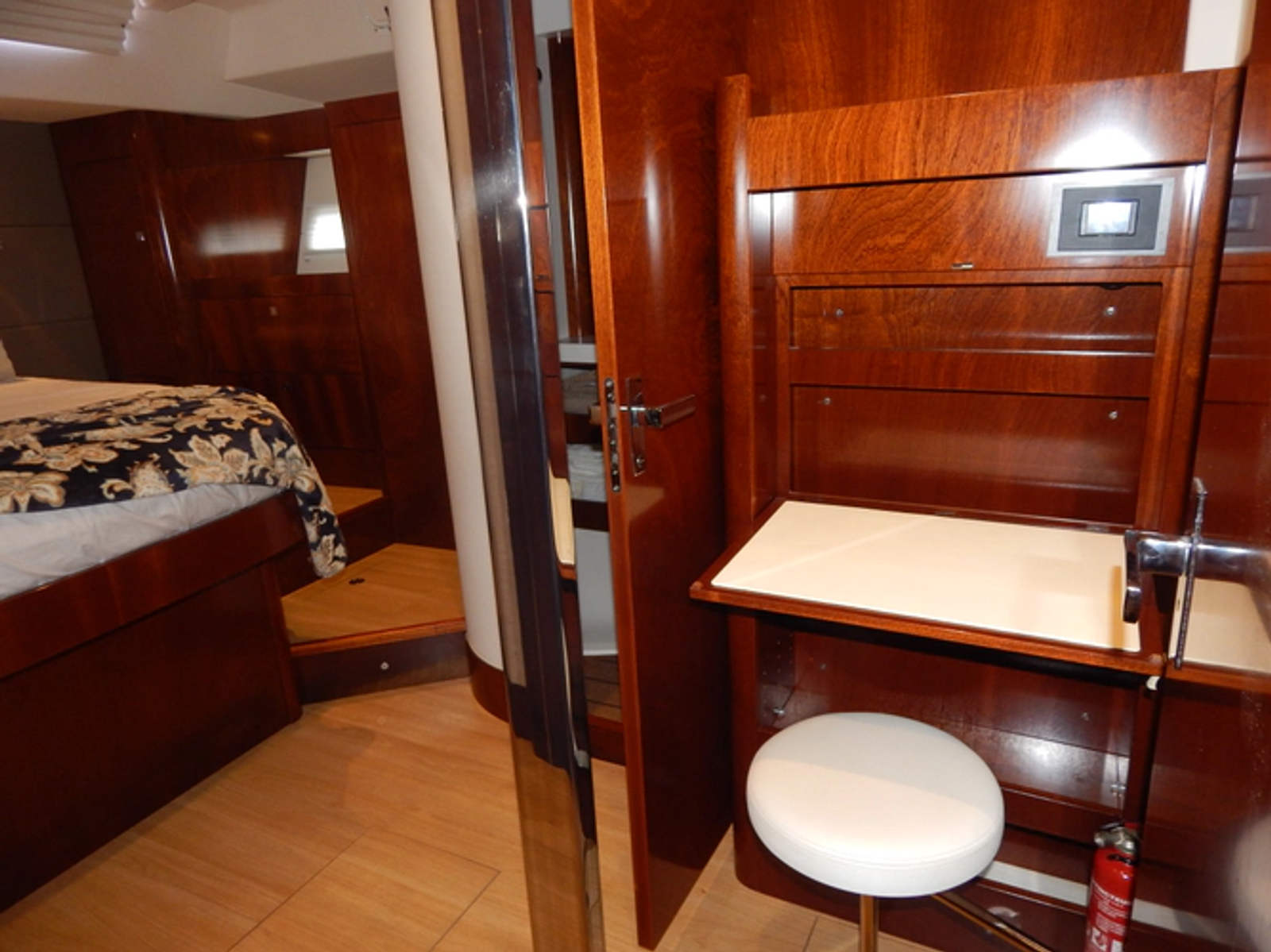

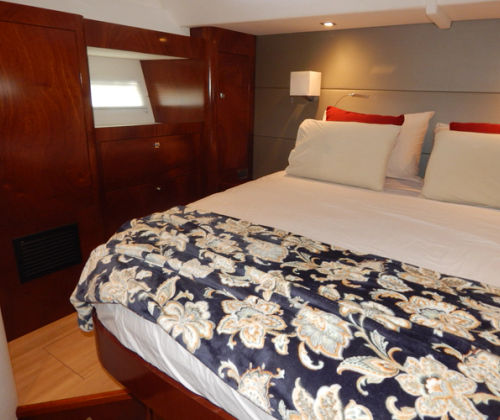

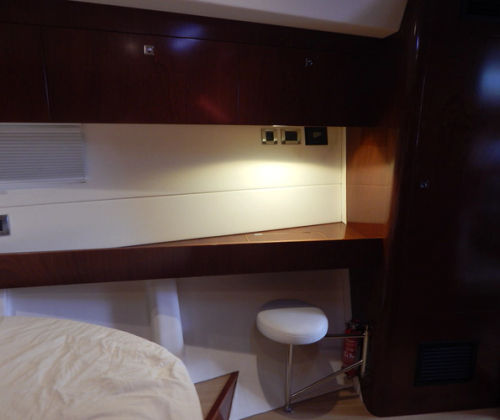

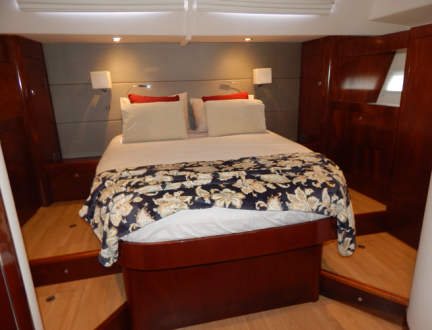

  AFT CABIN:
  Double centerline berth with large storage compartment underneath




  Numerous storage lockers and Hanging lockers
  Vanity with mirror
  (2) overhead hatches
  (3) 125v outlets, 230v outlet
  (4) overhead LED lights, (2) reading lights, (2) wall lights
  13,000 BTU HVAC with control panel

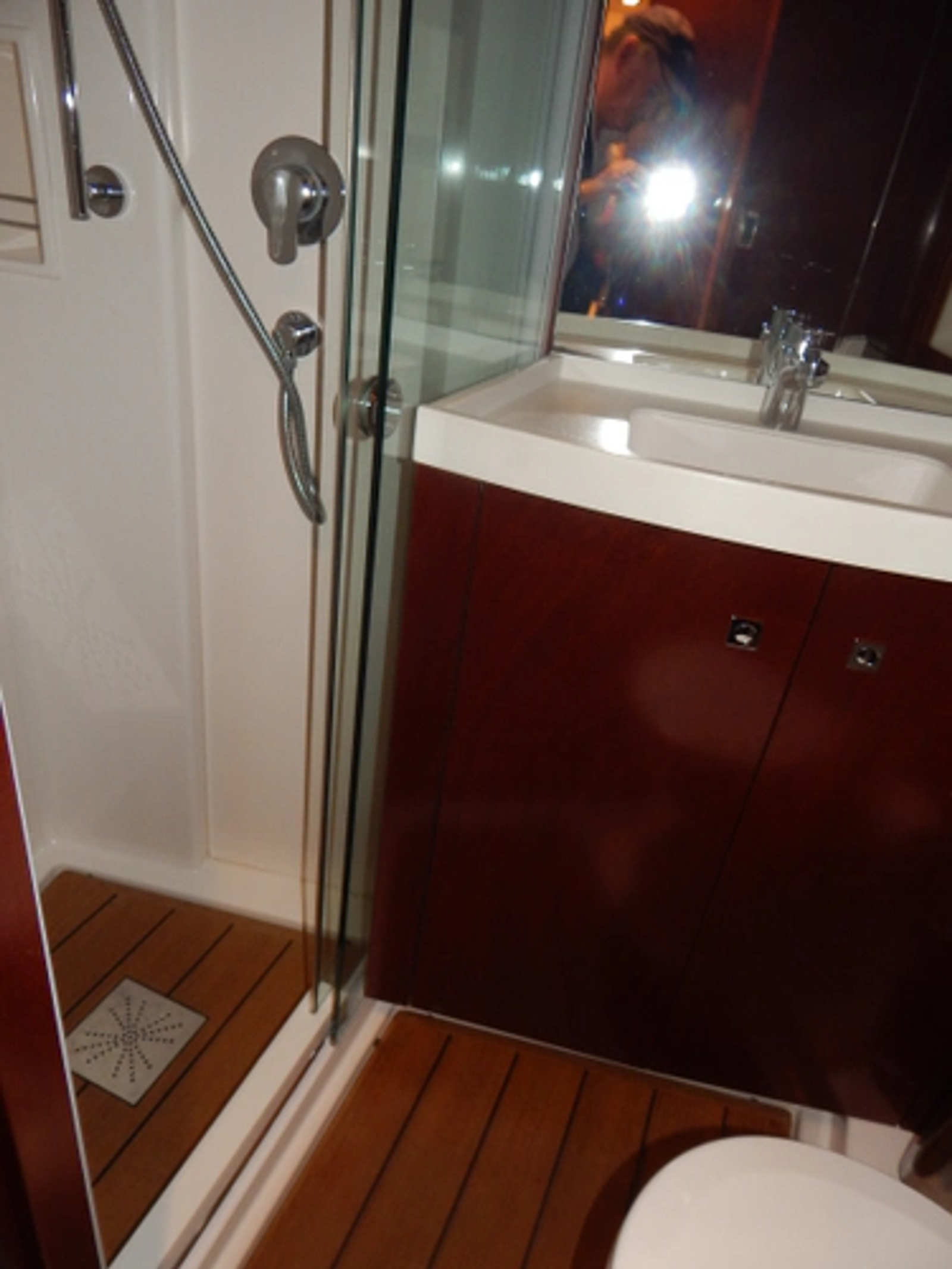

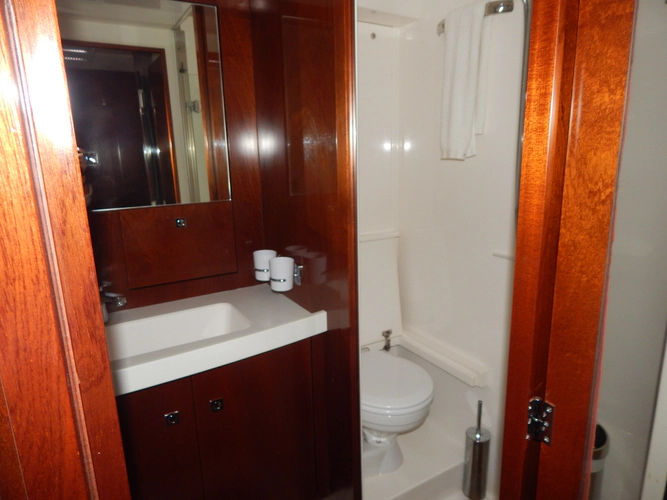

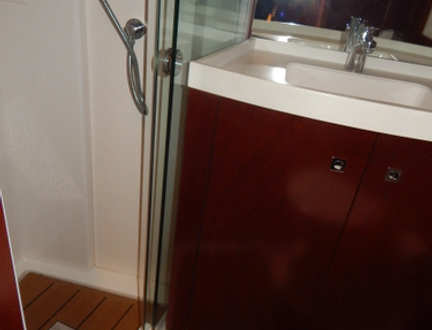

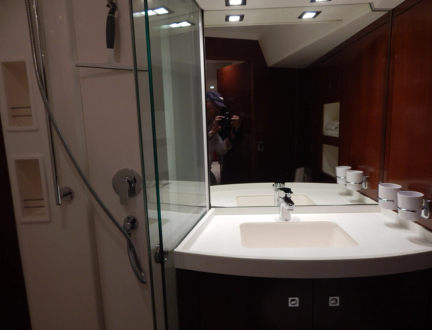

  MASTER HEAD:
  Enclosed stall shower and Jabsco Quite Flush head
  125v outlet, 230v outlet
  Sink with faucet
  Opening port
  (3) overhead LED lights




• Designer - Amel/Berret-Racoupeau
  LOA ……………………..56.43 ft …17.3 meters
  LWL …………………….48.72 ft …14.95 m
  BEAM ……………….. 16.37 ft … 4.99 m
  DRAFT ………………. 7.22 ft … 2.20 m
  DISPLACEMENT … 47,399 lbs .. 21,500 kg

  BALLAST ………….. 13,007 lbs .. 5,900 kg
  BRIDGE CLEARANCE.. 69.88 ft….. 21.3 m …
  TANKAGE: Fuel .. 238 gal……. 900 litr

  Water … 211 gal ……800 litr
  Holding … 63 gal … 240 litr
  Sail Area …………..1,366 ft sq …..126.91 m sq ..
  Engine … Volvo Penta D3-1101-G.. 110 hp ( 1195 hrs)
  Generator Onan 11MDKBN 11KW (1318 hrs)
  Solar - (2) Victron solar panels mounted at aft deck
  Water maker , Bow thruster
  Fully air conditioned – 39,000 BTU



•

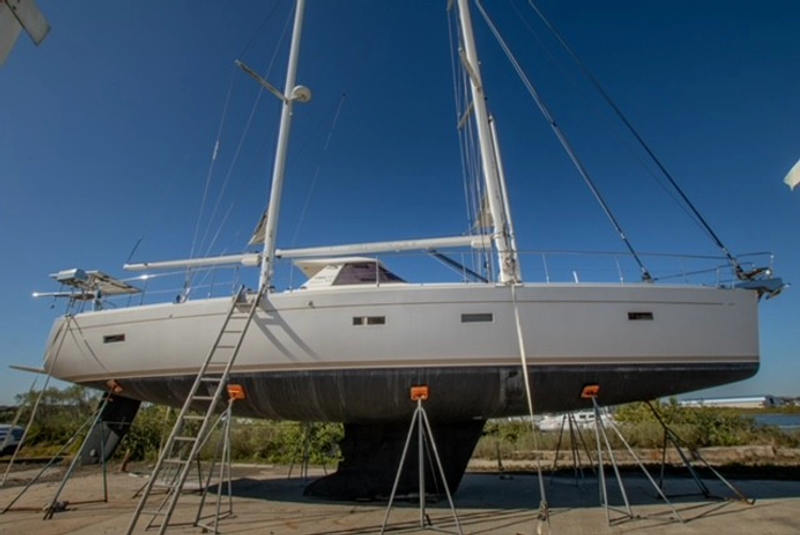

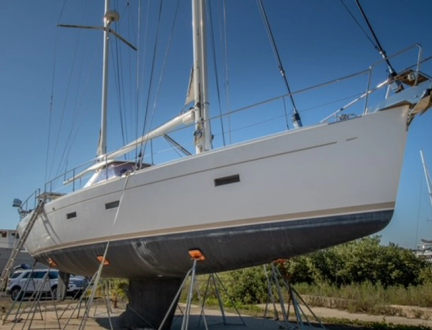

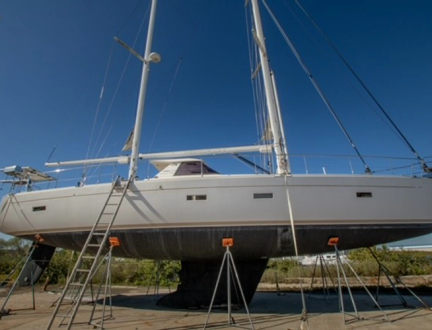

  • Hull and deck are hand laid FRP ( Fiberglass Reinforced Plastic)


  • Hull below the waterline is solid hand laid fiberglass – Deck is cored with fiberglass above and below coring material


  • Although the deck is fiberglass – Amel finishes the deck in a non- skid pattern made to look like teak decking. Both in color and texture.


  • All deck hardware is marine grade.

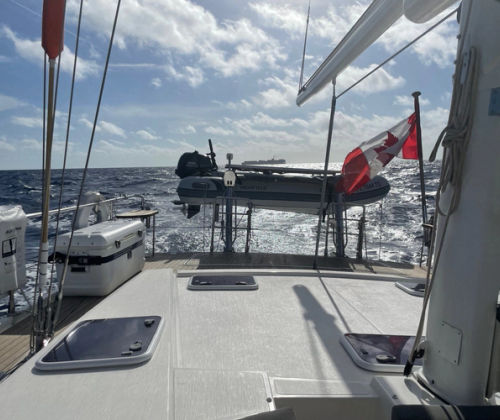

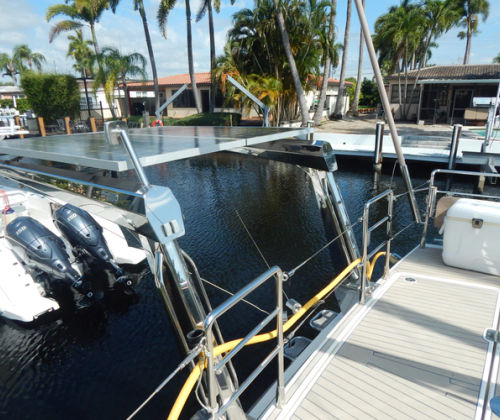

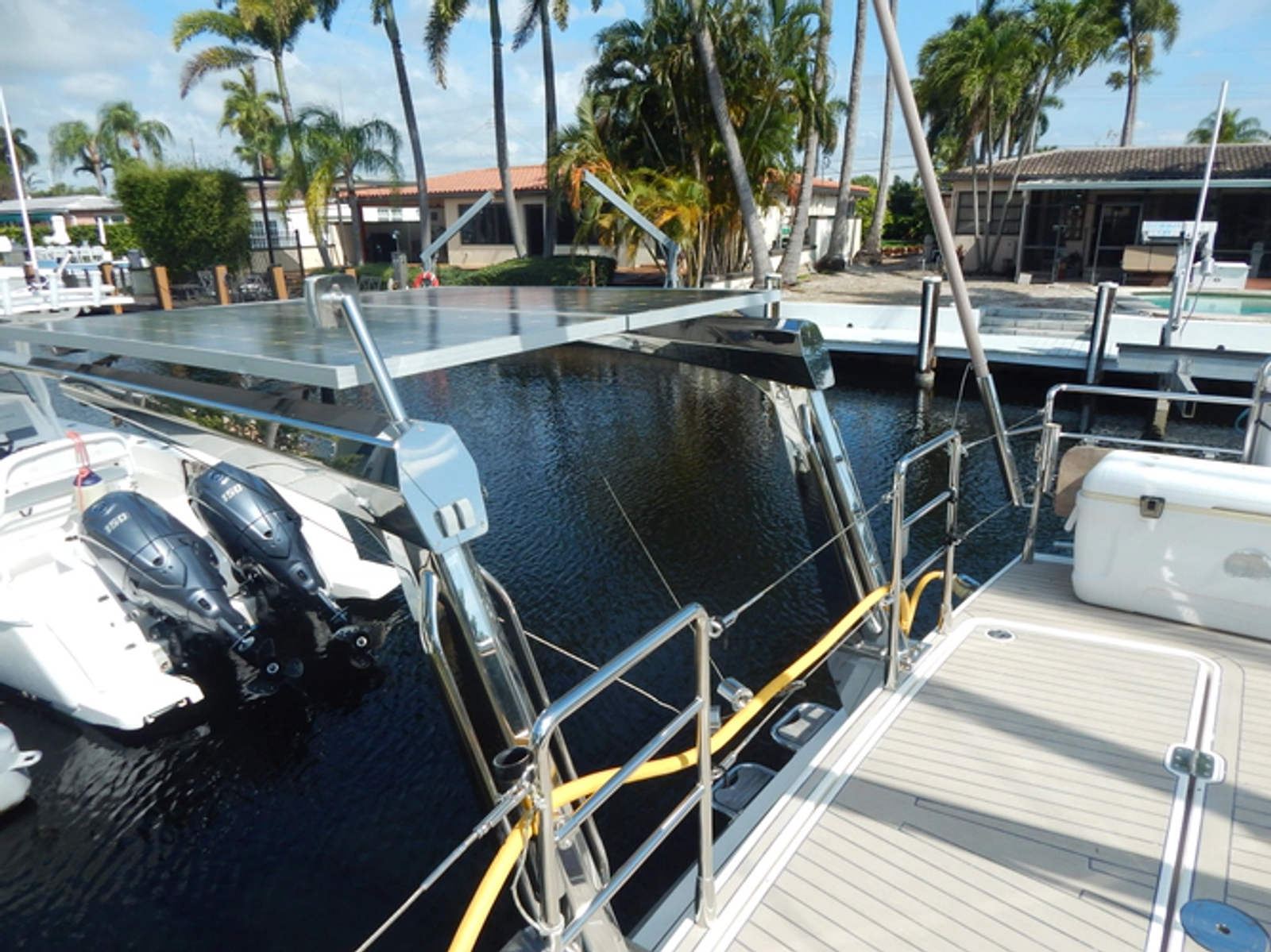

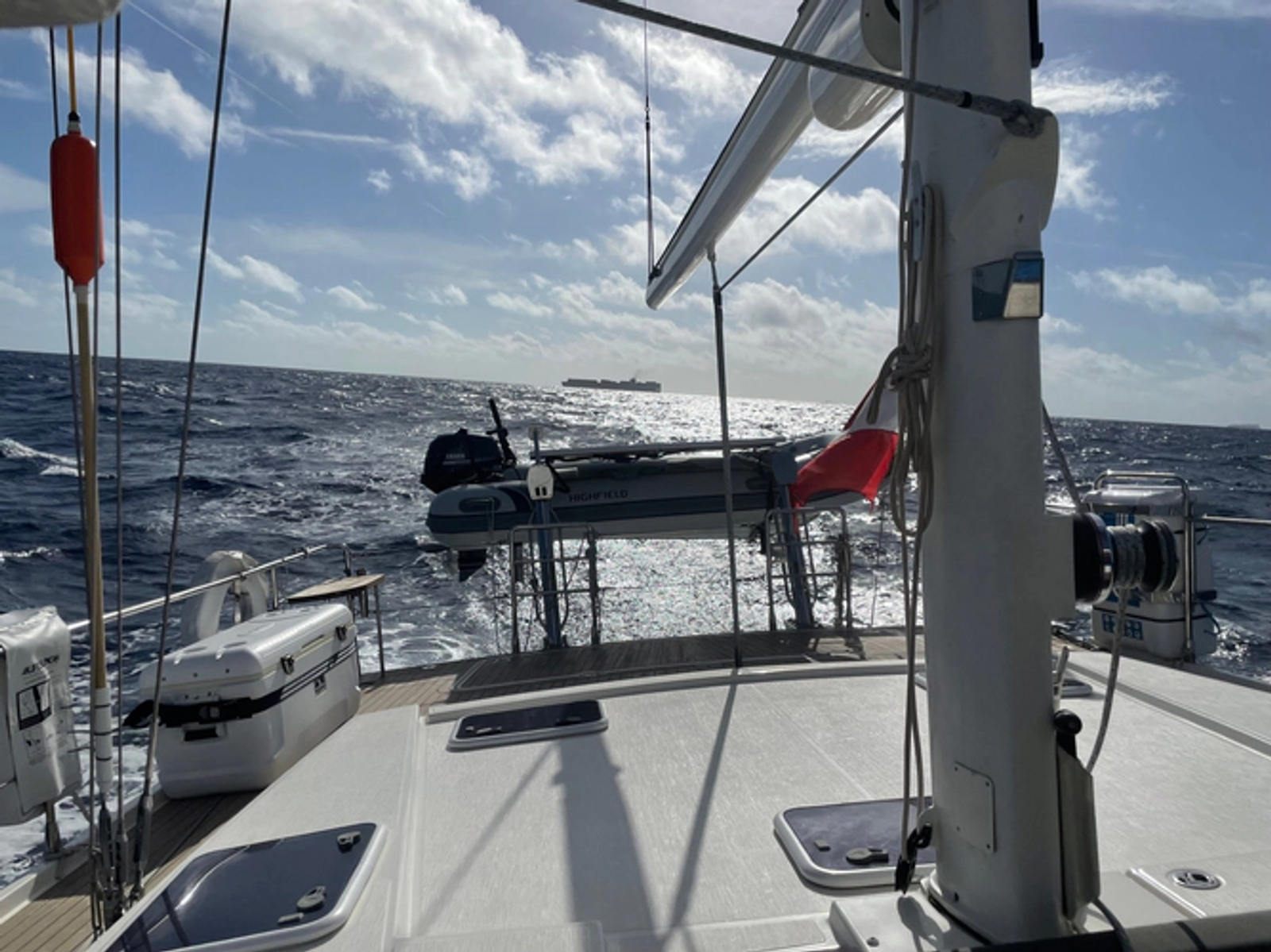

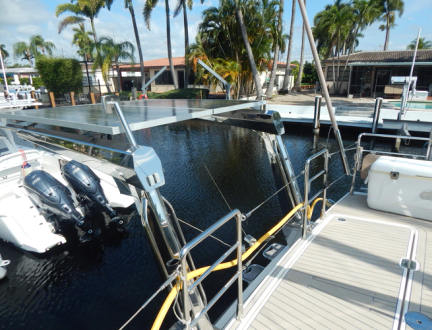

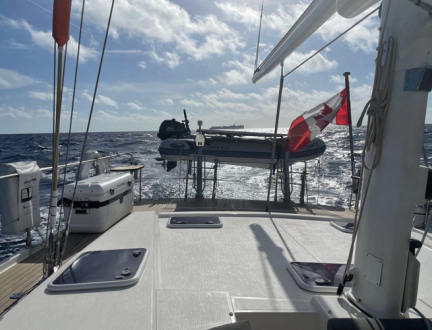

  • Anderson electric Dinghy davits - Stainless steel


  • Electric folding swim platform

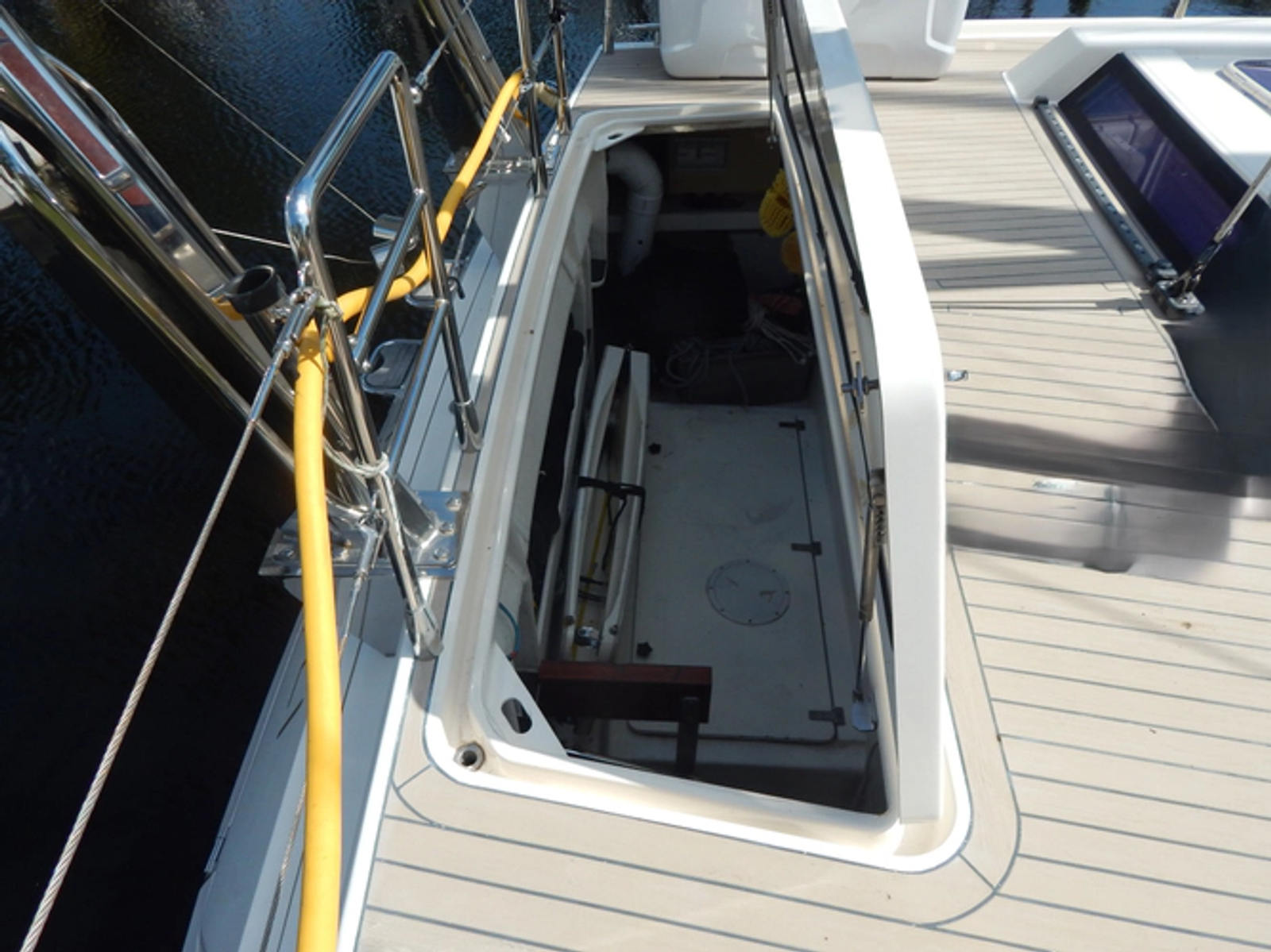

  • Large transverse lazarette at aft deck for storage- full beam - w/access to quadrant and steering components


  • Propane locker


  • Skeg hung rudder


  • (8) Stainless Steel mooring cleats

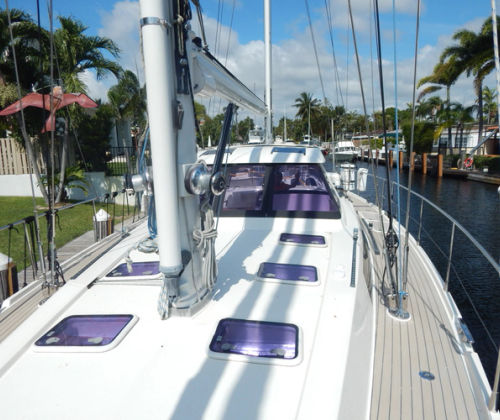

  • (12) opening hatches, (6) opening ports


  • (4) large lockers on deck




•

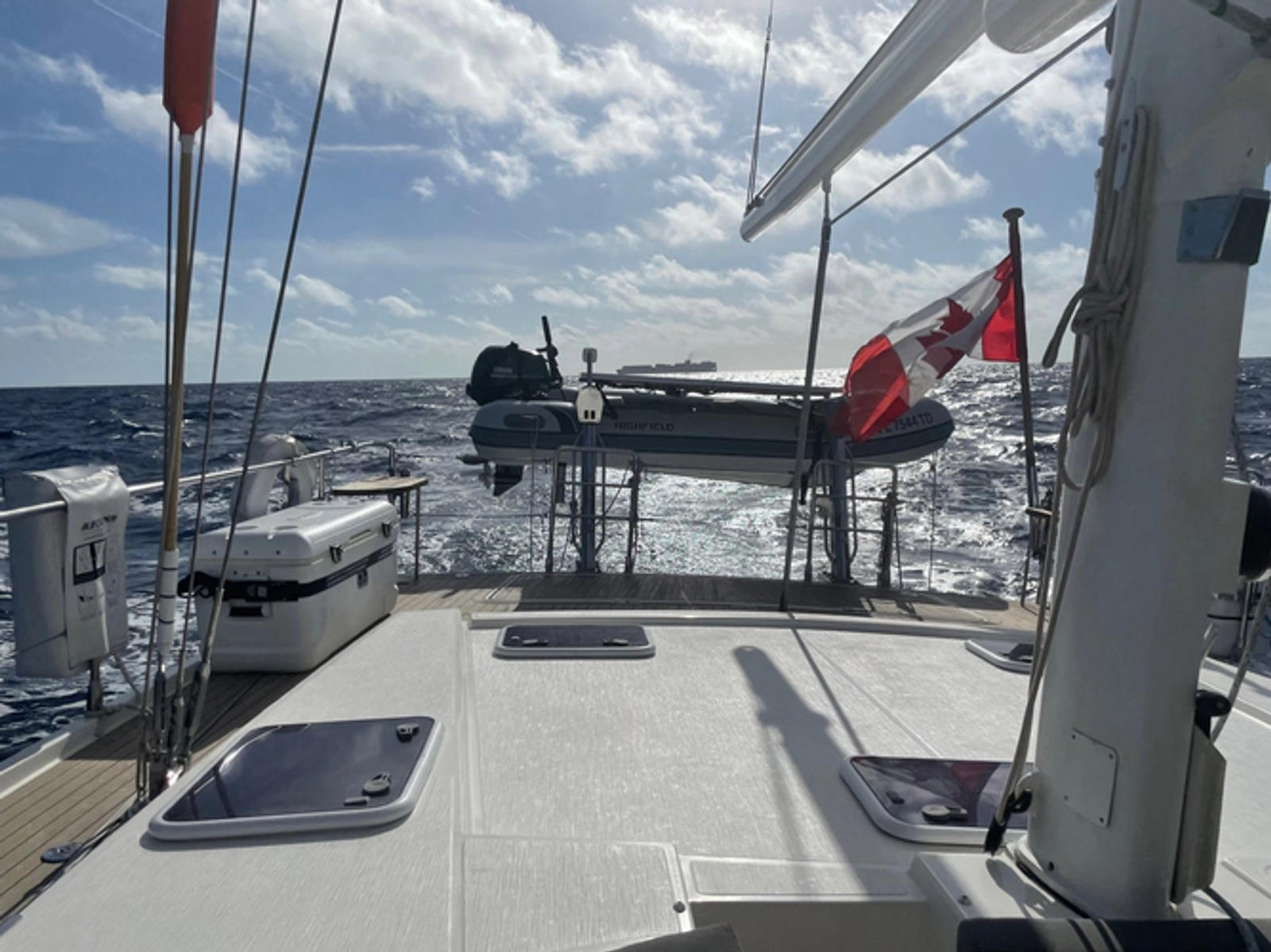

  • Highfield tender – 11 ft w/ Yamaha-20 hp engine ( never used)


  • Life raft in hard canister ( needs re-certification)


  • Washer/dryer combo unit – built into day head compartment




•

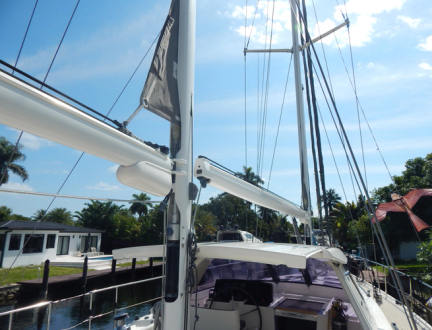

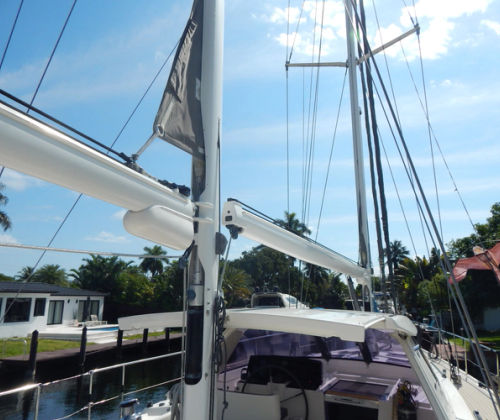

  • Ketch rigged with 2 headsails
    Sail area:
    Genoa - 796 sq ft ….74 m sq
    Main -500 sq ft … 47 m sq
    Staysail – 231 sq ft …..22 m sq
    Mizzen – 312 sq ft ….29 m sq





  Asymmetric Spinnaker

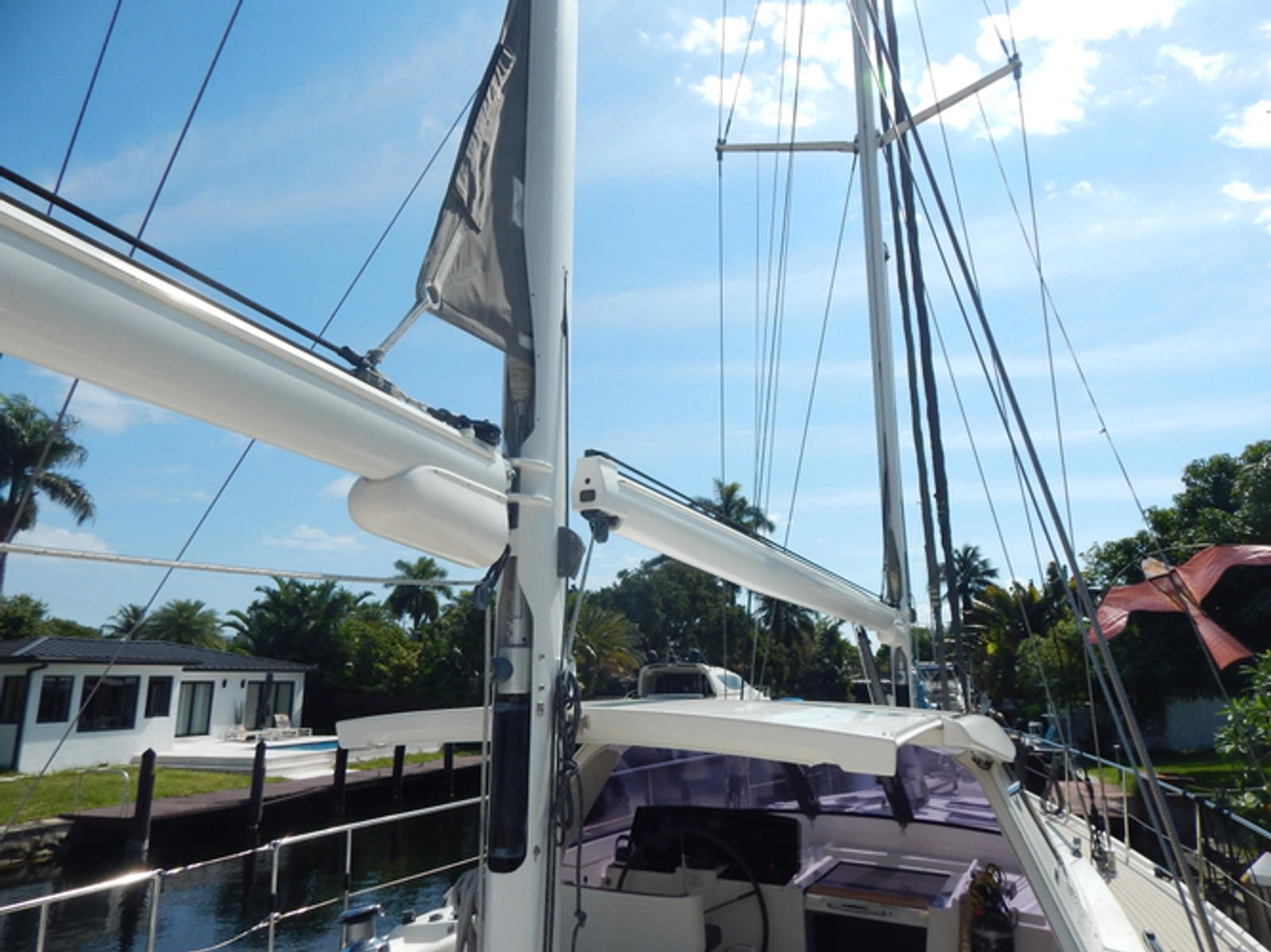

  • Main sail; - Amel 24v electric furling and reefing, operated from helm controls w/manual back-up – in-mast system.


  • Mizzen sail - Amel 24v electric furling and reefing, operated from helm controls w/manual back-up - in-mast system


  • Genoa - Amel 24v electric furling and reefing, operated from helm controls w/manual back-up


  • Stay sail - Amel 24v electric furling and reefing, operated from helm controls w/manual back-up


  • Asymmetric spinnaker -in storage bag – stored off the boat
    Winches:


  • Electric primary sheet winches in cockpit (2)


  • Manual secondary sheet winches in cockpit (2)


  • Electric main sheet winch (1`)


  • Mizzen sail sheet winch (1) -manual


  • Main mast winches (2) manual


  • Mizzen mast winch (1) manual

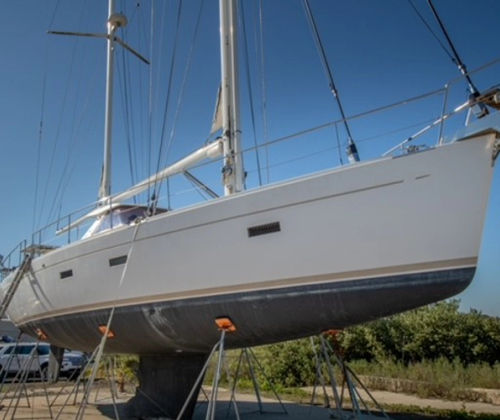

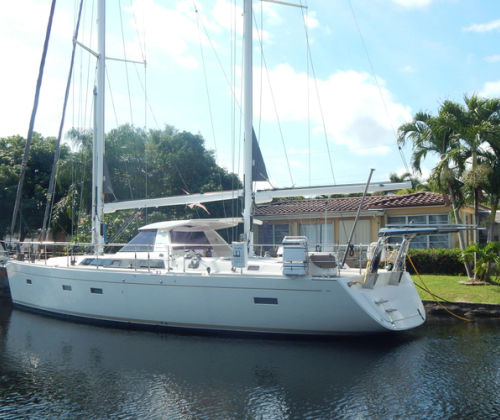

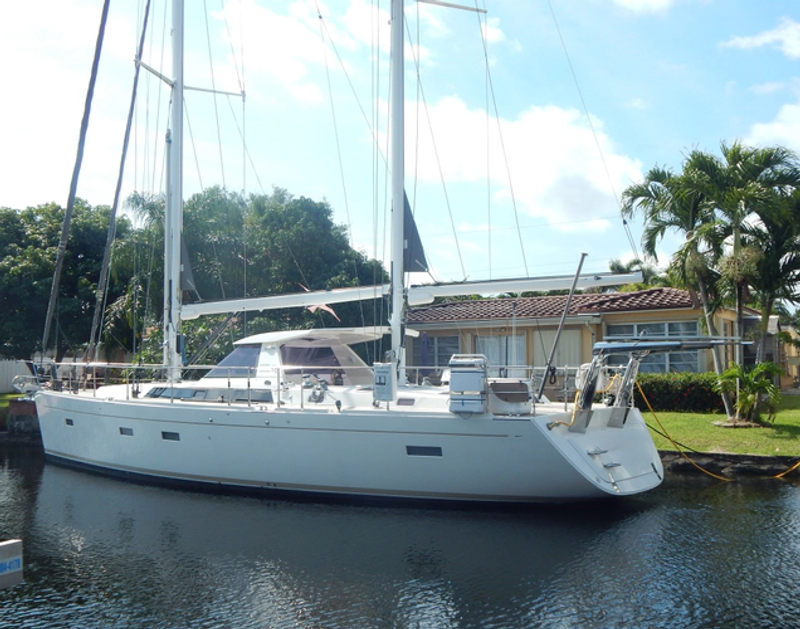

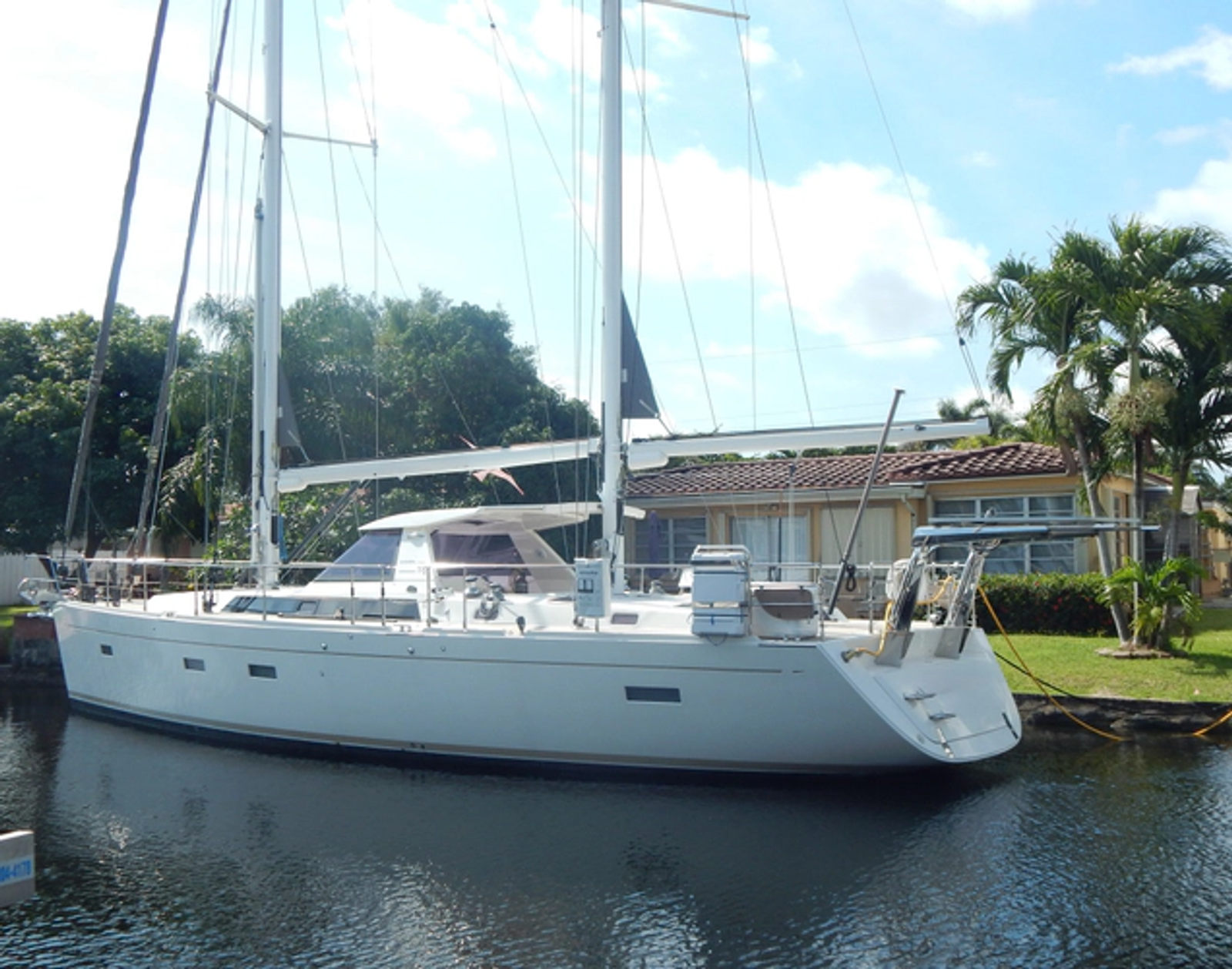

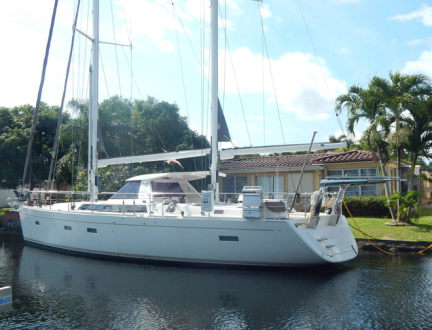

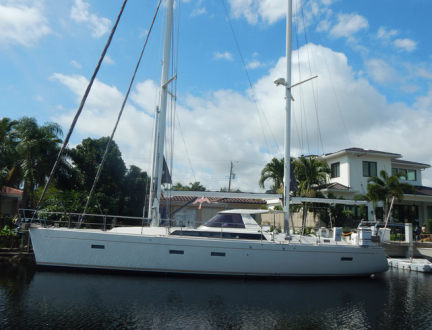

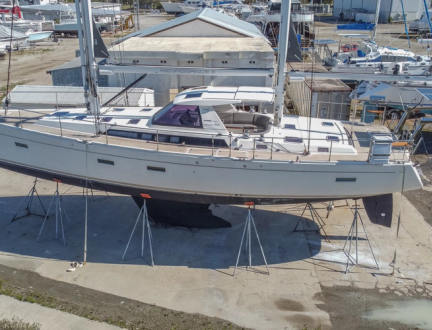

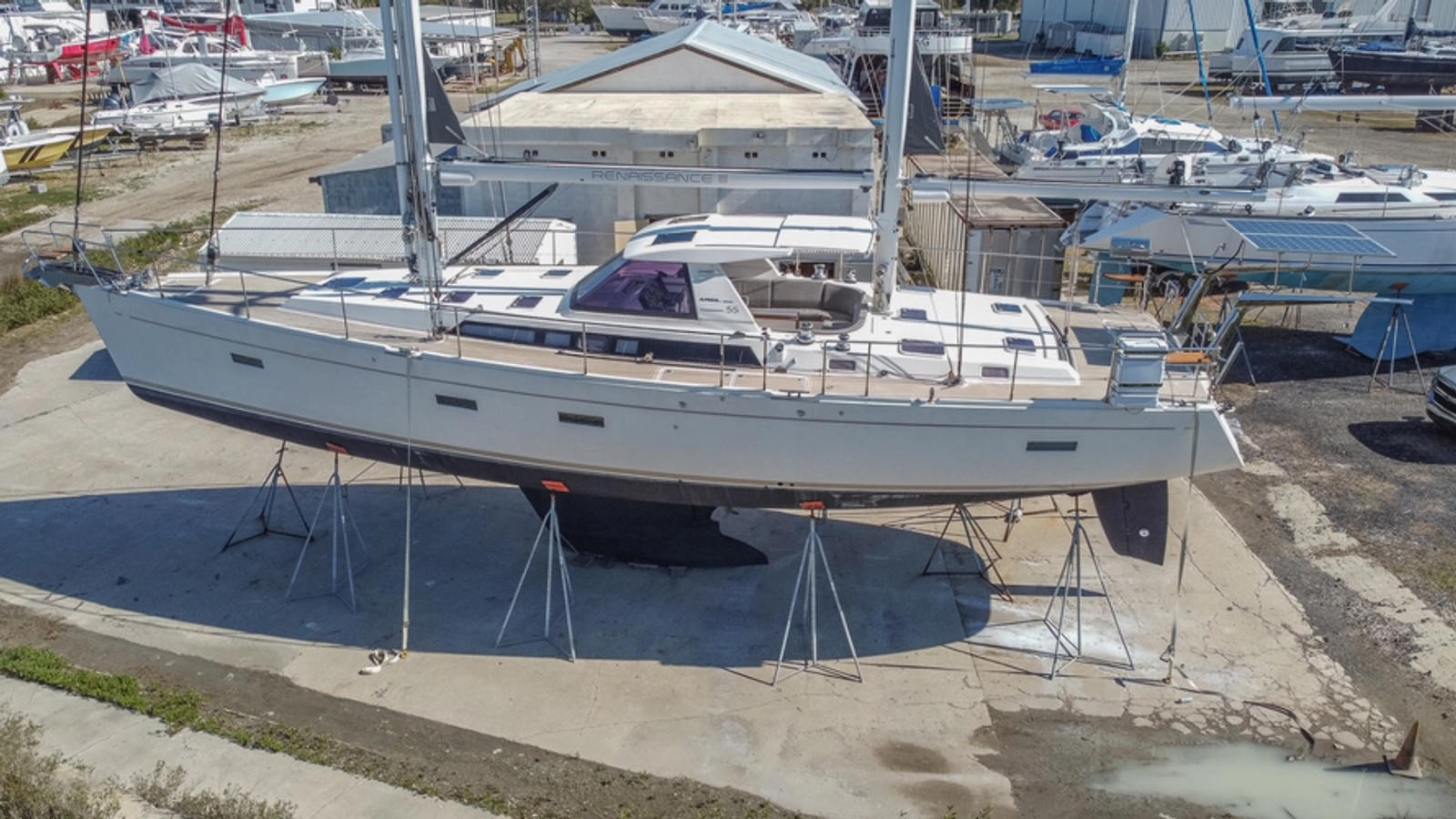

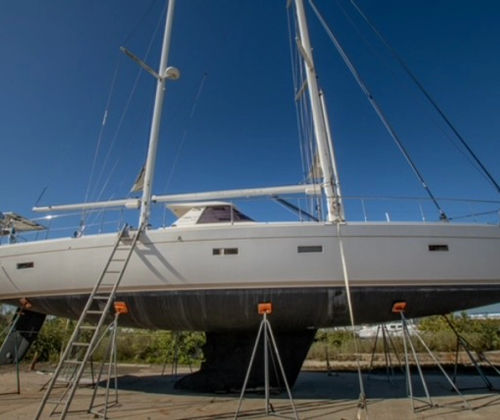

This Amel -55 is one of the most versatile and sea worthy boats ever built by the premier builder of Blue Water cruising yachts -Chantiers Amel , of LaRochelle, France. She was designed and built as a cutter rigged ketch to the guiding principles of Henri Amel – A cruising yacht should be robust, comfortable, and easy to maneuver.
Carabelli has been exceptionally well maintained by a professional company to the highest standards, and is probably the cleanest, best equipped Amel of her type , or newer, you will find anywhere. She also has very low hours.
She was ordered by her original owner as a World cruising yacht. She is at home in any port and can accommodate both European and American 220v dockside electrical systems. Her interior includes power outlets for 110v as well as 220v. She also is completely self sufficient with her generator and solar panels and water maker for off-grid cruising.
Her design incorporates over 60 years of Amel technical innovation for excellent sailing performance, as well as safety including the Amel 5 zone water- tight compartment system for maximum safety at sea.
The interior layout will accommodate 6 people and includes 3 full bathrooms. Her cockpit is exceptionally roomy and has the optional hardtop and dodger over the helm, PLUS, the sliding fiberglass cockpit extension for maximum protection from adverse weather.
This boat is US duty paid, and ready for your cruising adventures.
There are too many options included in this vessel to mention here –
Please see the full listing brochure below, and call Jeff Sorgen to discuss further.
