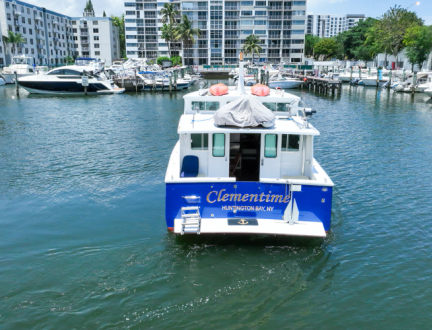

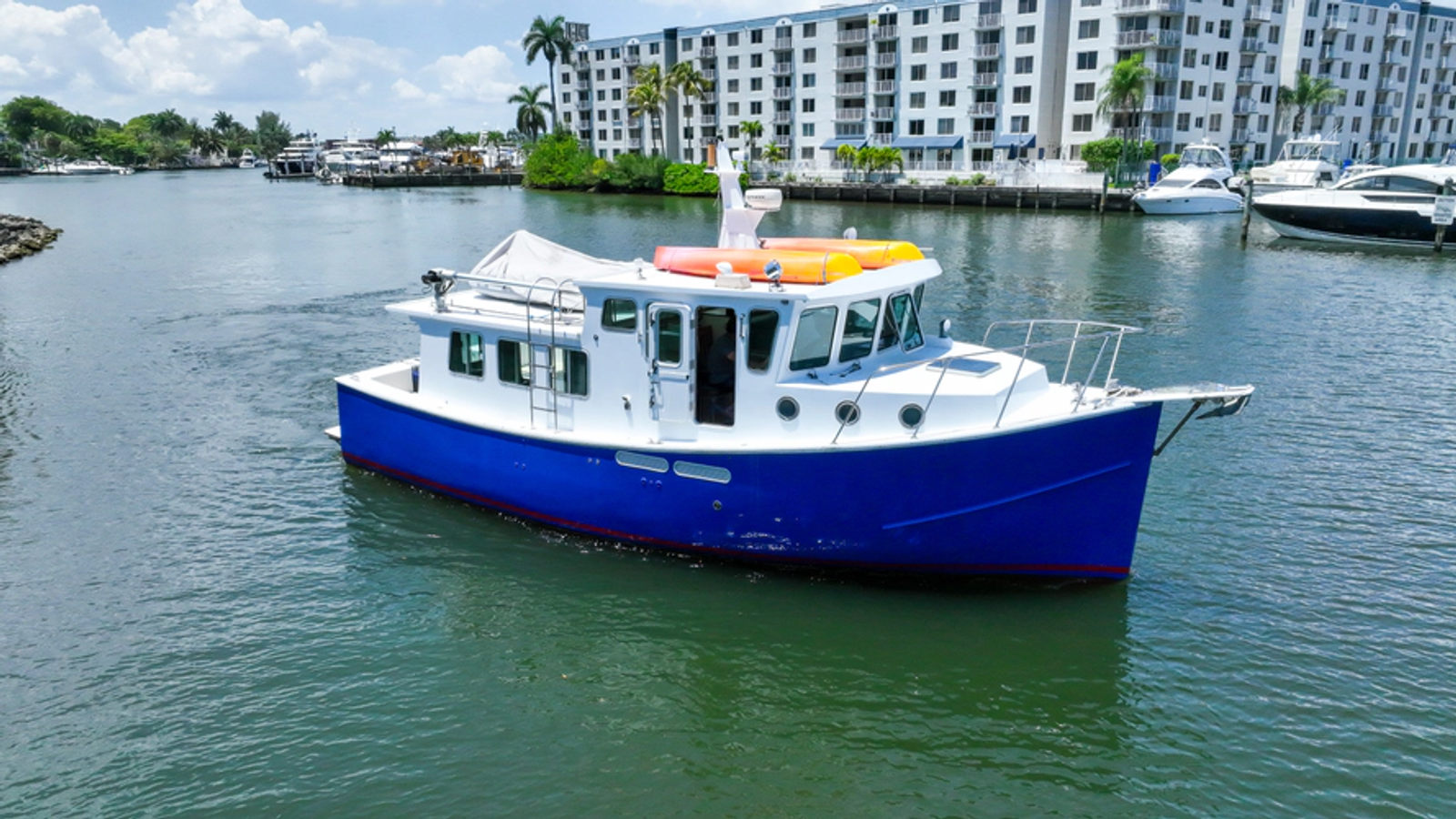

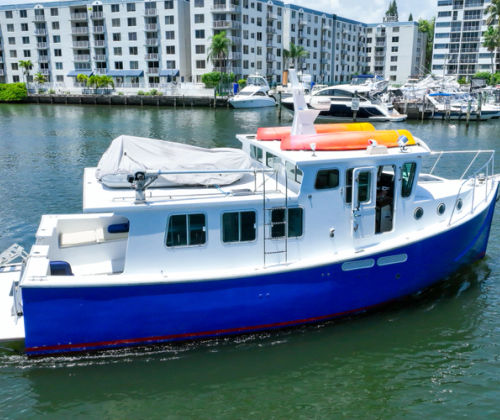

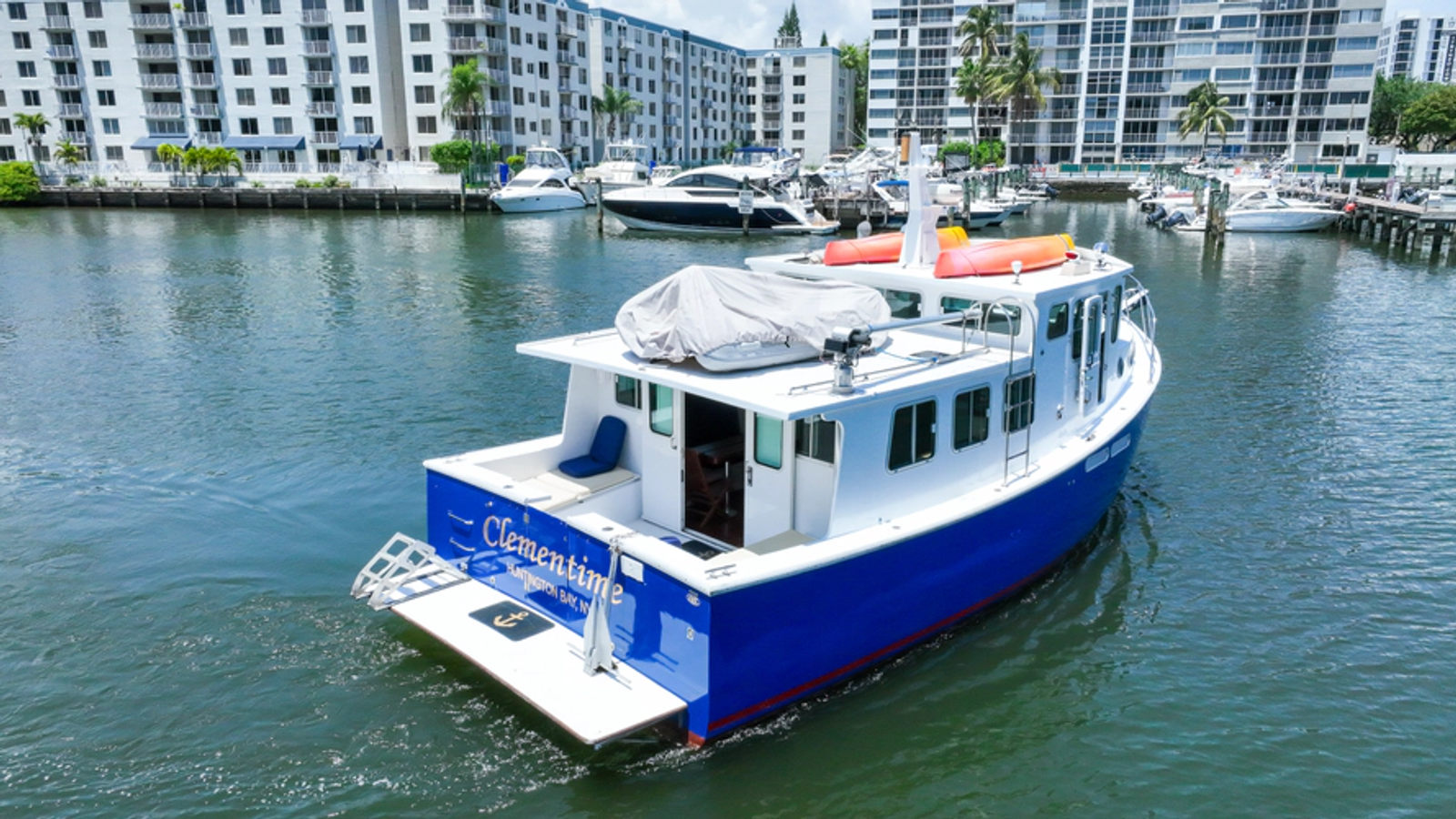

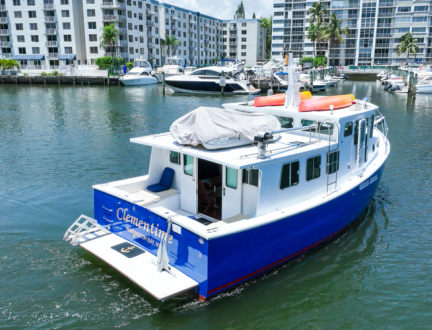

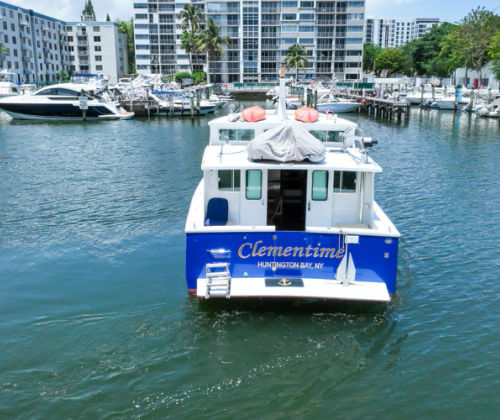

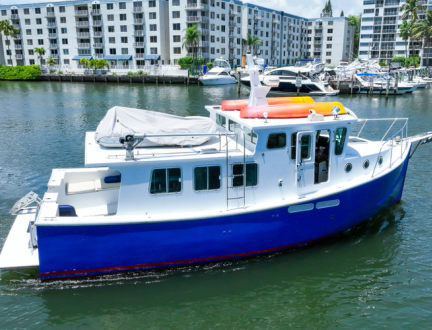

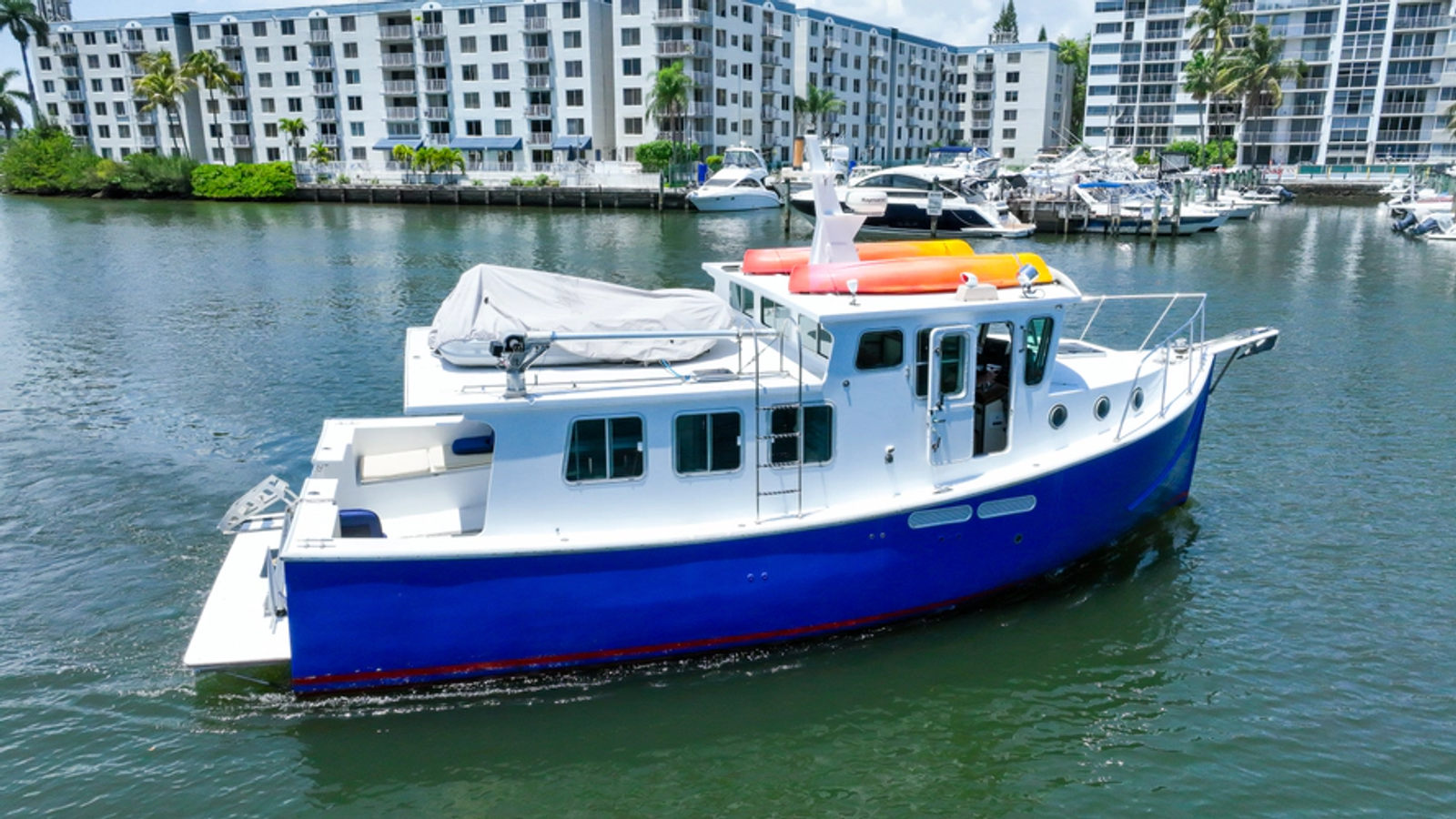

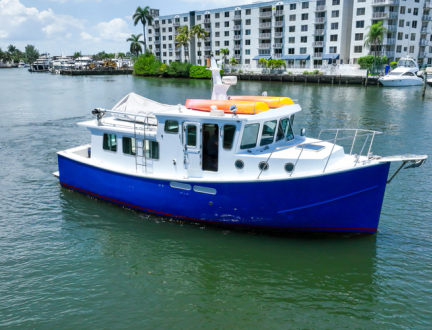

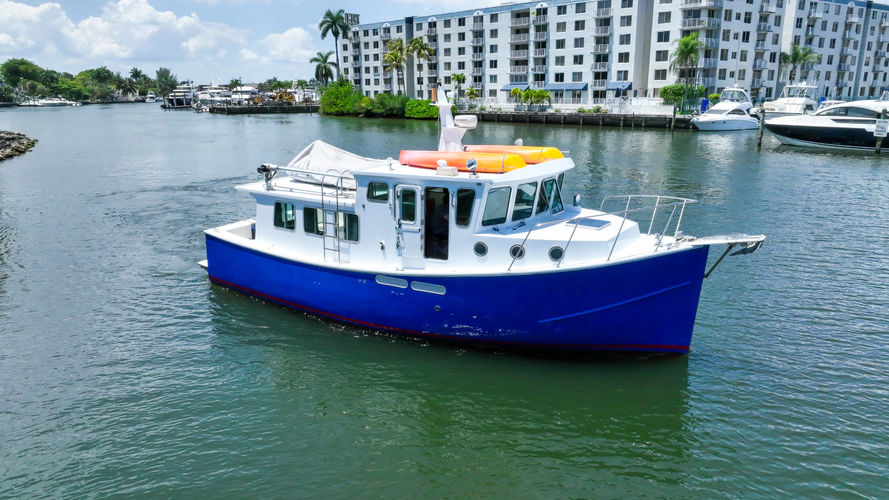

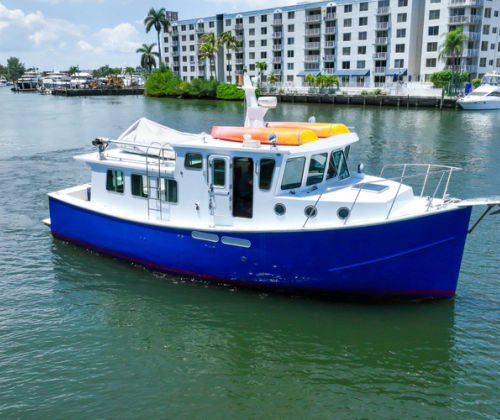

2003 NOVA TRAWLER PILOTHOUSE 36

This one-owner vessel has been meticulously mainteined with full service records available upon request. Owner took possesion from factory in Canada and has crusied the whole east coast, down to Florida, the Caribbean & the Gulf, and it's ready to find a new family to continue the adventure with.

HIGHLIGHTS

• Hull: fiberglass


• LOA: 41'


• Beam: 15' 8"

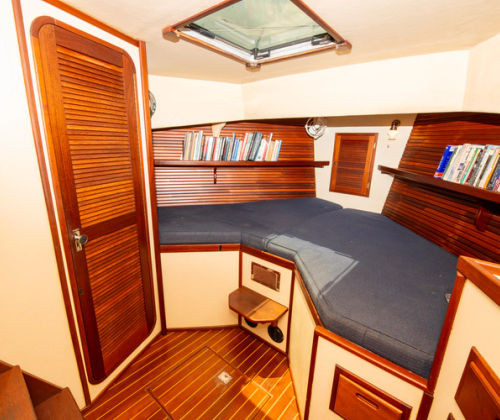

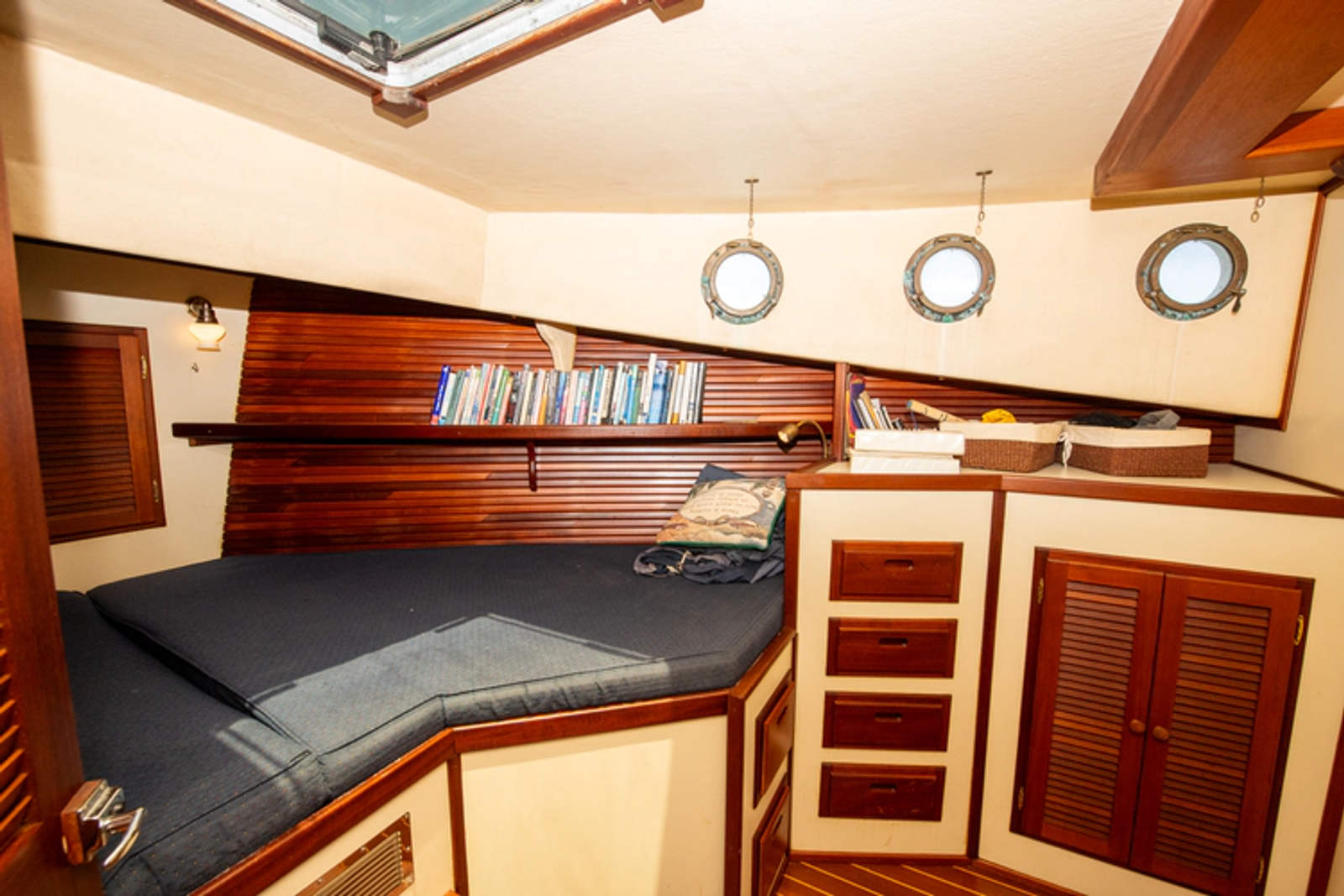

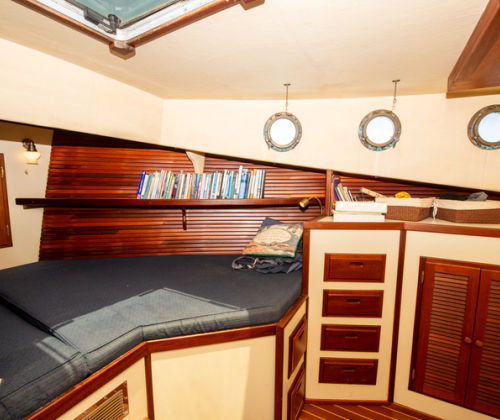

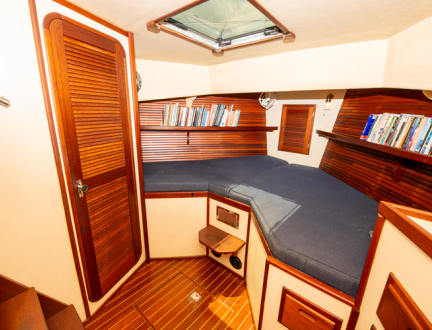

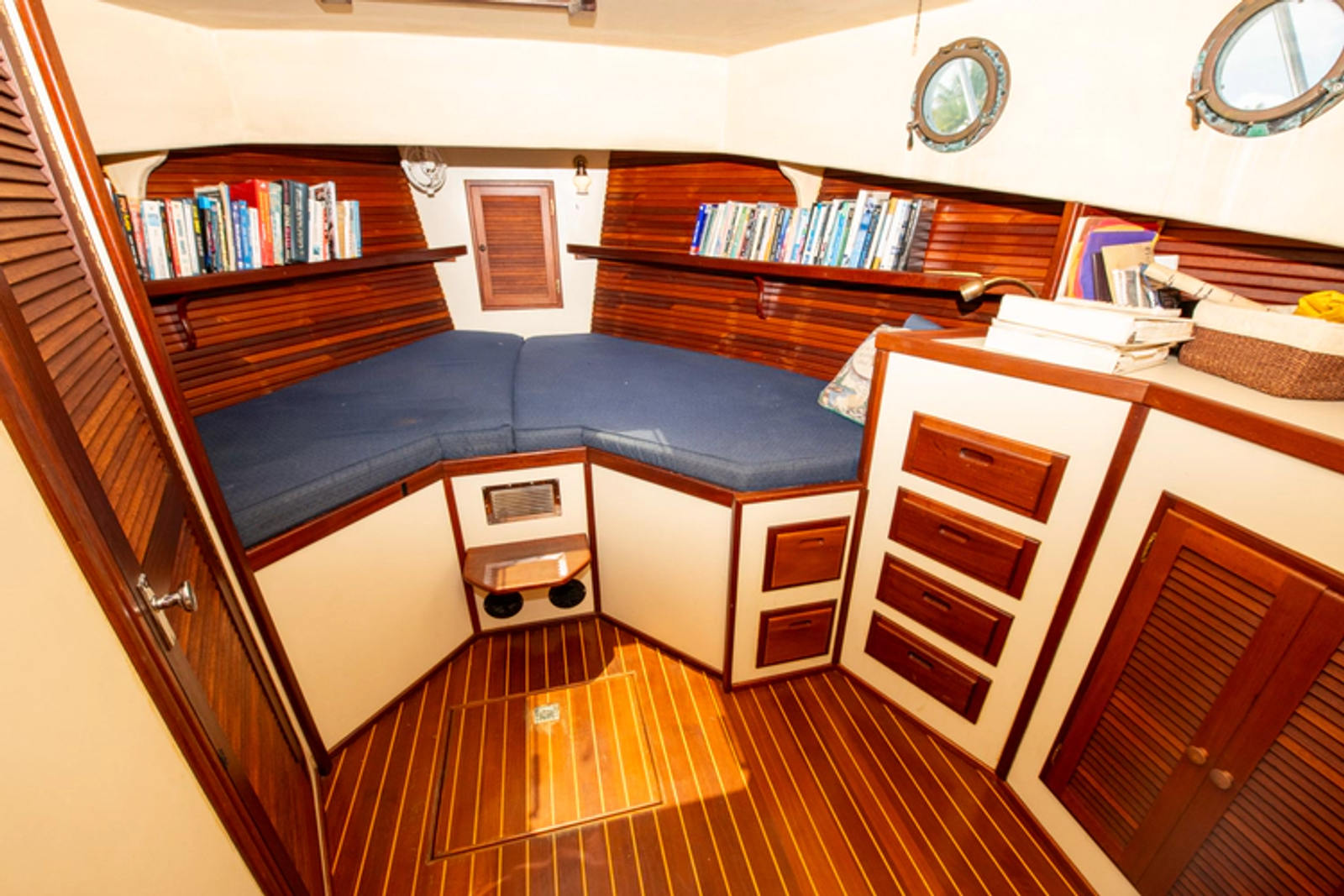

• (1) Stateroom + foldable double bunk bed


• (2) Heads - 1 w/ shower


• (1) outdoor shower

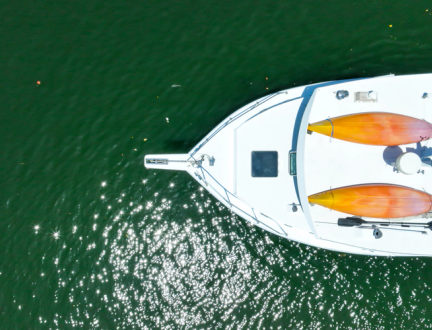

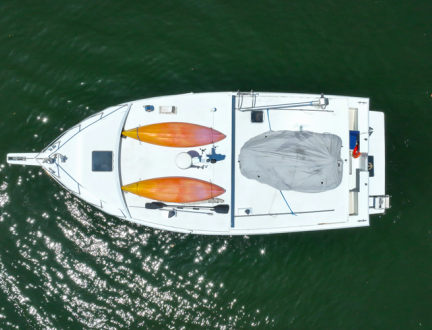

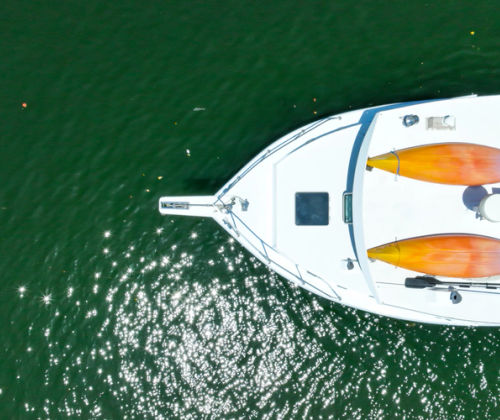

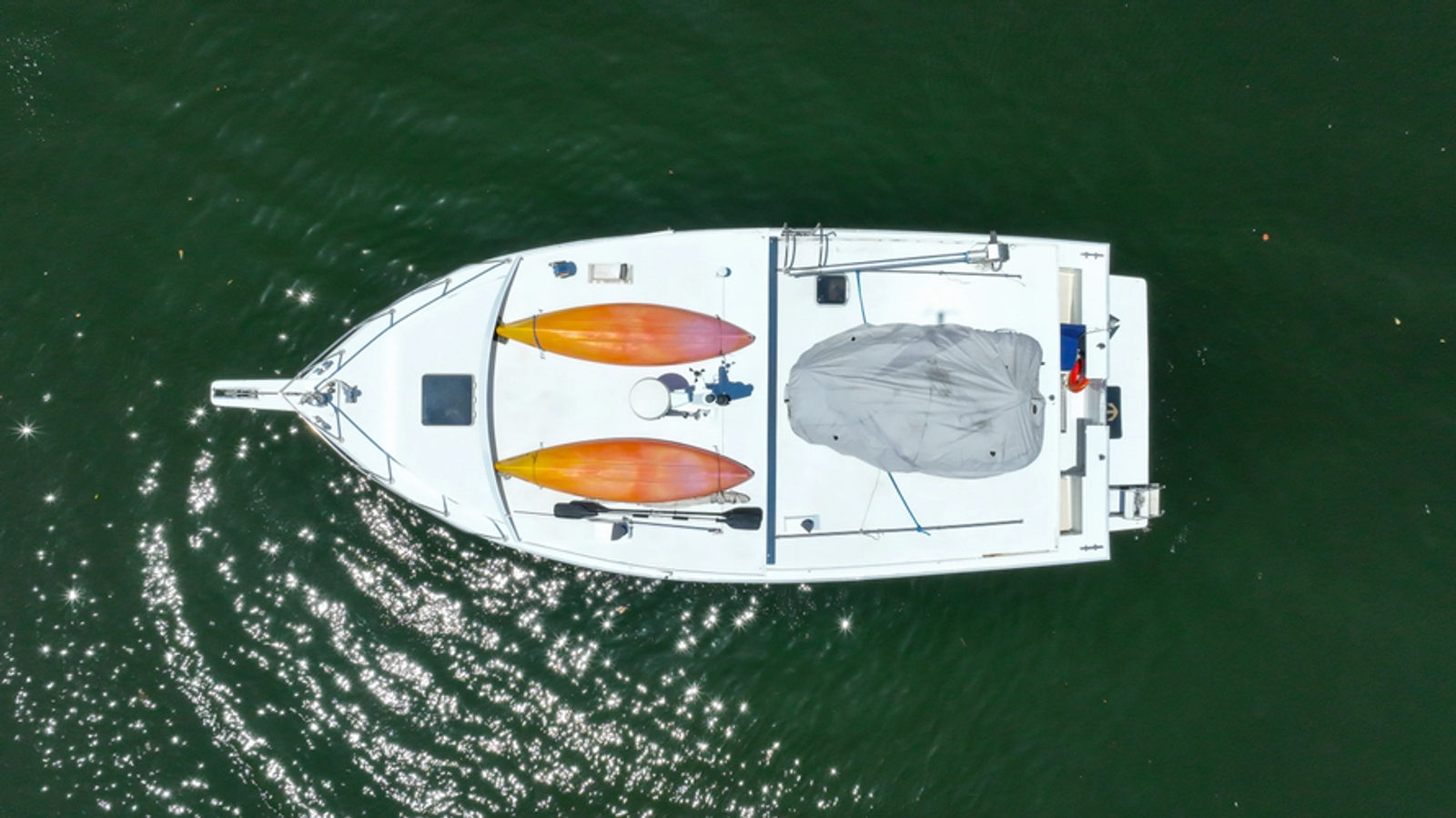

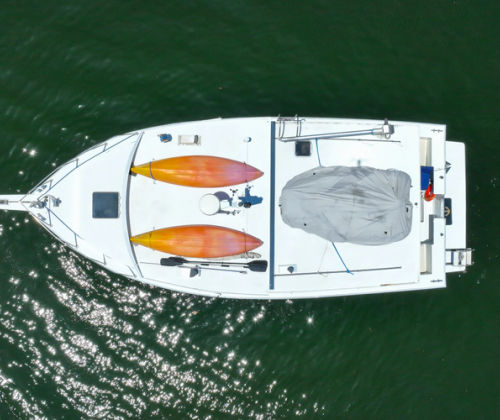

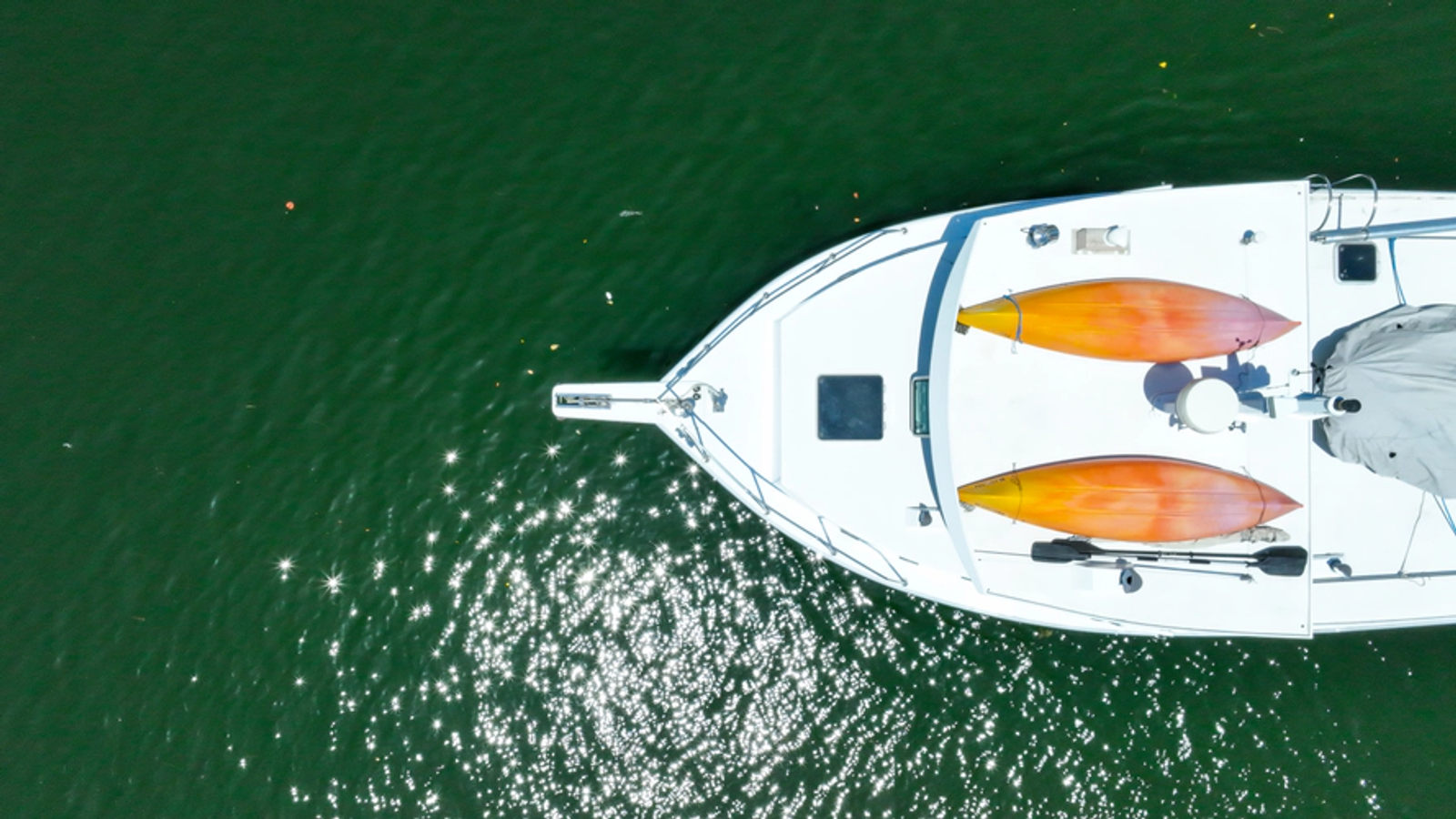

• Included in the sale: 10' RIB Tender & (2) kayaks

HULL

• Solid fiberglass construction 36’ LOD with a 15’ 8” beam.

SUPER STRUCTURE & EXTERIOR

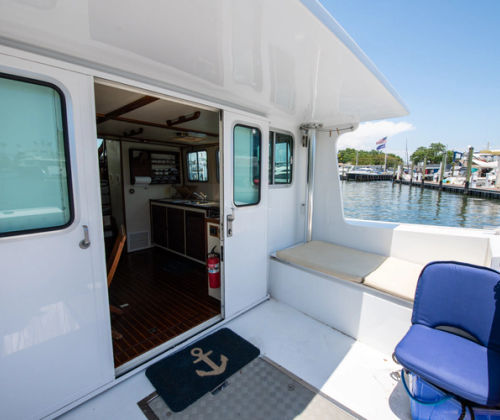

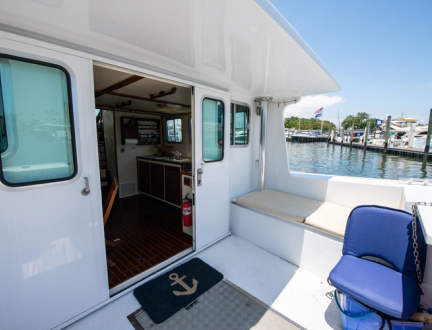

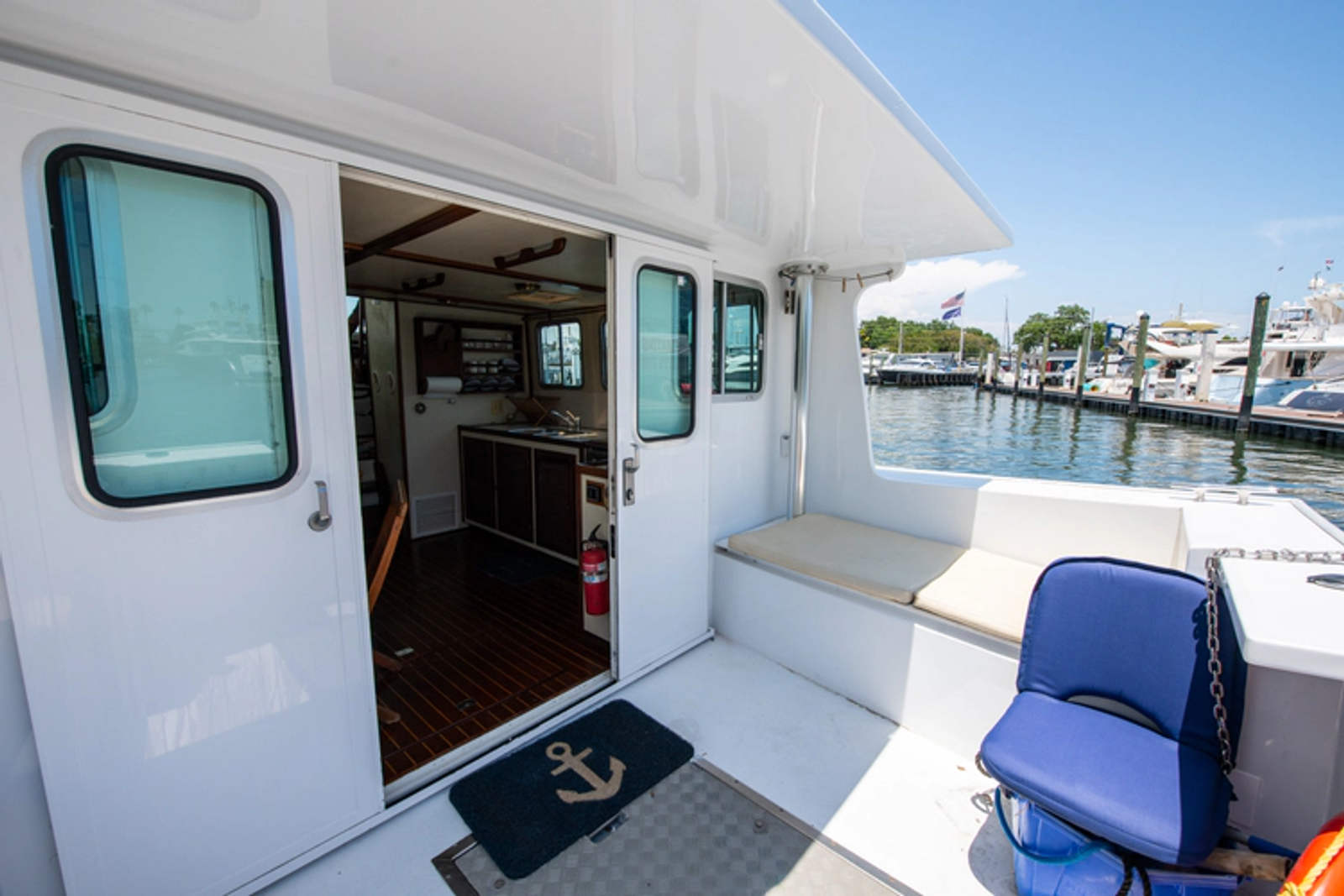

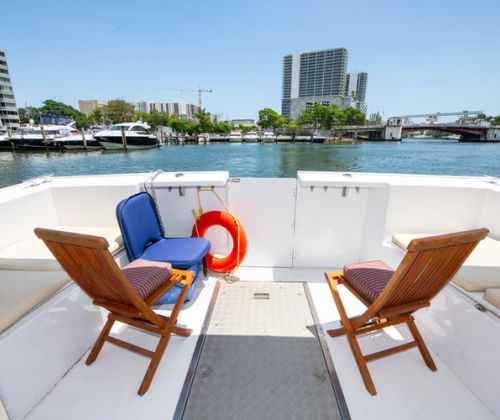

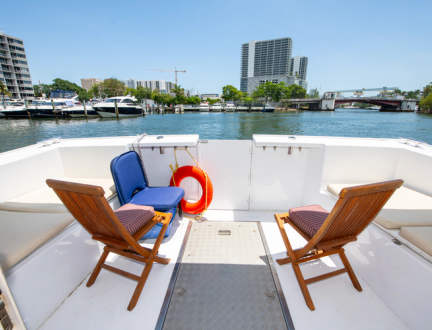

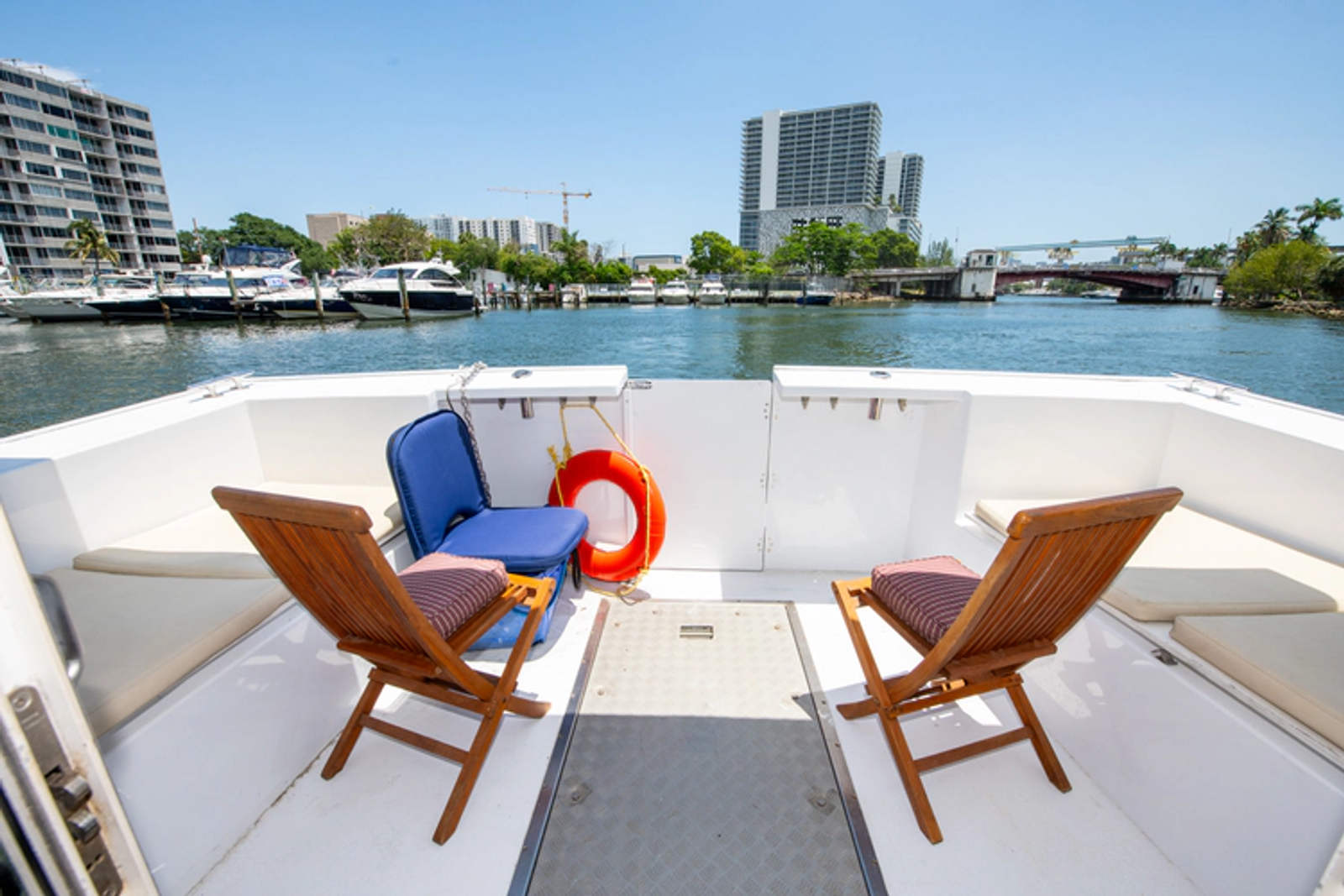

• Cockpit double sliding doors, 48-inch total opening, mill finished 5052, DIAMOND SEAGLAZE

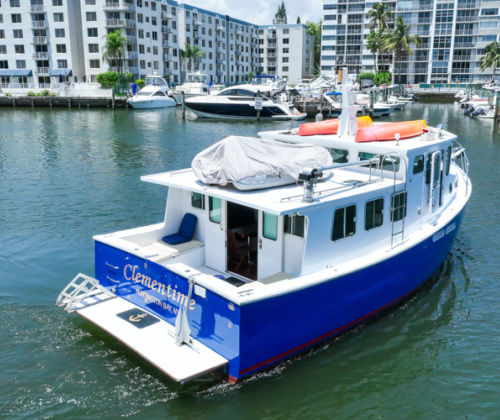

• Transon door to 24-inch swim platform

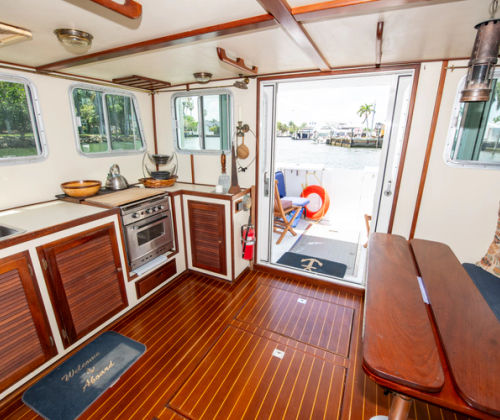

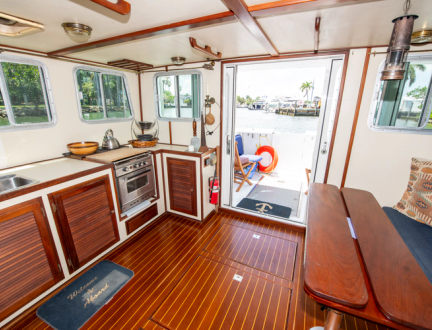

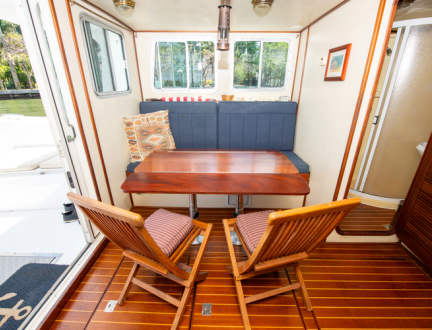

INTERIOR

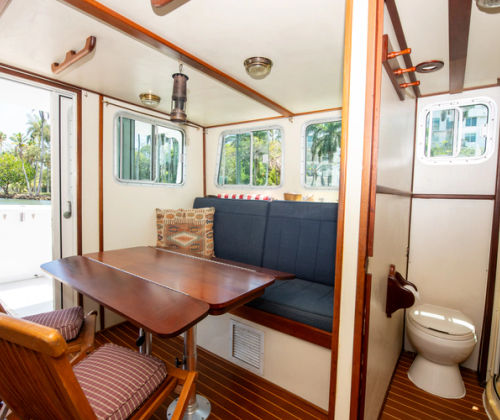

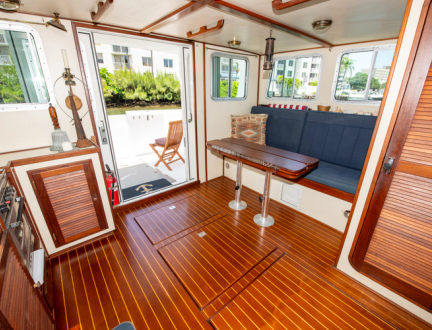

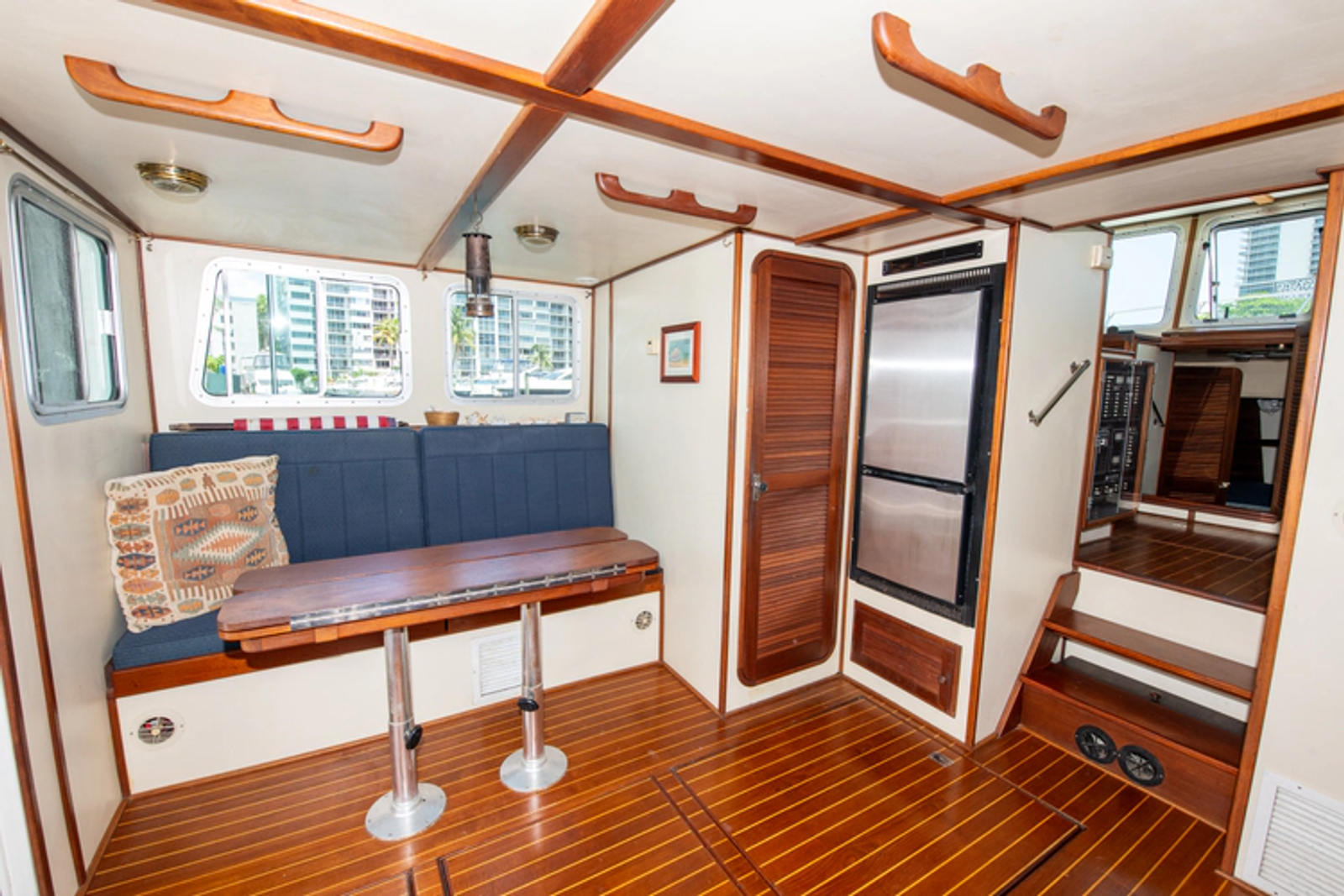

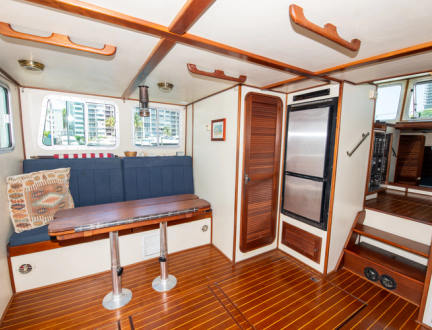

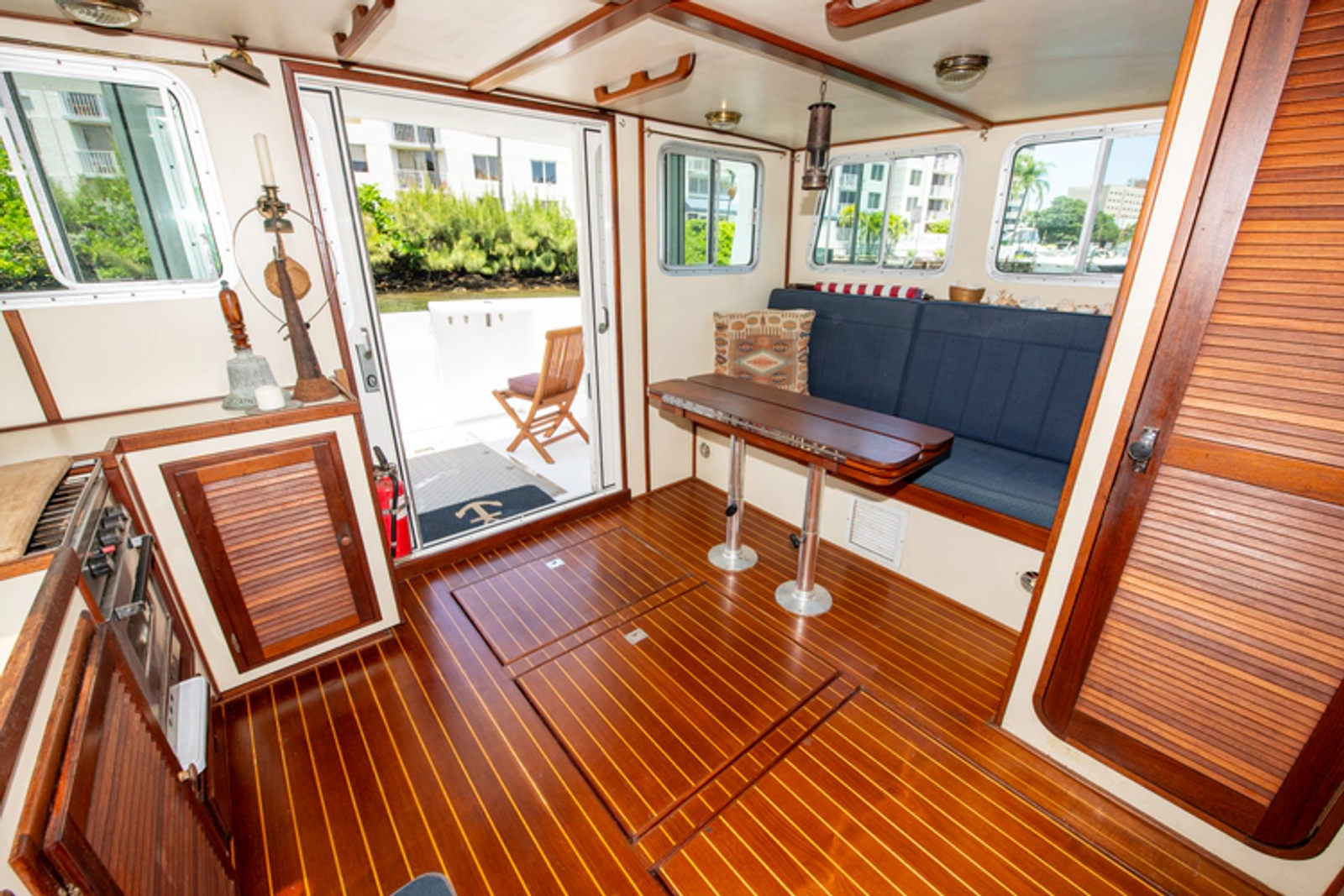

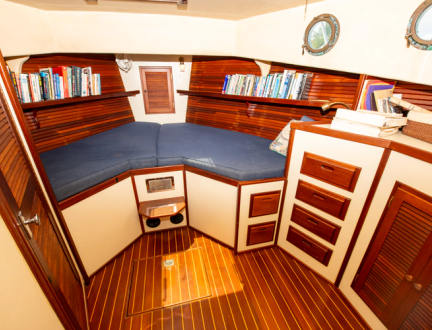

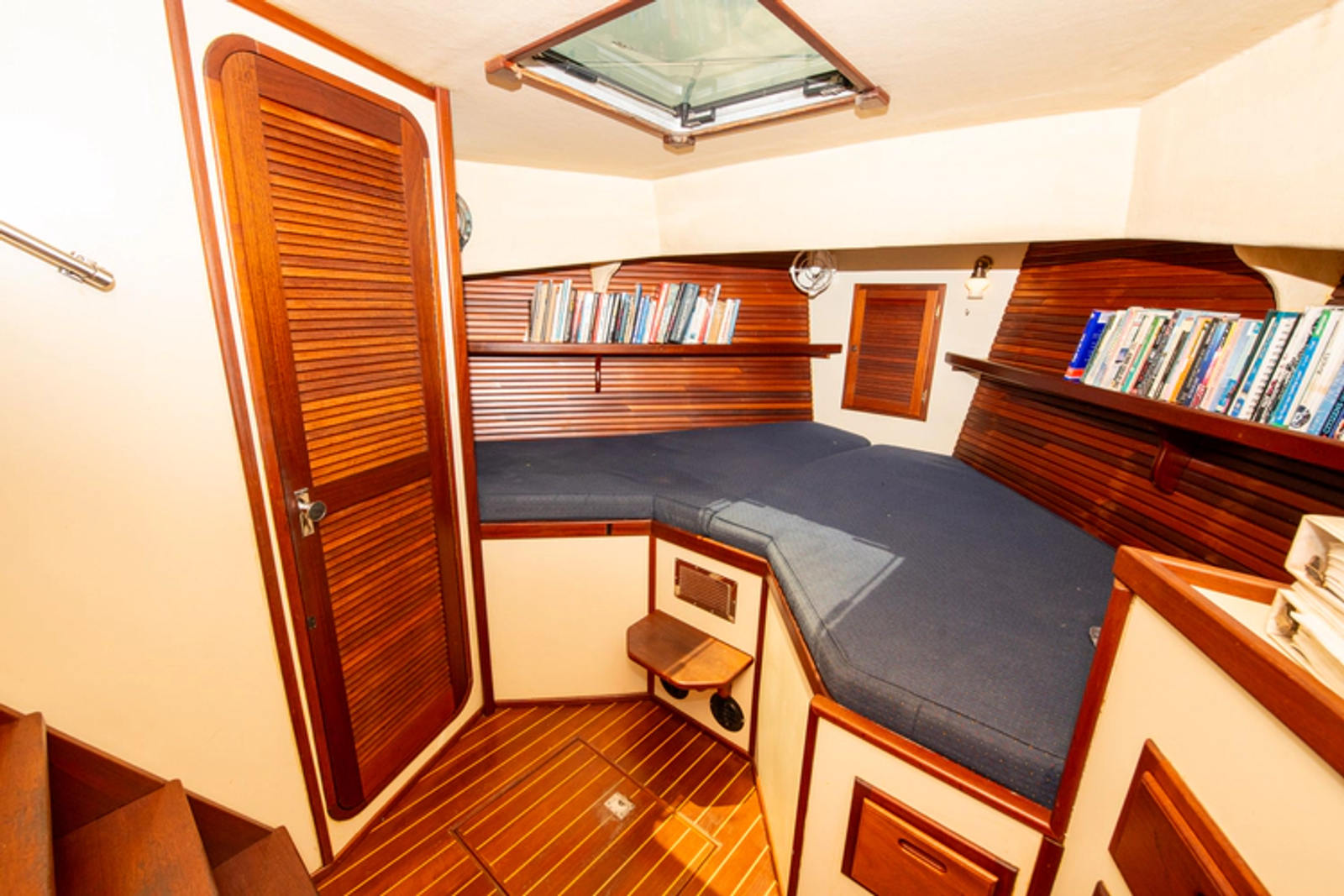

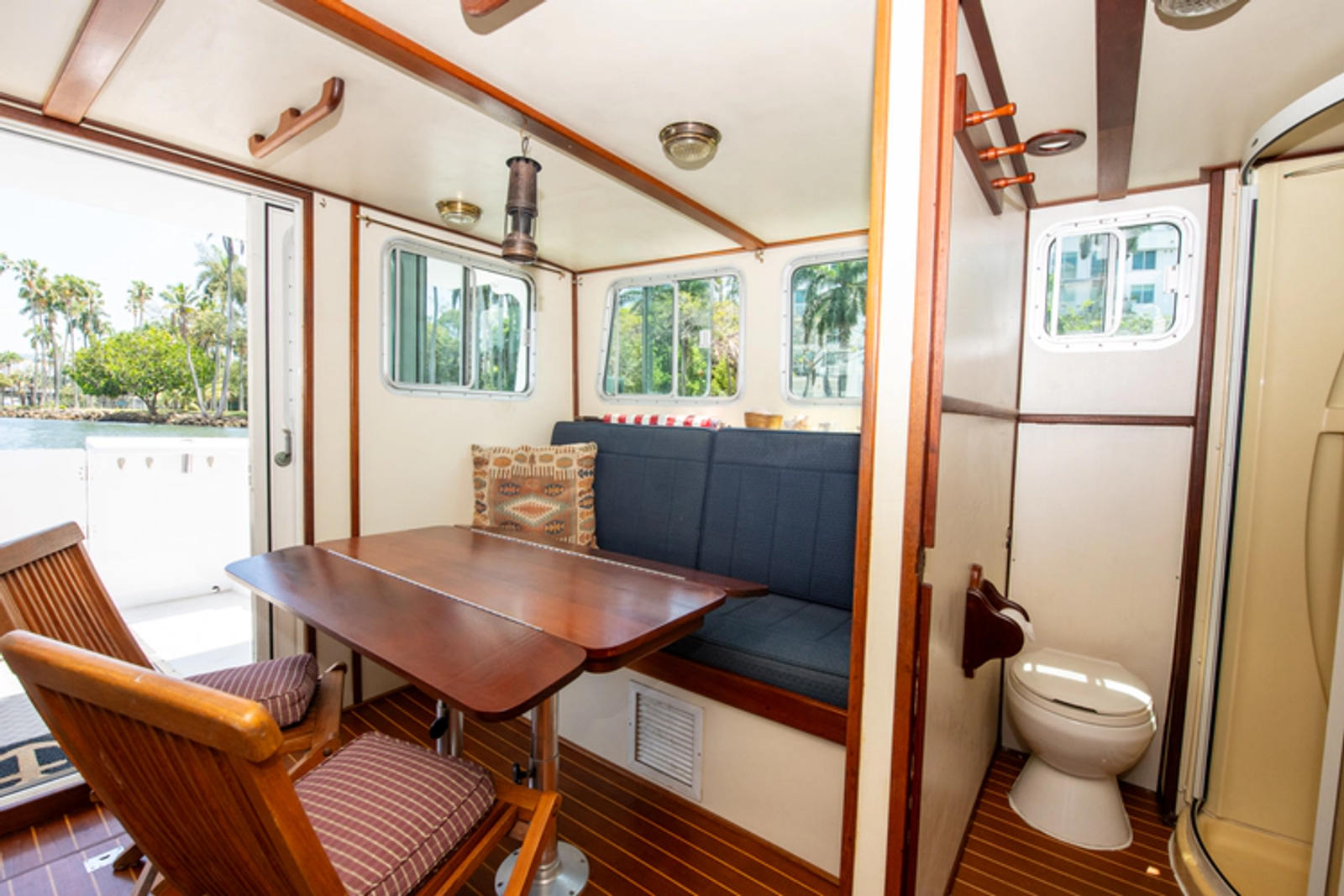

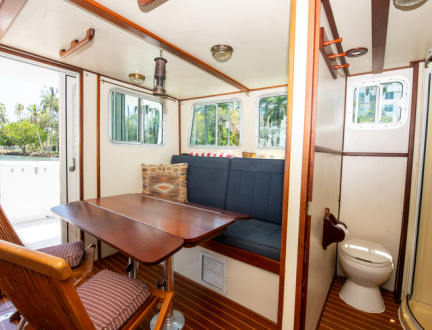

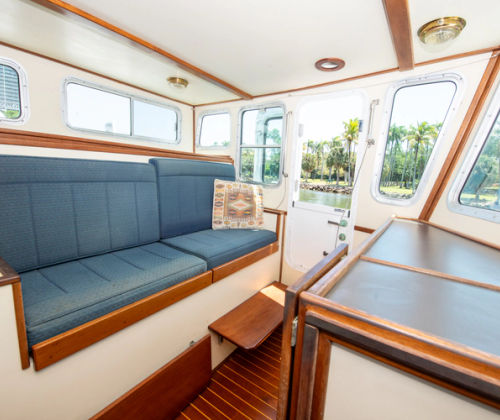

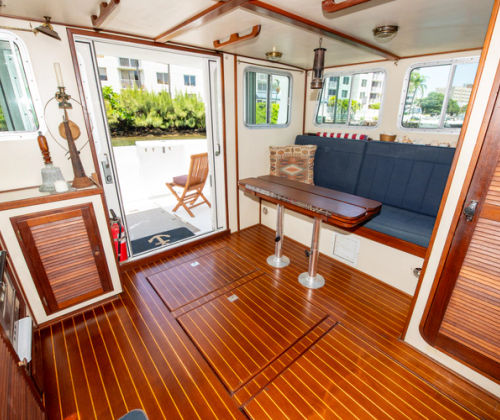

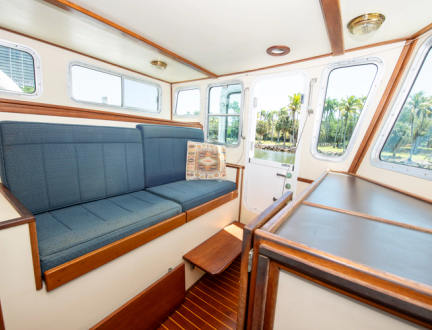

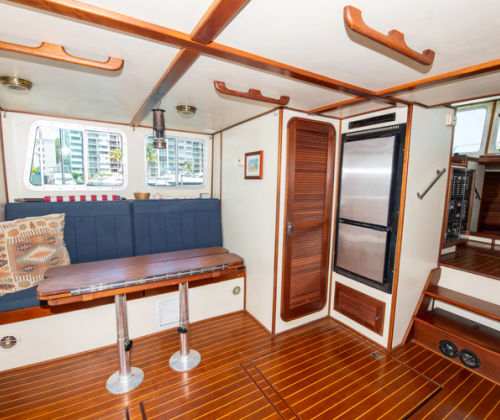

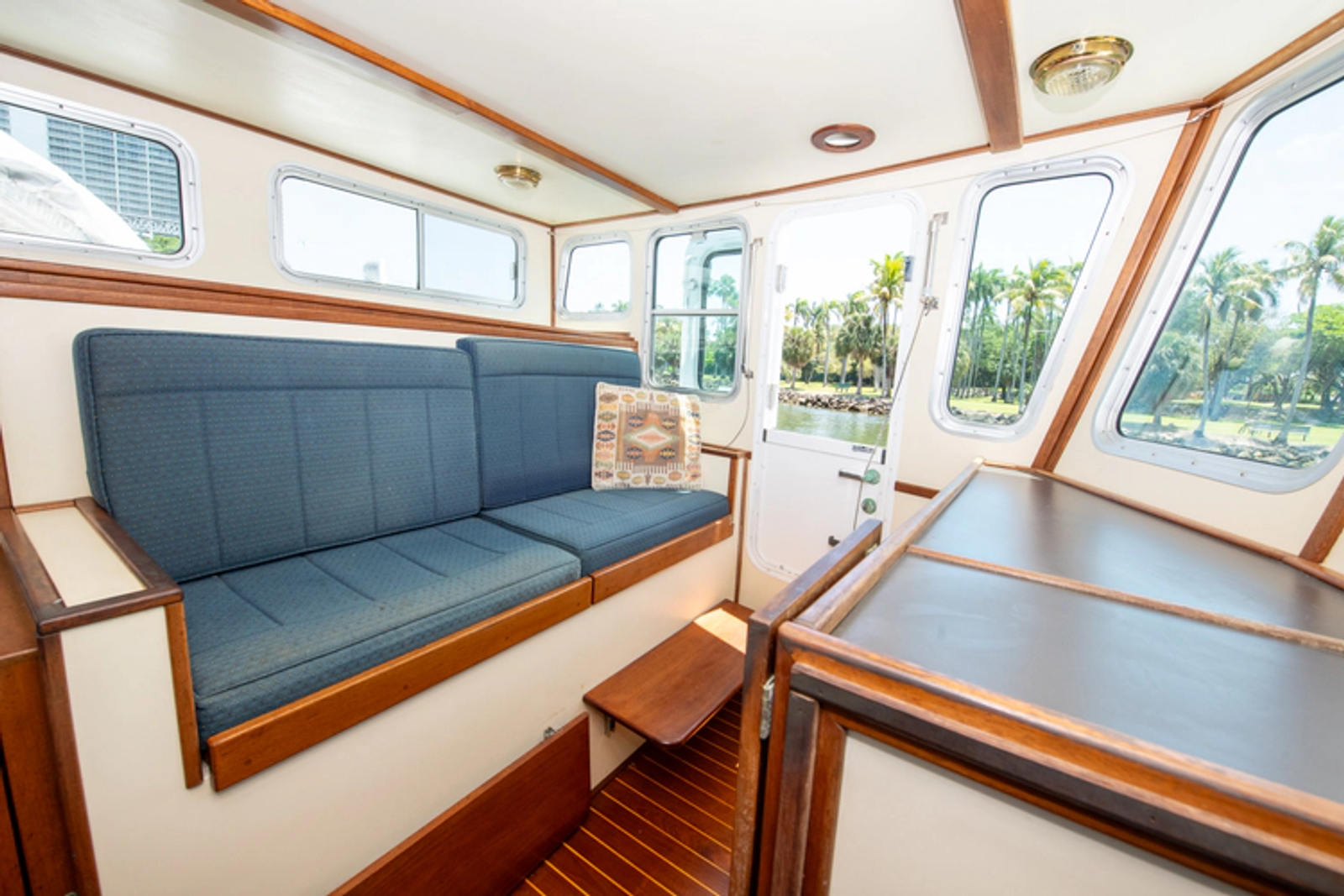

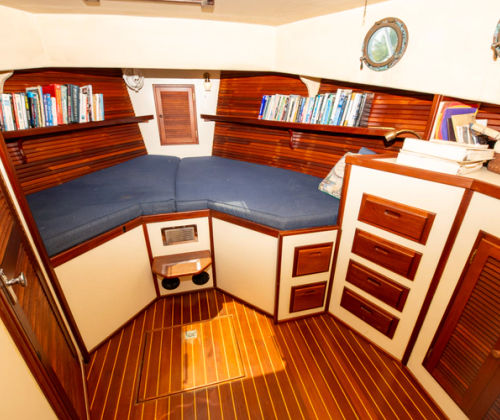

• L Shape settee converts to double bunk


• Dining table with double leaves

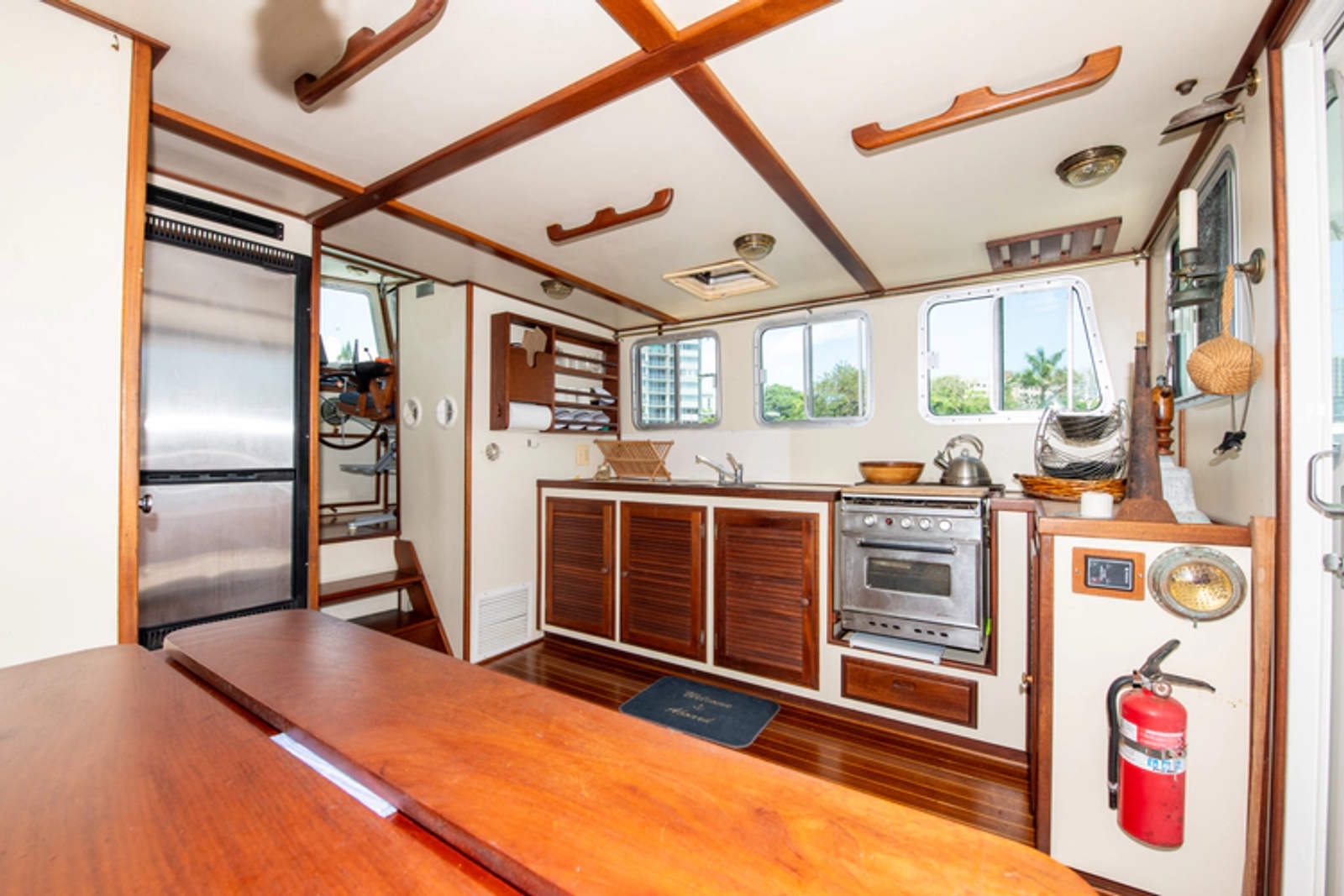

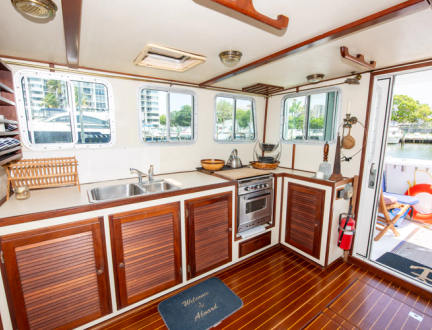

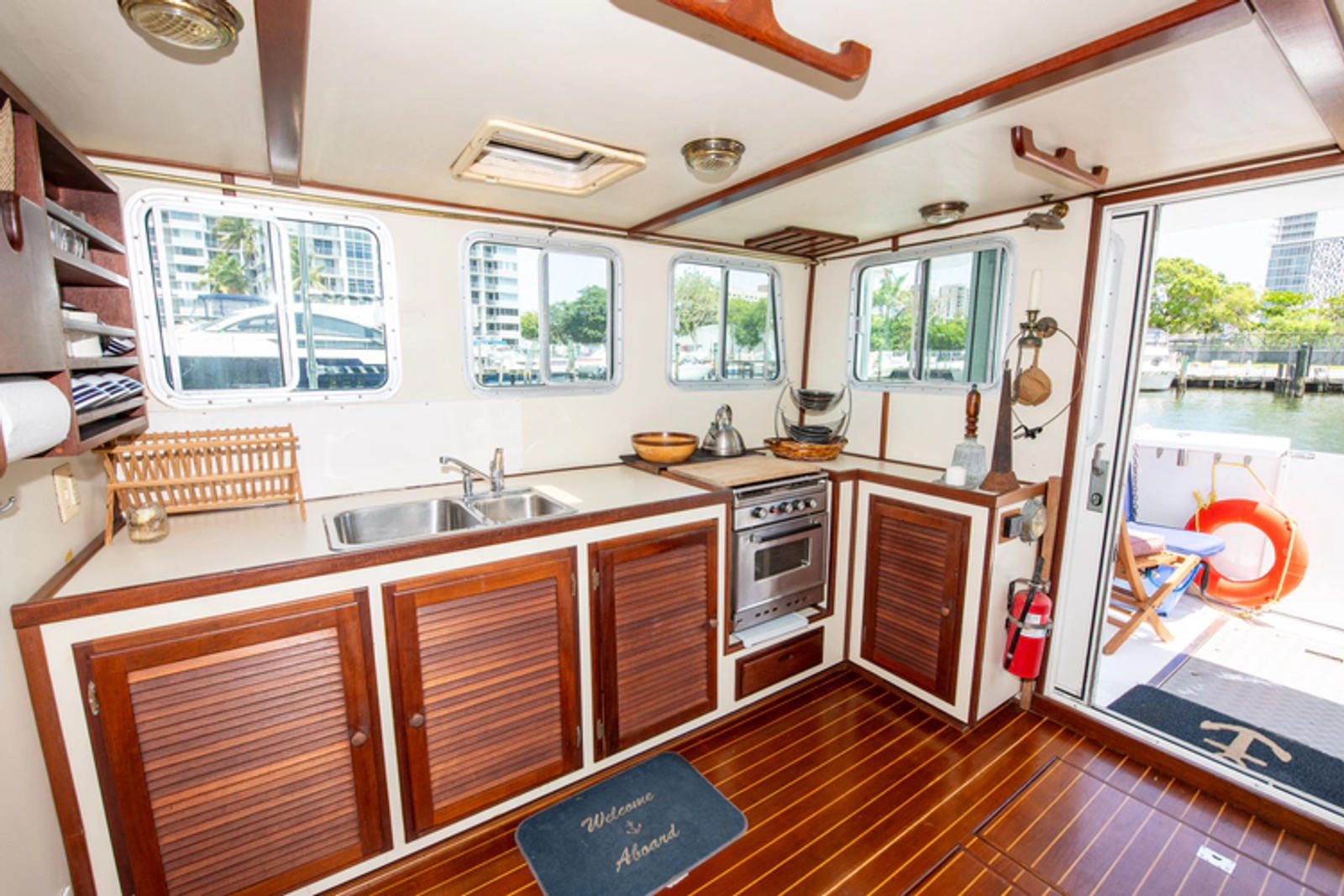

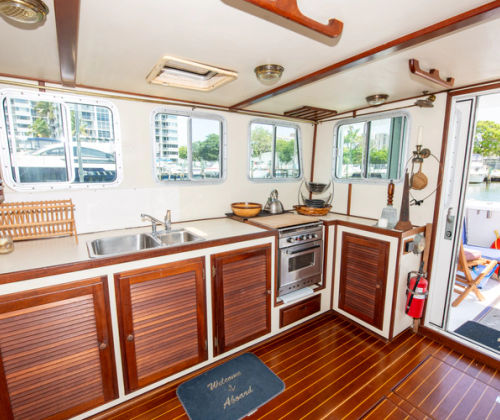

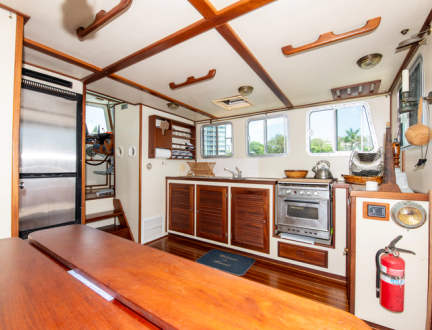

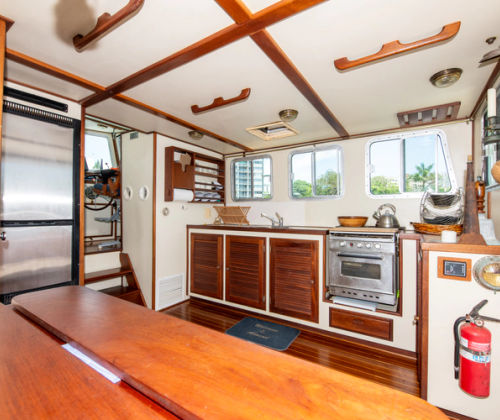

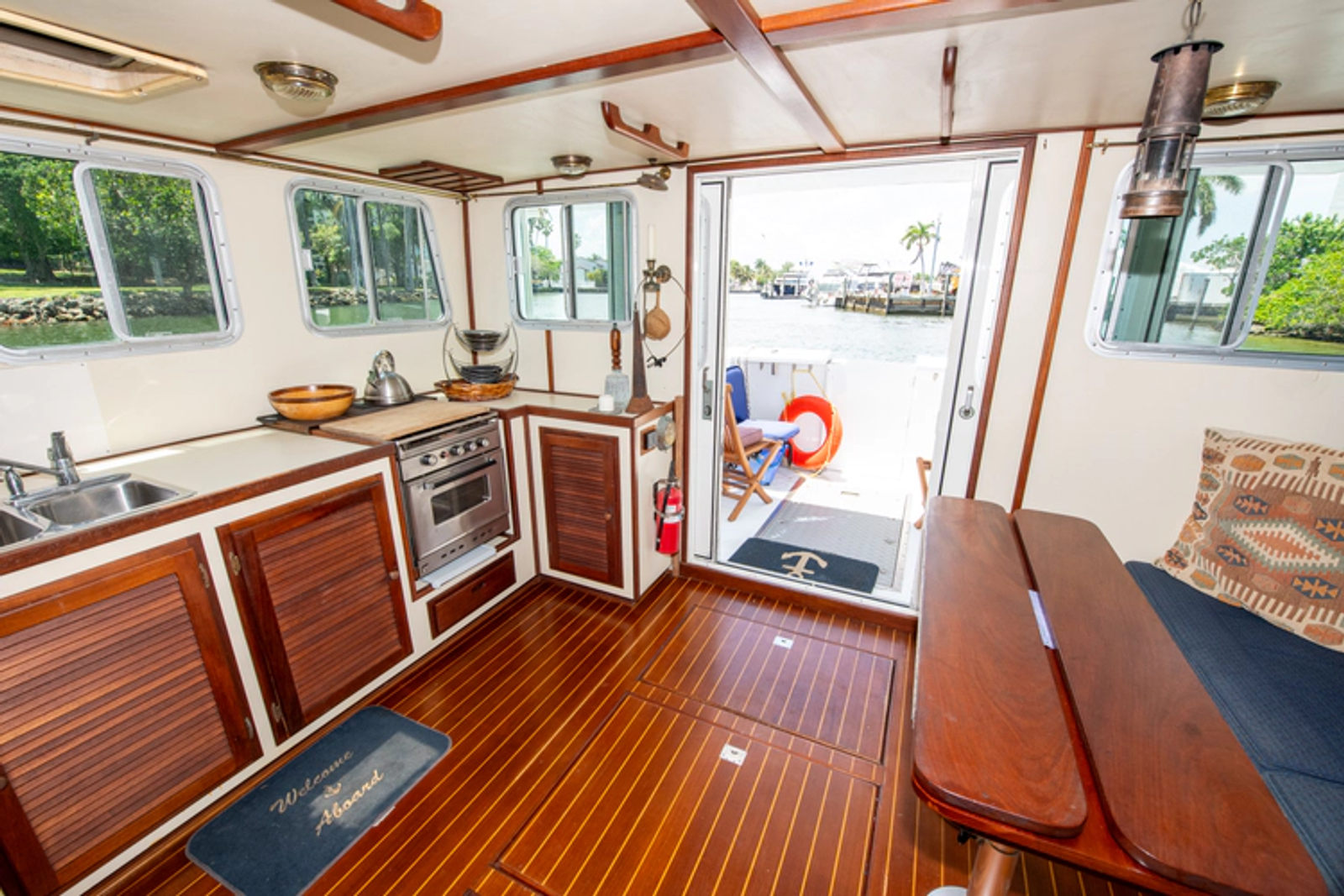

• Galley L shaped, stove, 1 ½ SS sink with fridge and freezer.

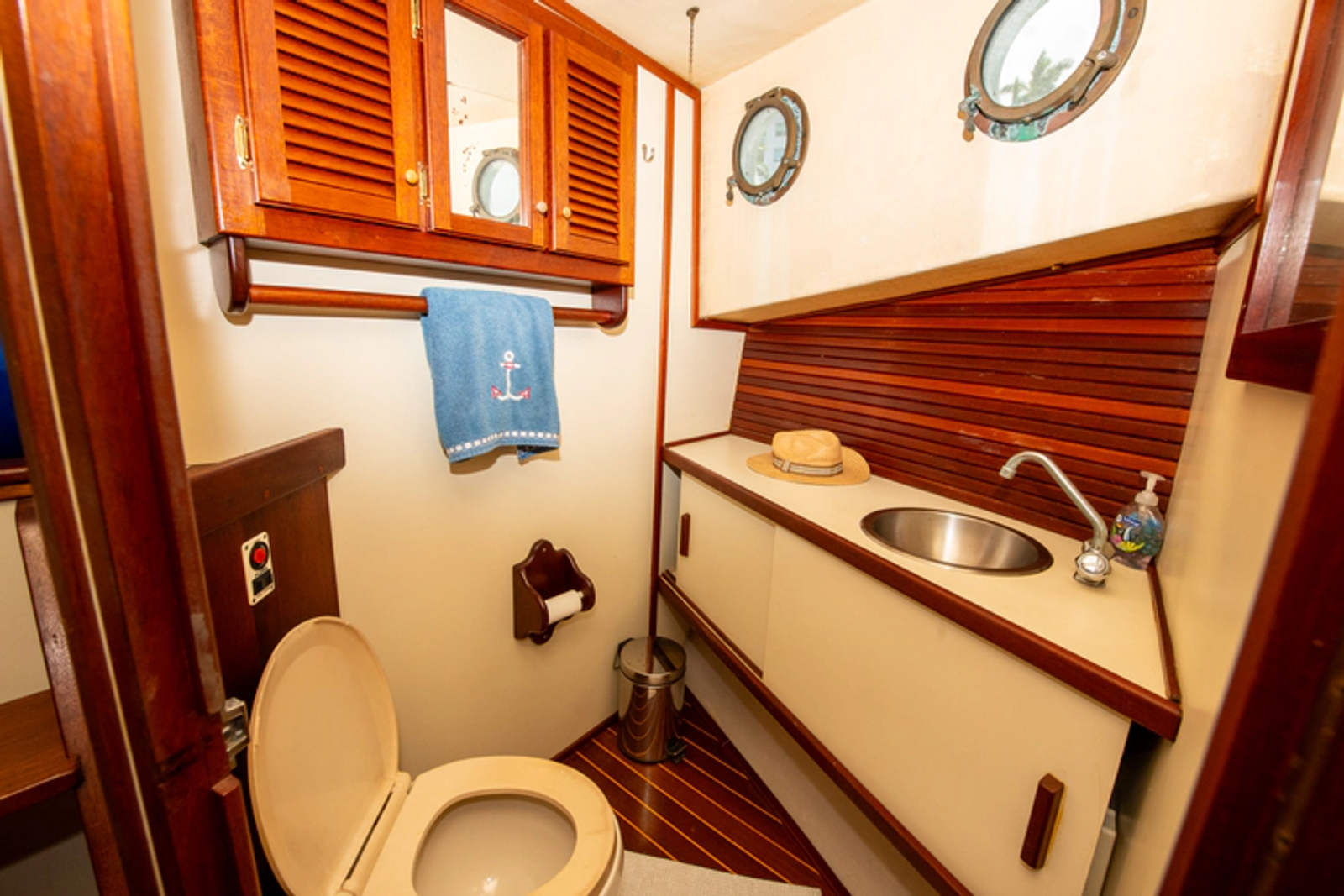

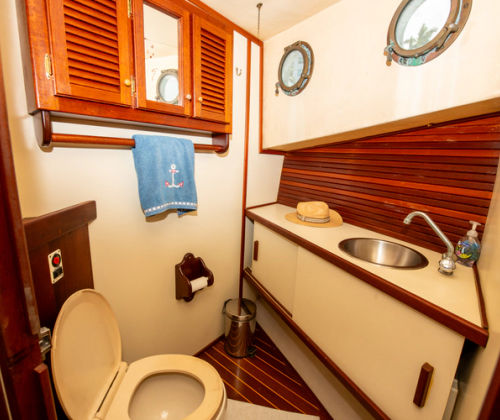

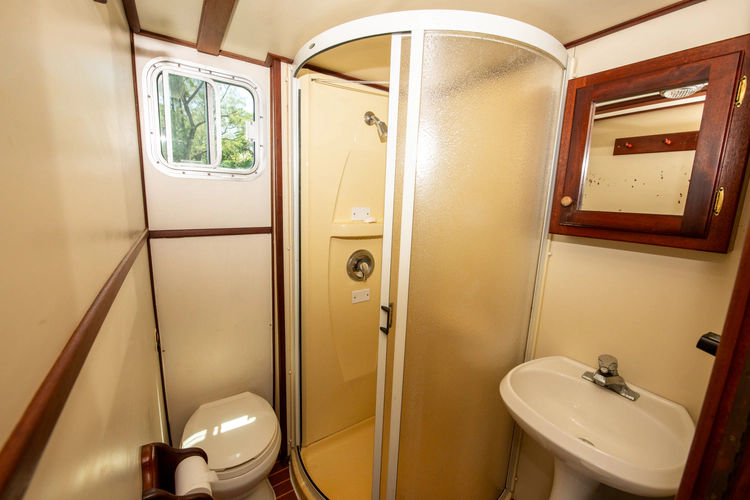

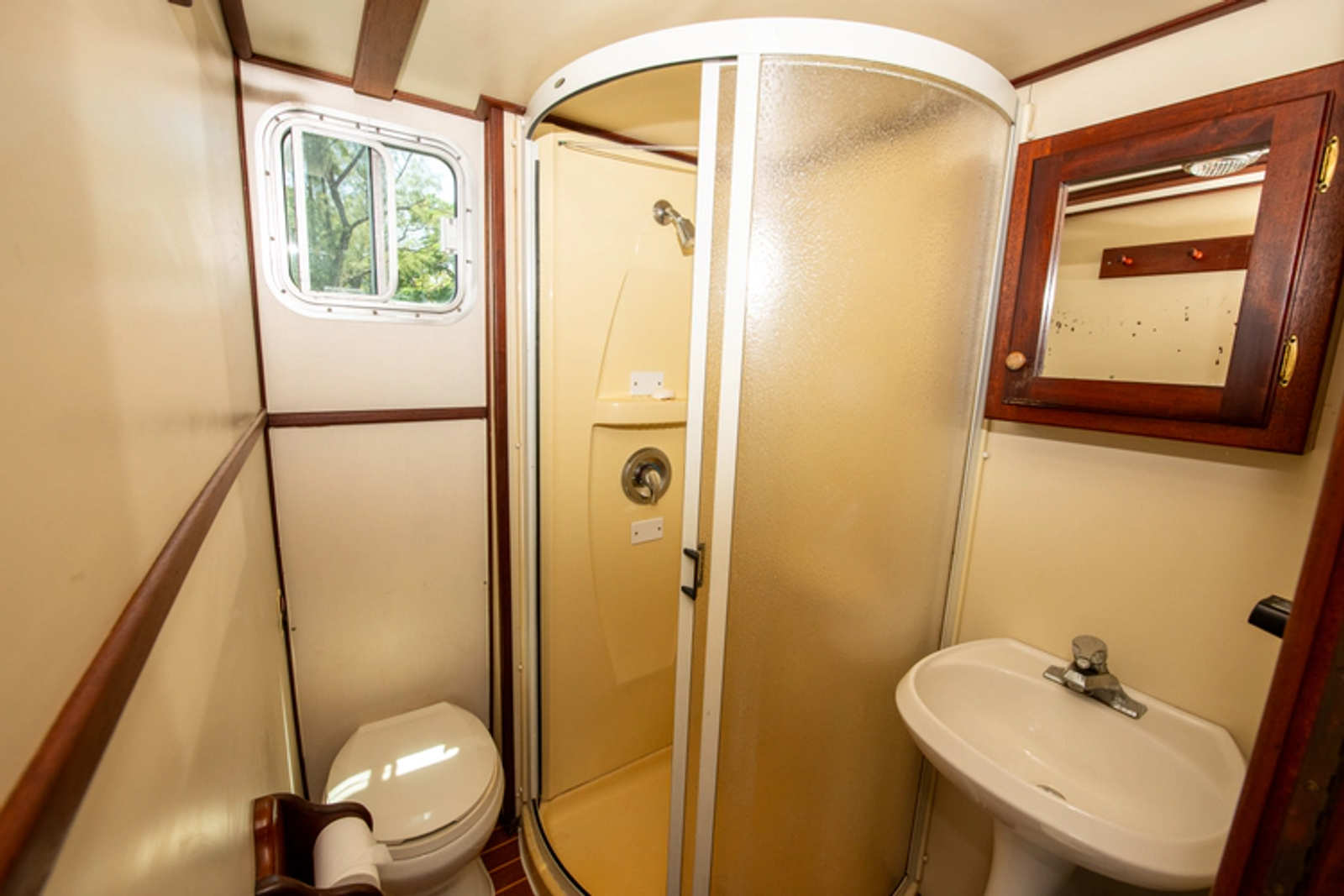

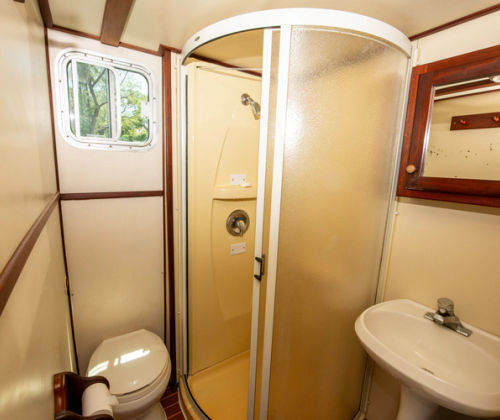

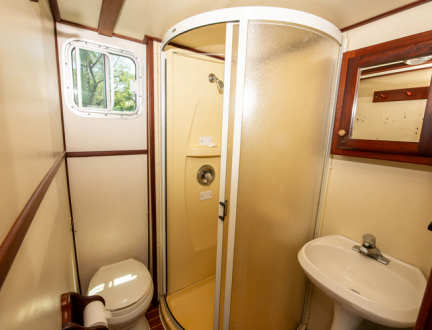

• Washroom with shower, toilet and basin SS sink


• All drawer fronts are solid wood


• Teak and Holly flooring throughout


• Cabin Heater, hot water diesel fired furnace.

GROUND TACKLE AND DECK EQUIPMENT

• Electric Windlass 1400-watt 990 Lbs lift LOFRANS, foot switches and wheelhouse control.


• Foredeck foot operated switched and windlass.


• 250 ft od 3/8” galvanized chain


• Hinged bow roller VETUS


• Stainless steel chain stopper


• (2) 8” mid ship pull-up cleats, 316 SS


• Bow chocks

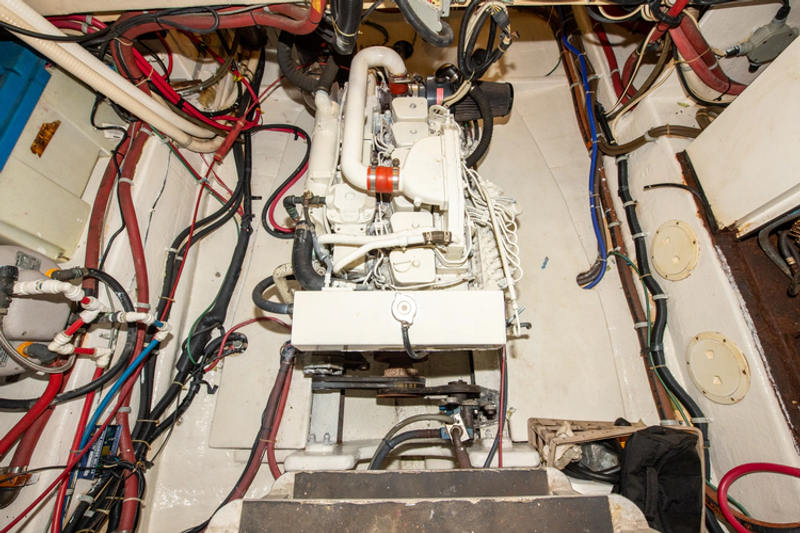

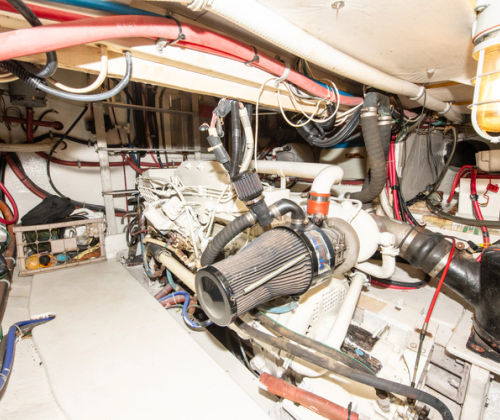

PROPULSION

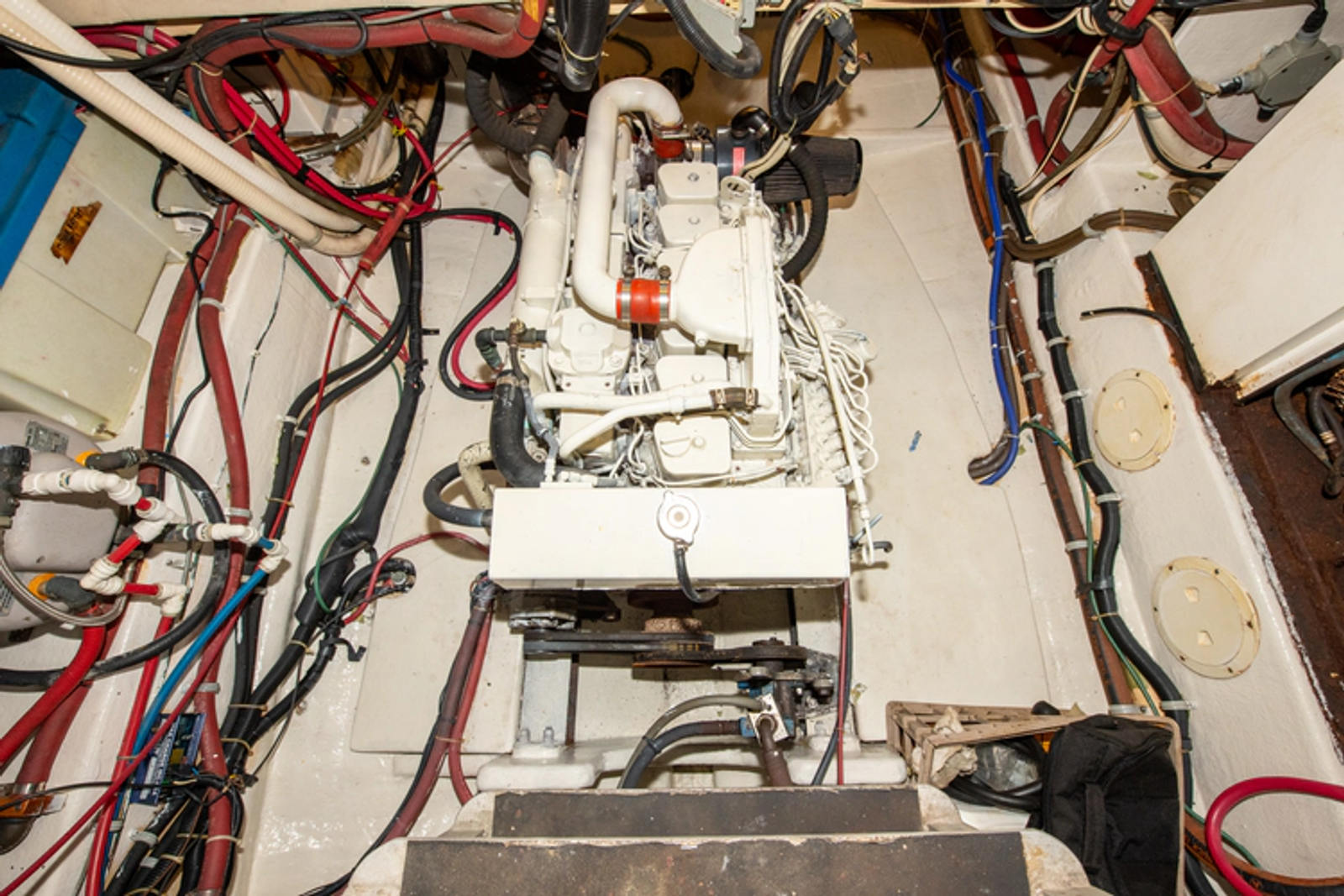

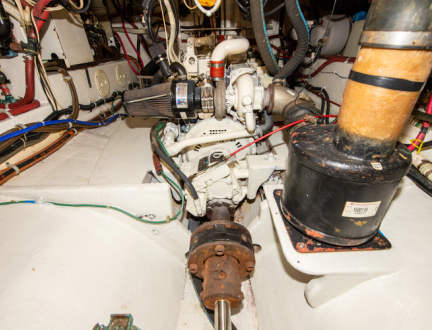

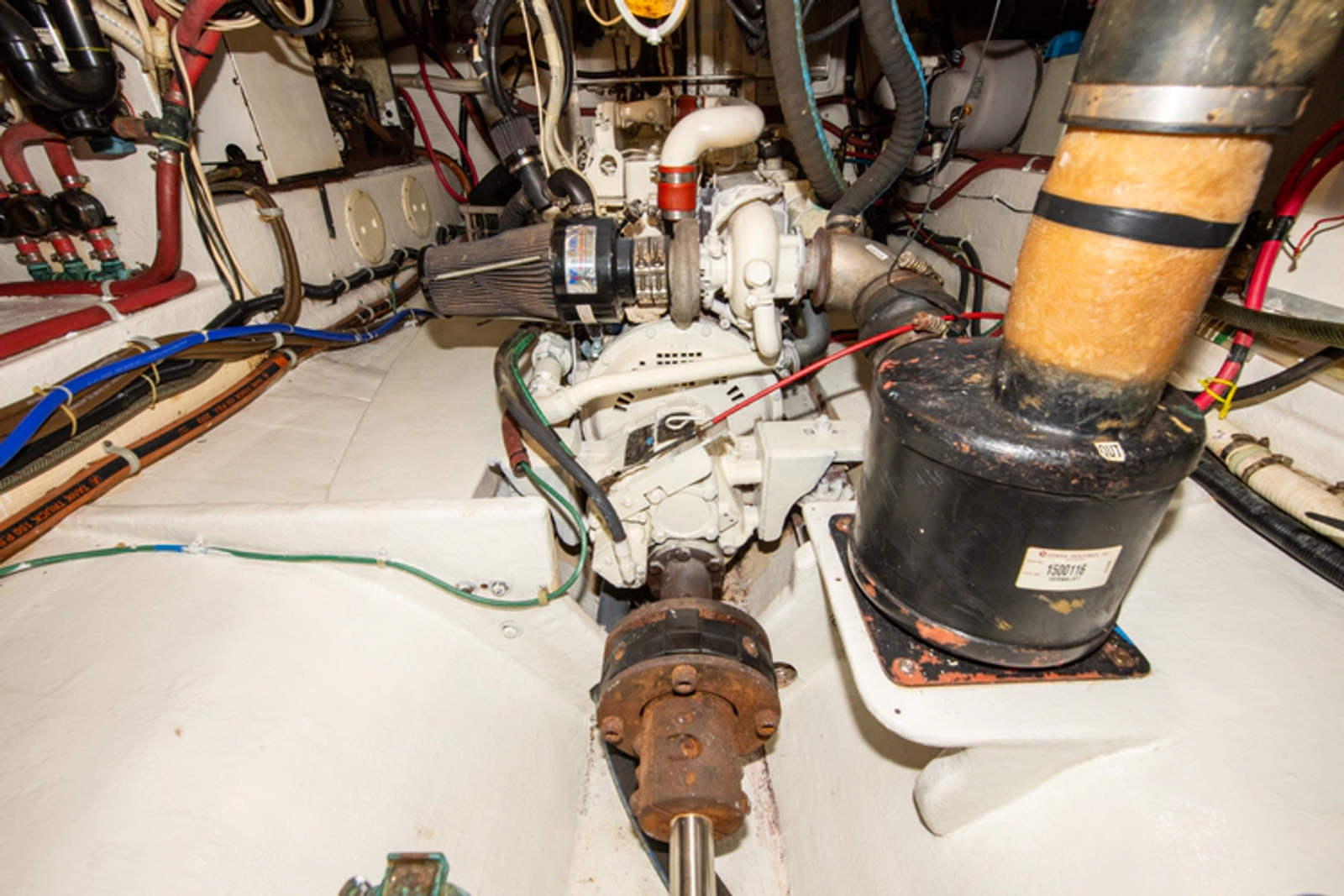

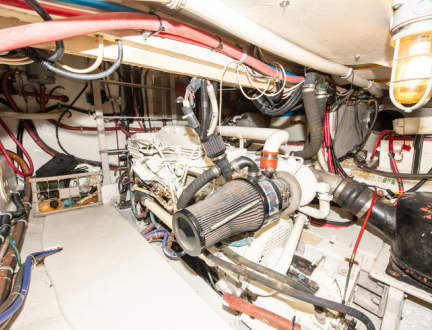

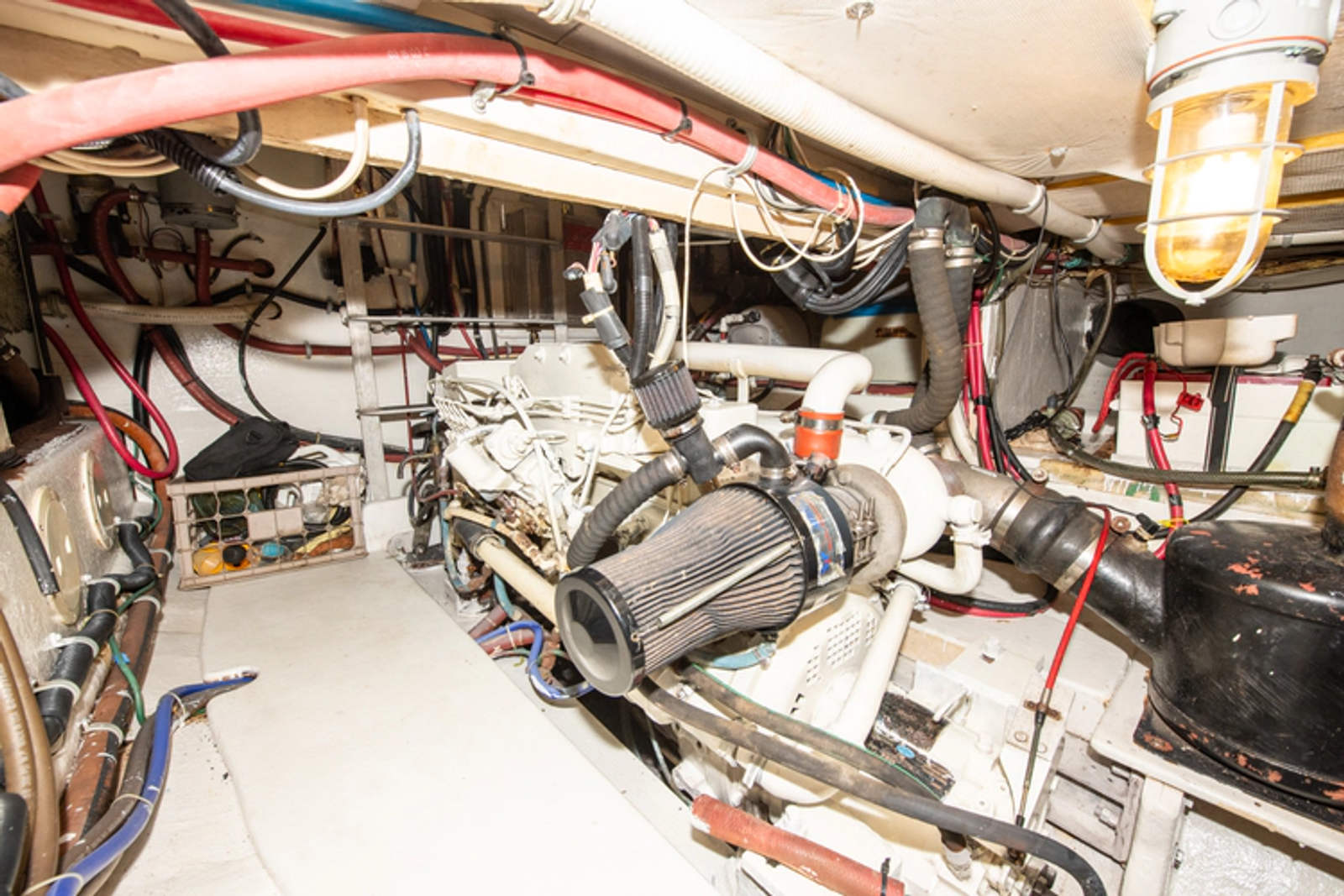

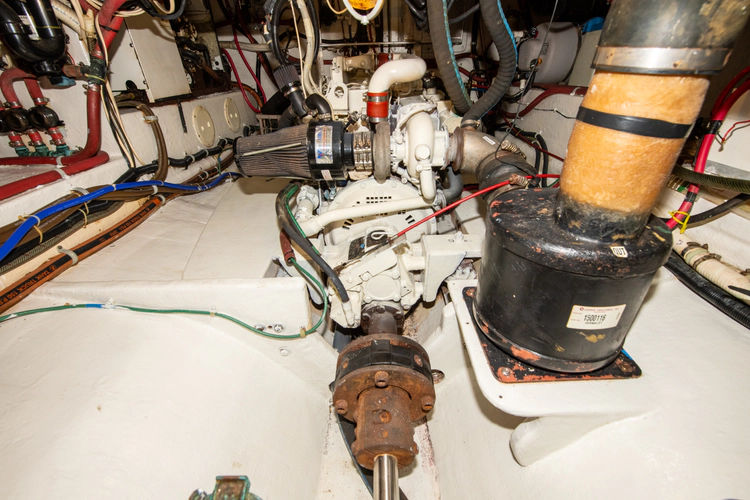

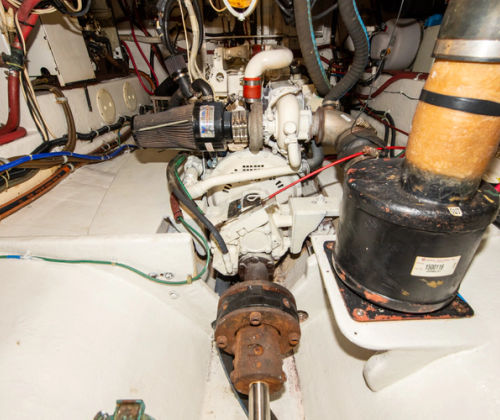

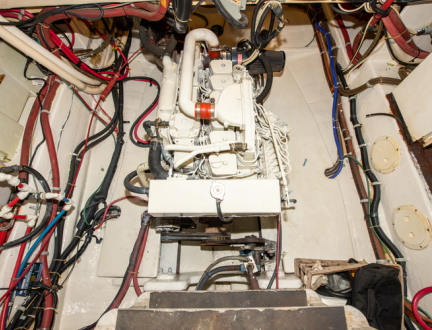

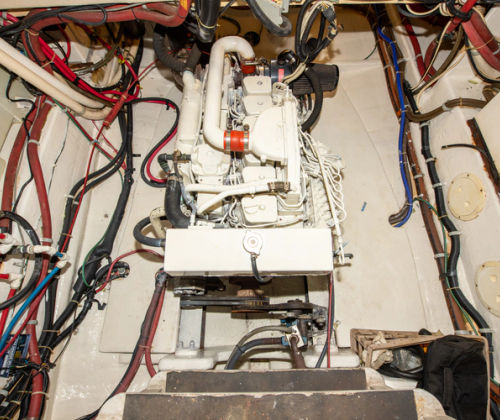

• Single diesel, commercial rated marine CUMMINS 5.9 lt turbo charged


• 2109 hrs.


• 260 hp with intermittent duty rating for 1500 hrs/yr running


• raw water strainer GROCO


• Oil Sump pump on engine


• Engine instrument panel and 12 volt Electric system

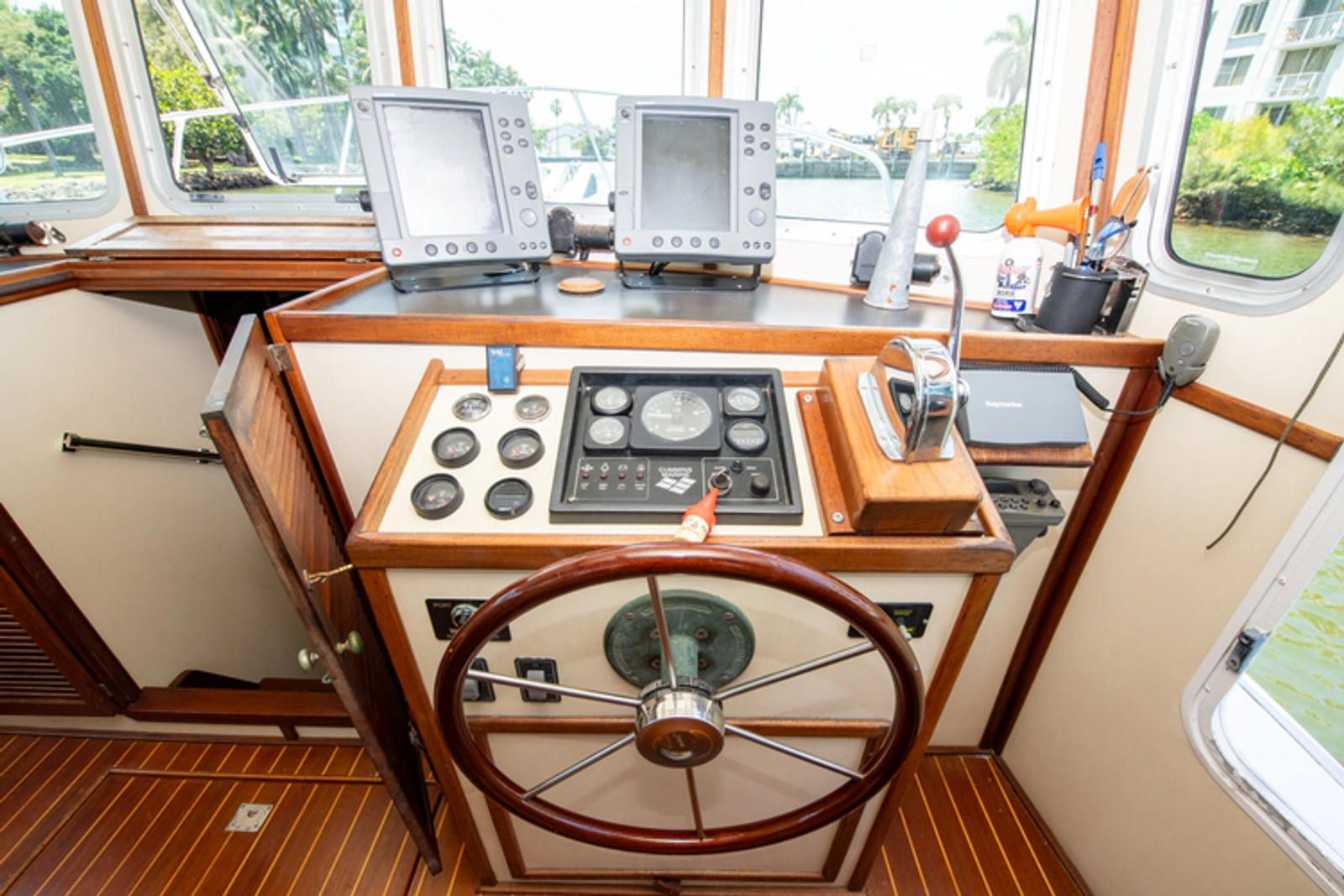

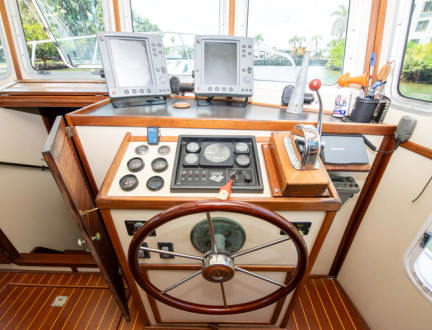

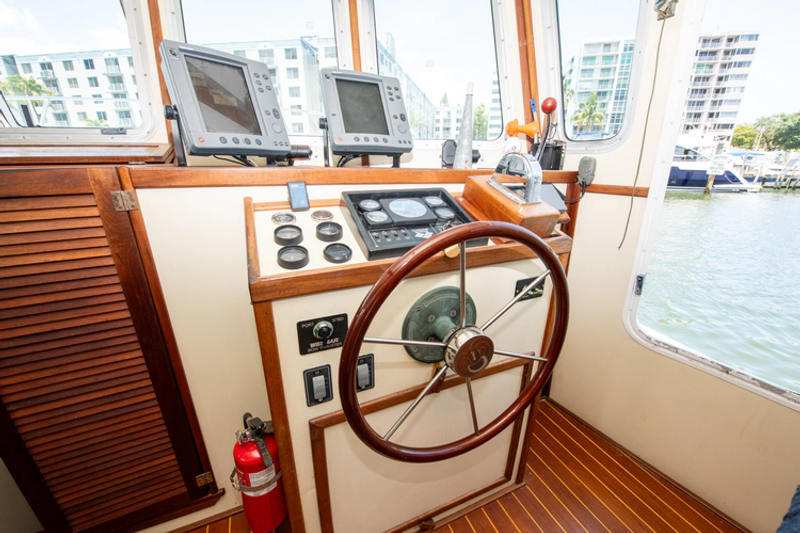

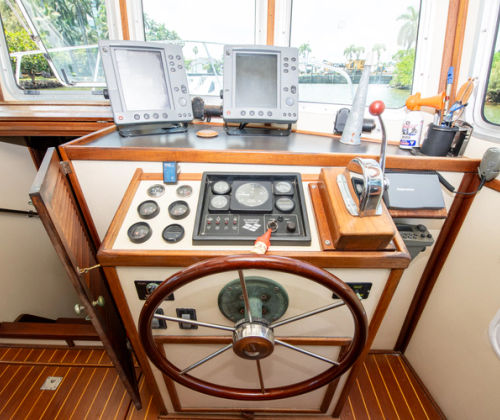

• Engine panel includes: Ignition key, Tachometer, Coolant temp gauge, Oil pressure, Voltmeter, Alarm test button, Panel light switch, Alarm buzzers for all above, Hour meter, High exhaust alarm and indicator, Water in fuel alarm.

FUEL SYSTEM

• Two 200 gal marine grade 50/52 Aluminum 3/16 thick


• Two SS 316 deck fills marked diesel with key y Dual Primary filter/separator with metal shields RACOR


• Fuel level sender with gauge in Wheelhouse WEEMA


• Fuel flow monitor with read out in the wheelhouse

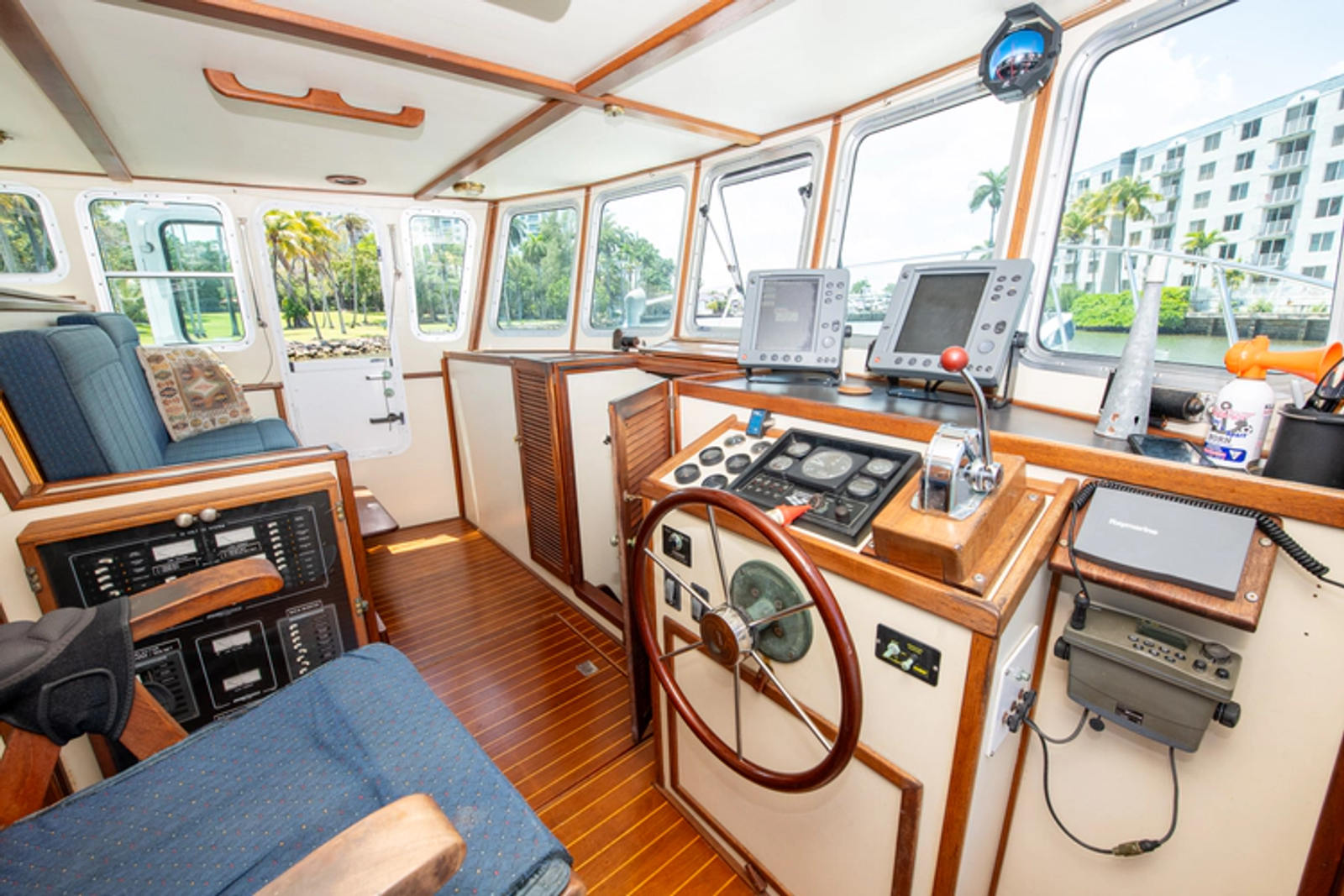

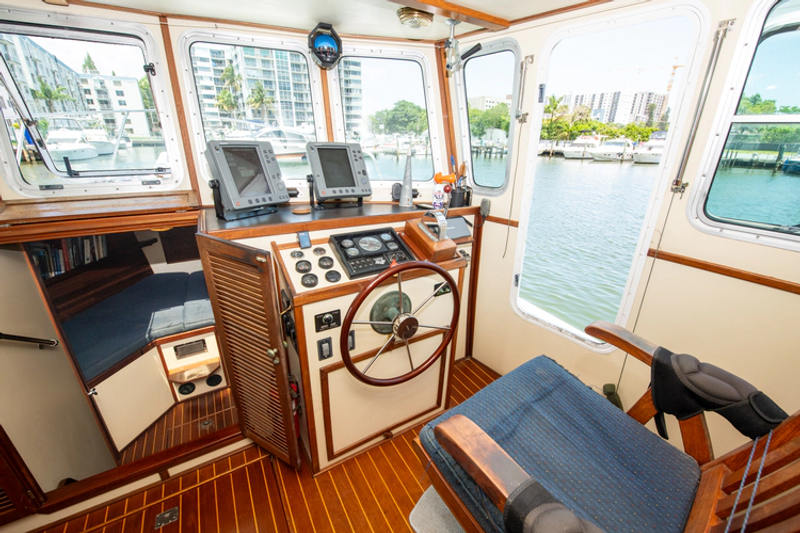

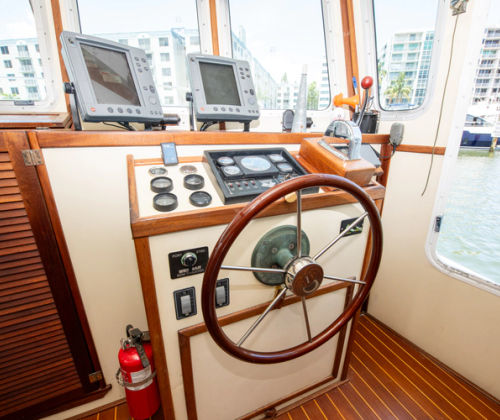

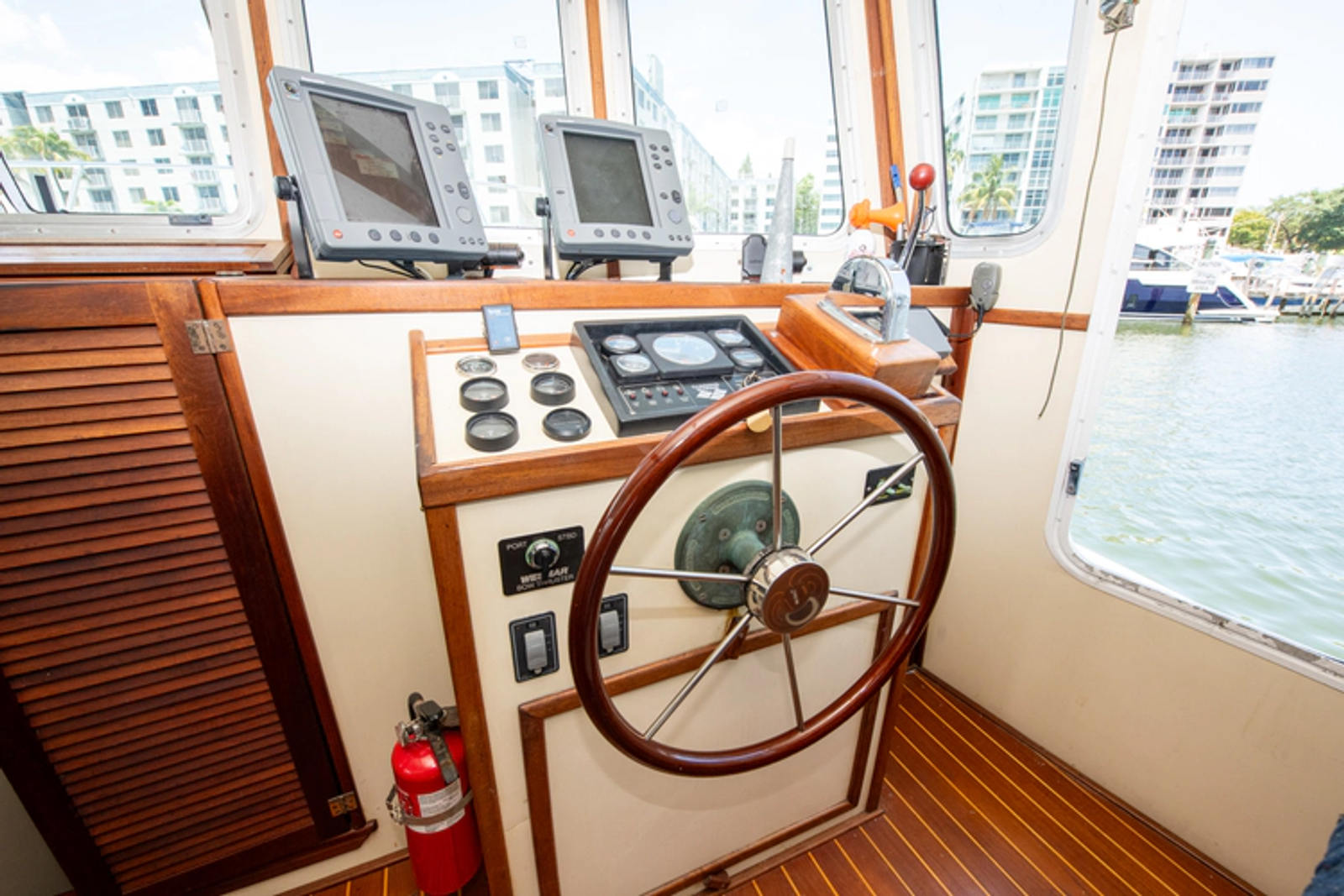

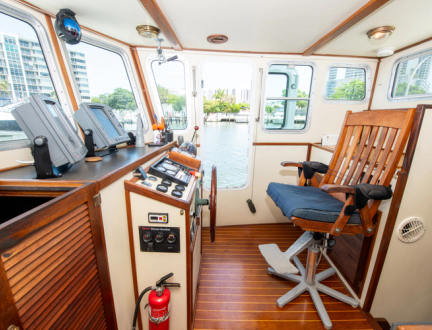

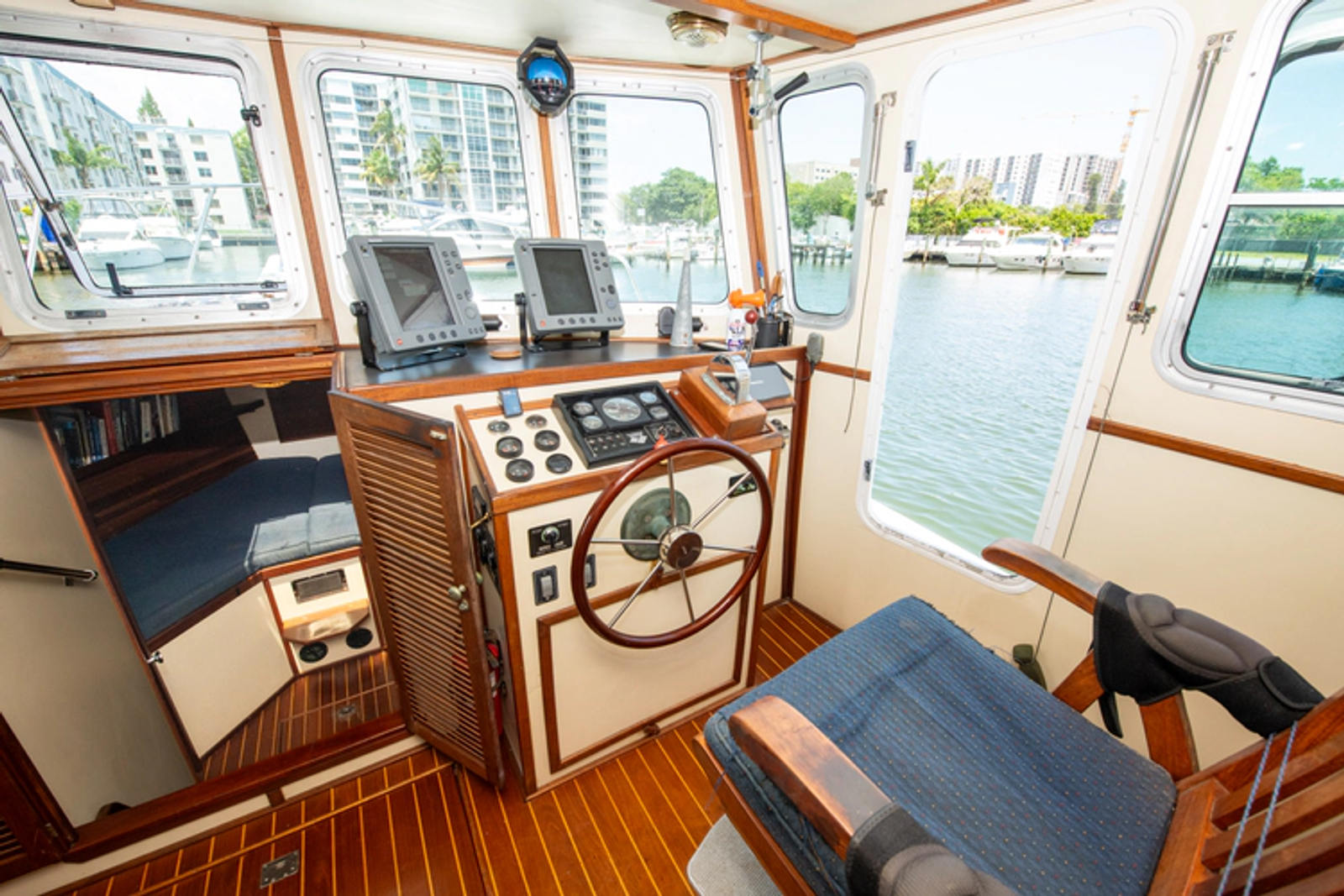

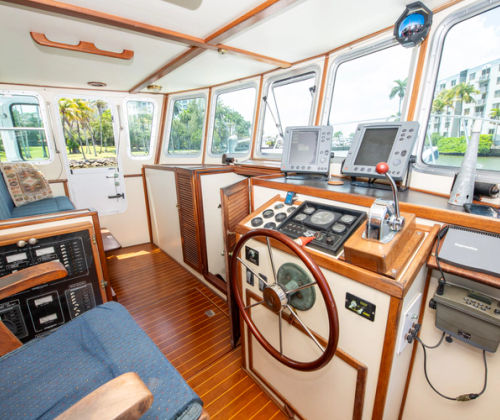

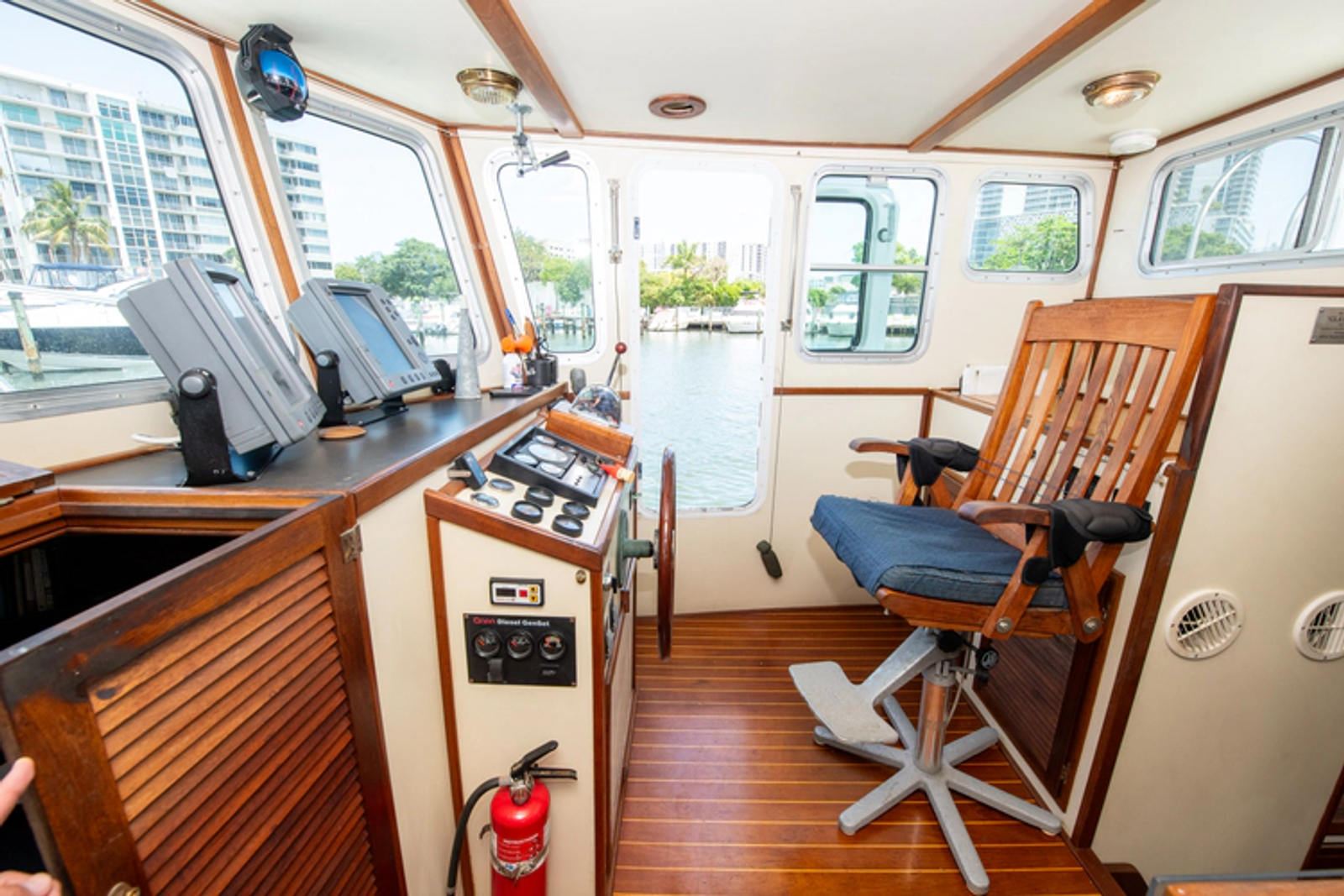

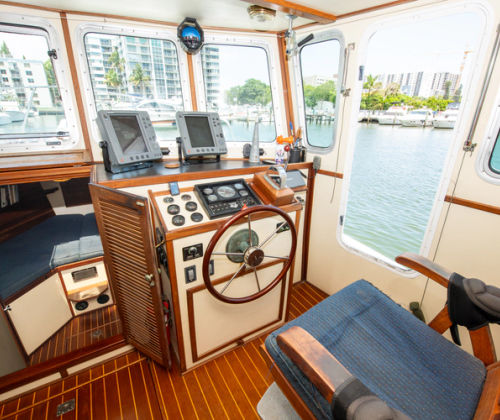

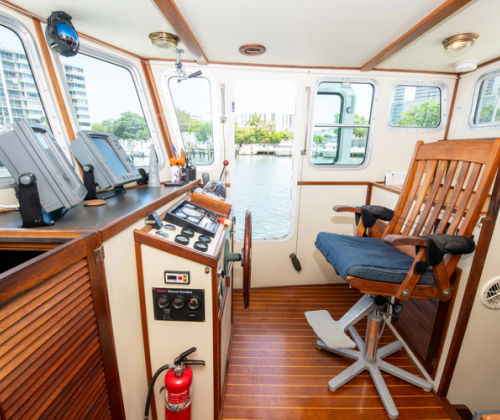

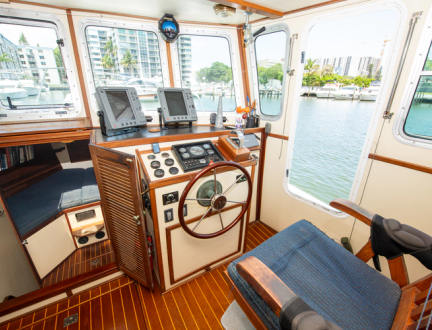

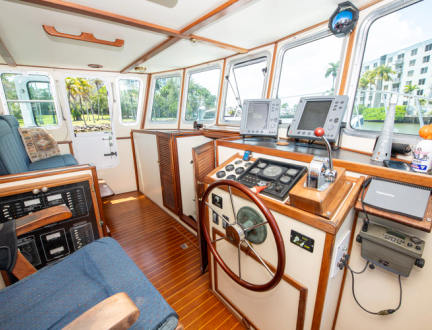

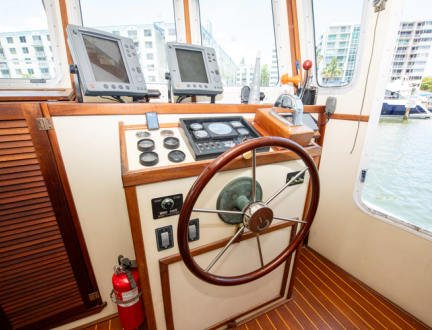

INSTRUMENTS AND ELECTRONICS

• Compass RITCHIE binnacle mount


• VHF Radio 25/1 watt UNIDEN


• VHF antenna 8 foot, SHAKESPEARE


• VHF antenna stainless steel ratchet mount


• Radar 1800-CP colour plotter, 24 mile, C-Map NT, 6.5" LCD Screen, JRC


• Radome scanner, 18 inch JRC A GPS 112 receiver, 12 satellites JRC


• FF50 colour fish finder/sounder, 50/200 kHz, 3000 feet, 6.5" colour TFT, alarms


• Bronze through hull transducer, 50/200 kHz, depth, speed, temp, JRC


• Autopilot COMNAV 1001


• Wind speed indicator in wheelhouse, digital

ELECTRIC SYSTEM

• Alternator for starting battery charging


• Alternator for house battery charging


• Combi Inverter/charger 2000 watt with remote LCD panel XANTRAX


• Four 120 volt electrical outlets with GFI


• One 12 volt plug socket wheelhouse

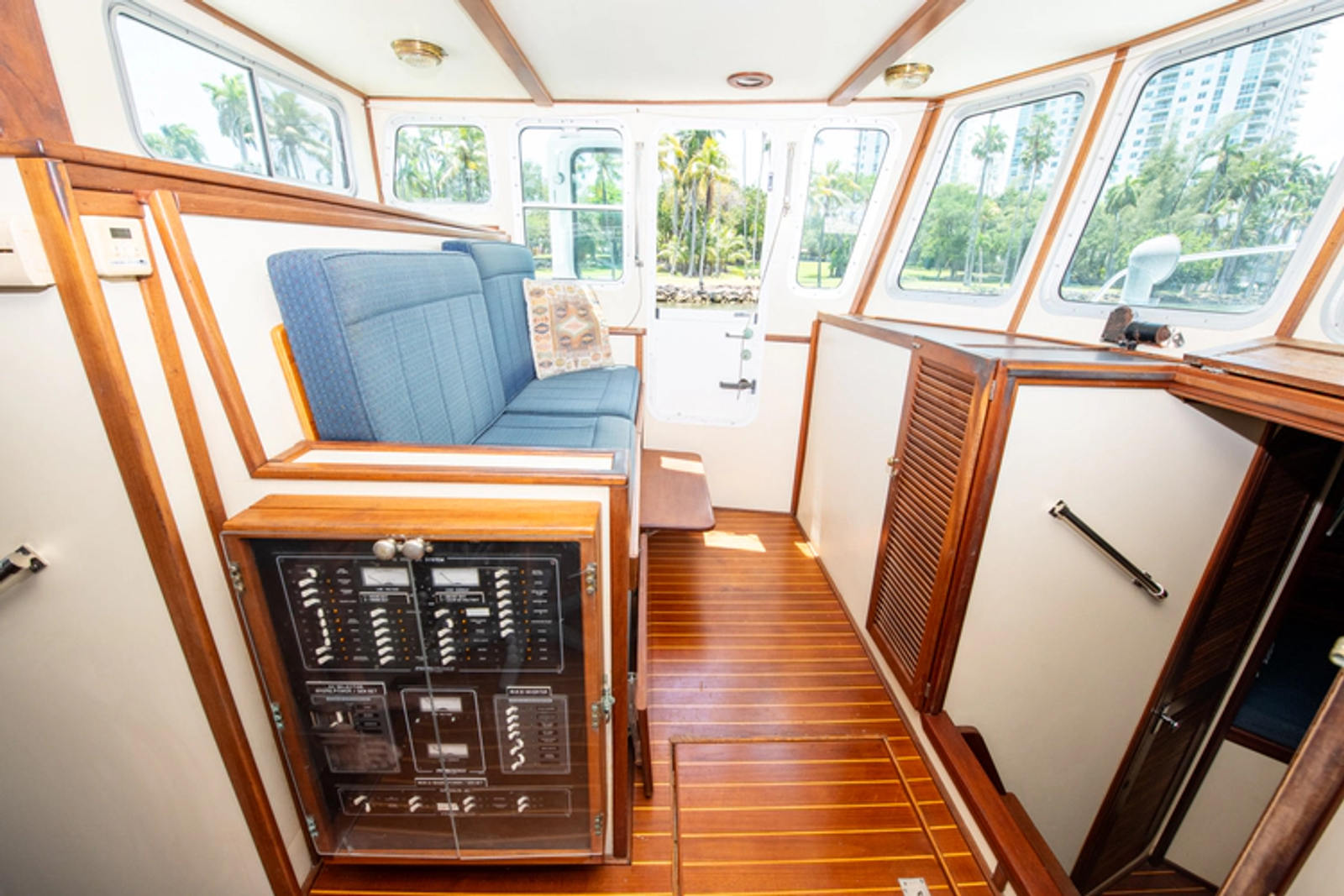

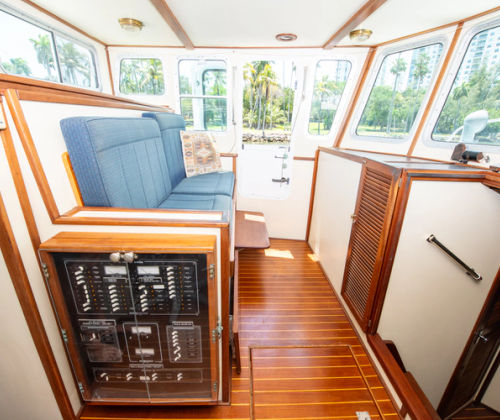

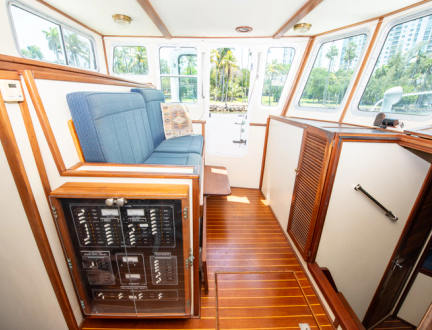

• 50 amp breaker AC/DC control panel with 20 circuits and breakers BLUE SEA


• 50ft 30amp shore power yellow vinyl jacket


• Navigation side lights in 112.5 degree light boxes, back painted black


• Anchor light on mast head PERK


• Steaming light 225 degree forward


• Search light 7 inch, wheelhouse deck mounted.


• Refrigerator 4.3 cubic ft 12v/110vac NOVA KOOL


• Freezer 2.5cubic Ft 12vdc/110 vac NOVA KOOL


• Engine room exhaust blower


• Eleven-gallon marine hot water heater 110vac and engine jacket heat


• pantographic wiper (3) on wheelhouse windows

PROPANE SYSTEM

• Two 20lb tanks - vented cockpit seat locker


• Pressure regulator


• Electric solenoid shut off


• LPG switch with red light at galley


• Ship propane stove three burners with oven


• Propane vapour detector with alarm

FRESH WATER SYSTEM

• 200 gallons of water in stainless steel tank/s


• C316 SS deck fills marked water with key


• Hot & cold taps for galley, head and shower

BLACK WATER SYSTEM

• Electric flush toilet yacht size bowel with standard household seat


• 50 gal holding tank of special plastic VETUS


• Sanitation grade discharge hose TRIDENT


• Deck discharge 316 SS marked waste with key


• Macerator pump JABSCO


• BW level indicator with gauge in wheelhouse

GREY WATER SYSTEM

• Galley sink, head sink and shower drain to holding tank 50 gal holding tank of special plastic VETUS Sanitation grade discharge hose TRIDENT


• Deck discharge marked waste with key


• Macerator pump for overboard discharge JABSCO


• GW level indicator with gauge in wheelhouse
